Products description

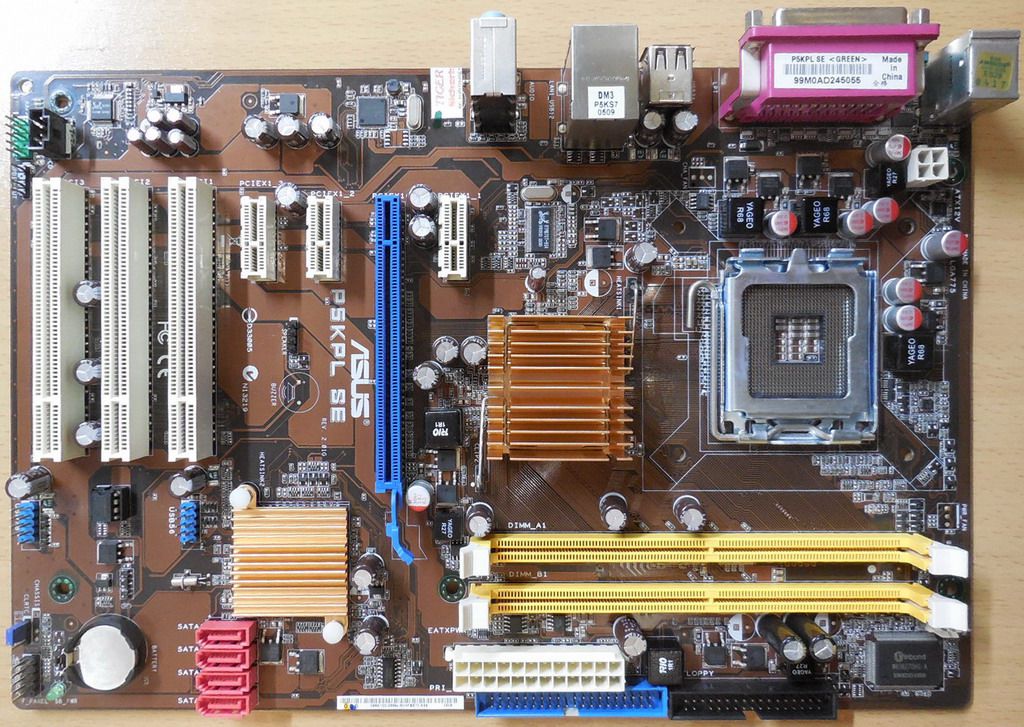

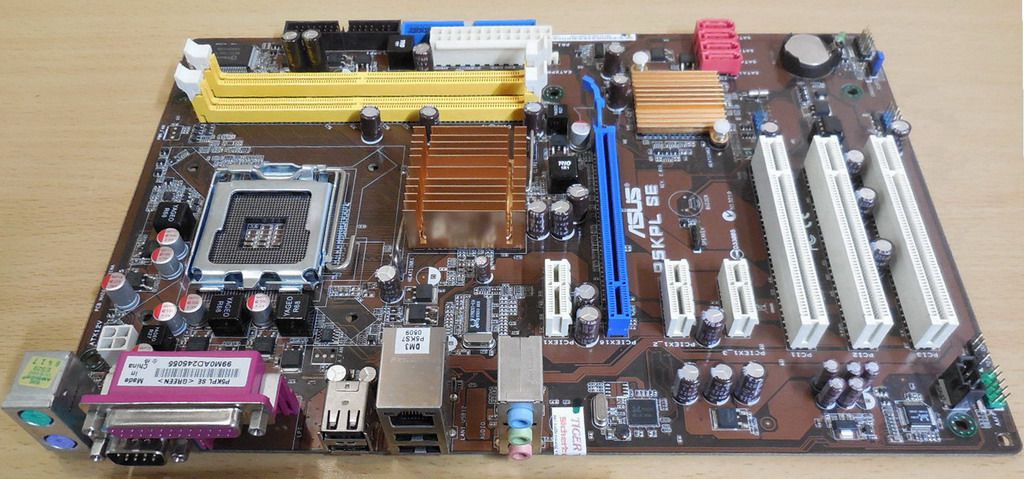

Asus P5KPL SE Rev 2.01G Mainboard Sockel 775 Intel G31 DDR2 PCIe SATA Audio
Technische Daten
CPU
Intel® Socket 775 Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron
Support Intel next generation 45nm multi-core CPU
Intel Hyper-Threading Technology ready
Support Intel E64MT Technology
Support Enhanced Intel SpeedStep Technology (EIST)
Chipsatz
Intel® G31 + Intel ICH7
Front Side Bus
1600(O.C)/1333/1066/800 MHz
Memory
2 x 240-pin DIMM, Max. 4 GB, DDR2 1066(O.C.)/800/667 Non-ECC, Un-buffered Memory
Dual Channel memory architecture
Expansion Slots
1 x PCIe x16
3 x PCIe x1
3 x PCI
Storage by ICH7 Southbridge
1 x UltraDMA 133/100
4 x SATA 3 GB/s
LAN
PCIe 10/100/1000 Gigabit Lan RTL 8111C
Audio
ALC662 High Definition Audio 6 -Channel CODEC
Audio Jack-detect Technology
USB
8 USB 2.0 ports
Overclocking Features
SFS (Stepless Frequency Selection) from 200MHz to 600MHz at 1MHz increment
ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS CrashFreeBIOS3; ASUS EZ Flash2; Q-Fan; ASUS MyLogo2; AI Net2
Back Panel I/O Ports
1 x Parallel
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x COM
1 x RJ45
4 x USB 2.0/1.1
6-channel Audio I/O
Internal I/O Connectors
Azalia High definition Analog Front panel Audio connector
System Panel connector
2 x USB 2.0 connector supports additional 4 USB 2.0 ports
CPU FAN connector
SPIDF Output connector
CD audio in connector
Speaker connector
24-pin EATX12V Power connector
4-pin ATX 12V Power connector
4 x SATA connectors
1 x IDE connector for up to 2 devices
1 x Floppy connector
BIOS
8 Mb Flash ROM
AMI BIOS, Special H/W write production, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0
Manageability
WOL by PME, WOR by PME, WOR by Ring
Form Factor
ATX Form Factor; 12" x 8" ( 30.5 cm x 20.3 cm )
Lieferumfang
Nur das Mainboard ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
