Products description

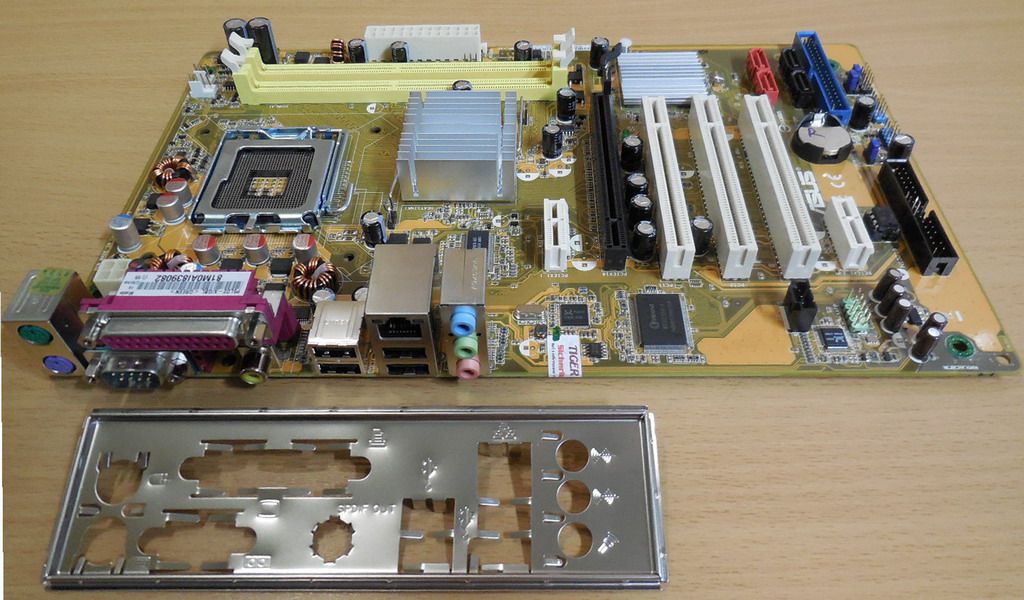

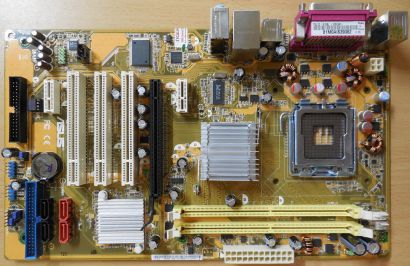

Asus P5LD2-X/GBL Rev 2.05G Mainboard NEU & OVP Sockel 775 PCIe DDR2 Audio Gigabit LAN
Technische Daten
CPU
Intel Socket 775 Core™2 Duo/Pentium® D/Pentium® 4/Celeron D Processors
Support Intel® 45nm CPU
Intel® Hyper-Threading Technology ready
Support Enhanced Intel SpeedStep Technology (EIST)
Chipsatz
Intel 945GC + Intel ICH7
Front Side Bus
1333/1066/800/533 MHz *1333 is OC speed
Memory
2 x 240-pin DIMM, Max. 4 GB, DDR2 667/533/400 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
2 x PCIe x1
3 x PCI
Storage
1 x UltraDMA 100/66/33
4 x Serial ATA 150/300
LAN
PCIe Gigabit LAN
Audio
ALC662 High Definition Audio 6 -Channel
S/PDIF out on back I/O port
Audio Jack-detect Technology
USB
8 x USB 2.0 ports
Special Features
ASUS MyLogo 2; ASUS EZ Flash 2; ASUS CrashFree BIOS 3; ASUS C.P.R.(CPU Parameter Recall); ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
6-Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x CPU Fan connector
2 x Chassis Fan connector
1 x 4-pin ATX 12V Power connector
Chassis Intrusion connector
CD audio in
24-pin EPS12V Power connector
4-pin internal Speaker connector
Azalia High definition Analog Front panel Audio connector
BIOS
8 Mb Flash ROM; Special H/W write protection; DMI 2.0; AMI BIOS; PnP; WfM 2.0; SM BIOS 2.0; ACPI 2.0
Manageability
WOL by PME,WOR by PME, WOR by Ring
O/S Compatibility
Windows Vista; Windows XP; Windows 2000
Accessories
User's manual; 1 x Floppy disk drive cable; 1 x SATA cable; 1 x SATA power cable; I/O Shield; 1 x UltraDMA 100/66 cable; Support CD (Drivers; ASUS PC Probe II; ASUS LiveUpdate Utility)
Form Factor
ATX Form Factor; 12 inch x7.2 inch (30.5 cm x 18.3 cm)

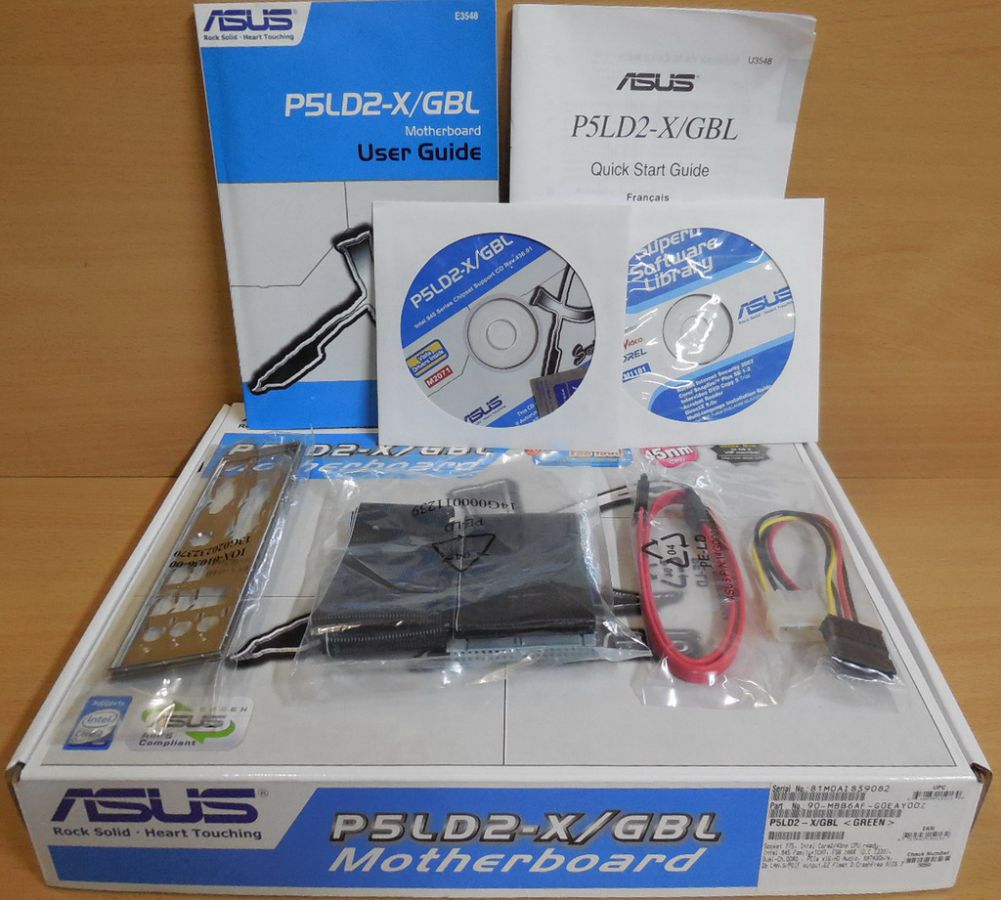

Lieferumfang
Mainboard mit Zubehör laut Handbuch * NEU & OVP *
Abbildung ähnlich
