Products description

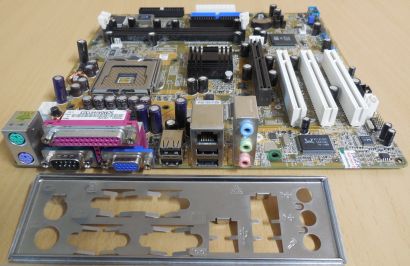

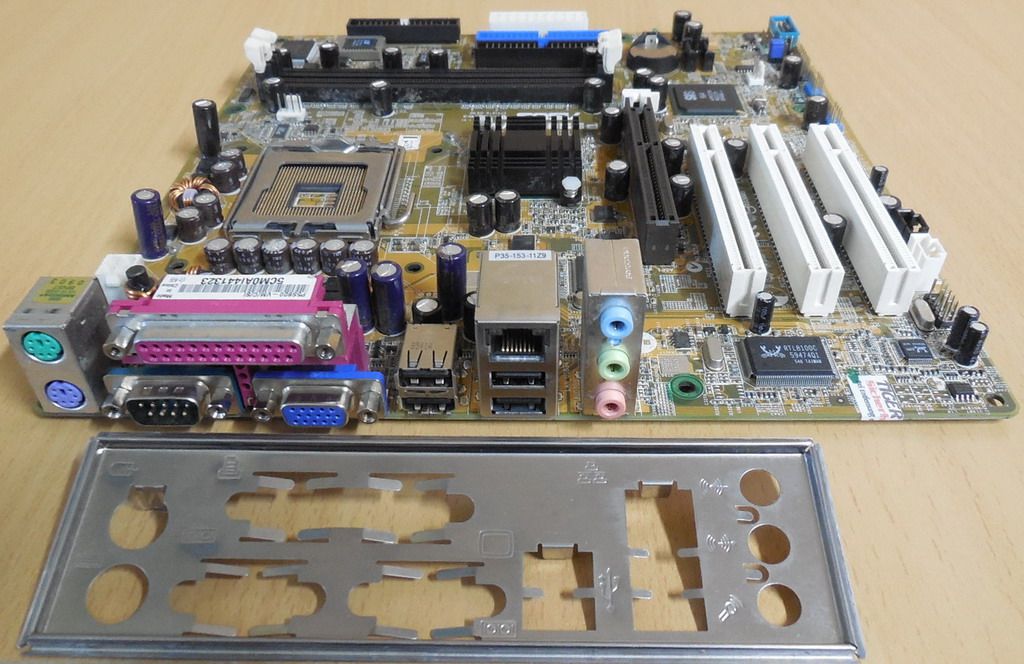

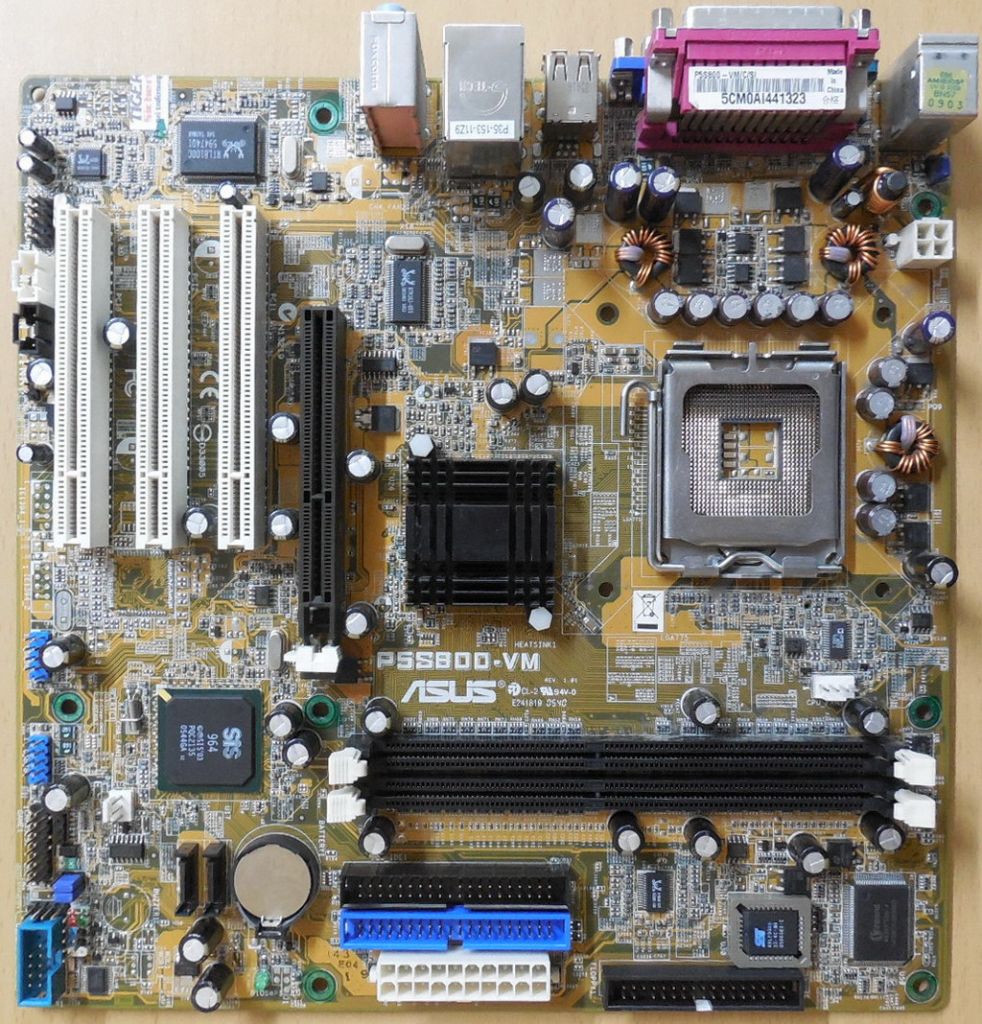

Asus P5S800-VM Rev 1.01 Mainboard + Blende Sockel 775 SATA AGP VGA LAN Audio
Technische Daten
CPU
LGA775 socket for Intel® Pentium® 4 / CeleronD processor
Compatible with the Intel® PCG 04A and 04B processors
Supports Intel® Hyper-Threading Technology
Chipset
SiS 661FX Northbridge + SiS 964 Southbridge
Front Side Bus
800/533 MHz
Memory
2 x 184-pin DIMM sockets support up to 2GB of unbufferred non-ECC 400/333/266 MHz DDR DIMMs
Expansion Slots
3 x PCI slots
1 x AGP 8x (1.5V only)
VGA
Integrated SIS Real 256E Graphics
Storage
2 x UltraDMA 133/100/66/33
2 x Serial ATA with RAID 0 and RAID 1 configuration
Audio
Realtek ALC655 6-Channel CODEC
S/PDIF out interface support
Universal Audio Jack (UAJ ®) Sensing Technology support
LAN
Realtek RTL8100C 10/100 Mbps Ethernet Controller
USB
Support up to 8 x USB 2.0 ports
Special Features
ASUS AI Audio, MyLogo 2, ASUS EZ Flash, ASUS CrashFree BIOS 2
Power Loss Restart
Instant Music Lite
Back Panel I/O Ports
1 x Parallel port
1 x VGA port
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x Serial port
1 x LAN (RJ-45) port
4 x USB 2.0/1.1 ports
Audio I/O ports
Internal I/O Connectors
2 x USB2.0 connectors support additional 4 USB 2.0 ports
1 x CPU Fan connector (4-pin)
1 x Chassis Fan connector (3-pin)
1 x Front Panel connector (10-pin panel for IDE LED, Power LED, Power Switch, Reset)
1 x S/PDIF Out connector
1 x 4-pin ATX 12V Power connector
1 x 20-pin ATX Power connector
1 x Speaker connector
1 x Front Audio Panel connector
1 x Game/MIDI port connector
1 x Power LED connetor
1 x Chassis Intrusion connector
1 x CD/AUX audio in
1 x COM2 connector
1 x CLRTC CMOS Jumper
1 x KBPWR1 Jumper
1 x Floppy FDD connector
2 x IDE connectors
2 x SATA connectors
BIOS
4 Mb Flash ROM, DMI 2.0, AMI BIOS, PnP, WfM 2.0, SM BIOS 2.3, ASUS C.P.R.(CPU Parameter Recall), ASUS EZ Flash, ASUS CrashFree BIOS 2
Industry standard
PCI 2.2, USB2.0
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, Chasis Intrusion
Form Factor
uATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
