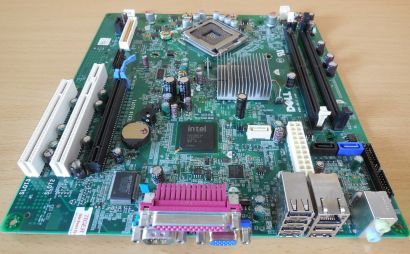

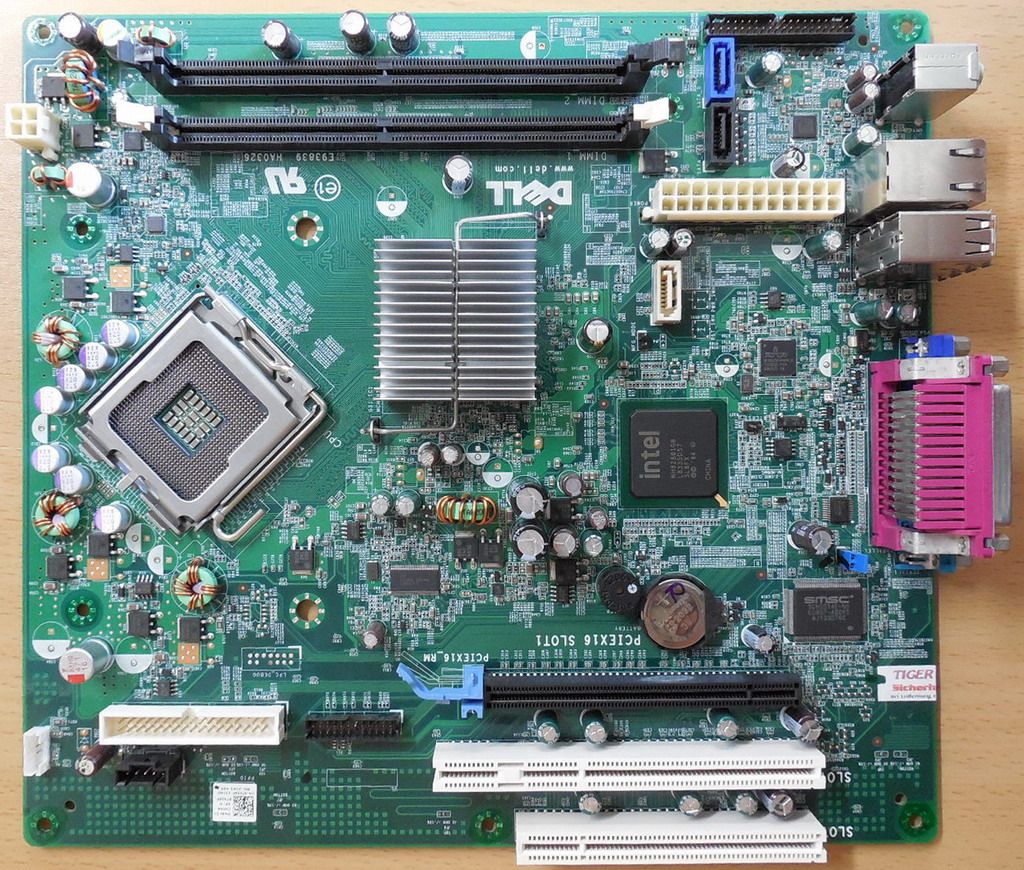

Dell Optiplex 360 Mainboard 0T656F Rev A02 Sockel 775 PCIe DDR2 Intel G31* m753

Dell Optiplex 360 Mainboard 0T656F Rev A02 Sockel 775 PCIe DDR2 Intel G31

Technische Daten

Hersteller:  Dell

Model: 0T656F oder T656F

Geeignet für: Dell OptiPlex 360 oder baugleich

Sockel:   Intel 775

FSB: 800 / 1066 / 1333 MHz

Prozessor:

Intel® Core 2 Duo with Intel, Enhanced Intel Speed Step Technology and Execute Disable Bit

Intel Core 2 Duo E8600 Processor (3.33GHz, 6MB L2 cache, 1333MHz FSB)

Intel Core 2 Duo E8500 Processor (3.16GHz, 6MB L2 cache, 1333MHz FSB)

Intel Core 2 Duo E8400 Processor (3.00GHz, 6MB L2 cache, 1333MHz FSB)

Intel Core 2 Duo E7600 Processor (3.06GHz, 3MB L2 cache, 1066MHz FSB)

Intel Core 2 Duo E7500 Processor (2.93GHz, 3MB L2 cache, 1066MHz FSB)

Intel Core 2 Duo E7400 Processor (2.80GHz, 3MB L2 cache, 1066MHz FSB)

Intel® Pentium dual core with Intel, Enhanced Intel Speed Step Technology and Execute Disable Bit

Intel Core 2 Duo E6300 Processor (2.8Hz, 2MB L2 cache, 1066MHz FSB)

Intel Core 2 Duo E5400 Processor (2.7GHz, 2MB L2 cache, 800MHz FSB)

Intel Core 2 Duo E5300 Processor (2.6Hz, 2MB L2 cache, 800MHz FSB)

Intel Core 2 Duo E5200 Processor (2.5GHz, 2MB L2 cache, 800MHz FSB)

Intel® Celeron dual core with Intel, Enhanced Intel Speed Step Technology and Execute Disable Bit

Intel Celeron Dual Core E1600 Processor (2.4GHz, 512K L2 cache, 800MHz FSB)

Intel Celeron Dual Core E1500 Processor (2.2GHz, 512K L2 cache, 800MHz FSB)

Intel Celeron Dual Core E1400 Processor (2.0GHz, 512K L2 cache, 800MHz FSB)

Intel® Celeron with Enhanced Execute Disable Bit

Intel Celeron 450 Processor (2.5GHz, 512K L2 cache, 800MHz FSB)

Intel Celeron 440 Processor (2.0GHz, 512K L2 cache, 800MHz FSB)

Chipset: Intel G31 + ICH7

VGA: Intel GMA 3100

Steckplätze: 2x PCI, 1x PCI-Express x16

RAM-Bänke: 2x DDR2 1.8V 800 MHz non-ECC, un-buffered memory (Max. 4GB)

Anschlüsse Extern:   6x USB2.0, 1x Gigabit LAN, 1x VGA, 1x  Seriell, 1x Parallel, Audio Anschlüsse 2x 3,5 mm Klinke

Anschlüsse Intern: 1x FDD Connector; 3x SATA II 3Gb/s; 1x Serial2 Connector; 1x Internal Speaker Connector, 1x Buzzer; 1x CPU FAN Connector; 1x PSWD Jumper; 1x MFG_Mode Jumper; 1x Front Panel Connector;

Sound:   ADI 1984A High Definition Audio

LAN: Broadcom BCM5784 Gigabit LAN (Transfererate: 10 / 100 / 1000 Mb/s)

Power Anschluss:   1x 24-pin, 1x 4-pin

Formfaktor:  Dell Optiplex 360 oder baugleich

Lieferumfang

Nur das Dell Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
