Dell Optiplex 745 Mainboard 0TY565 Rev A01 Sockel 775 PCIe DDR2 Intel Q965

Technische Daten

Hersteller       Dell

Model       0TY565 oder TY565 Rev A01

Geeignet für       Dell Optiplex 745 oder baugleich

Sockel       Intel 775

FSB       800 / 1066 MHz

Prozessor

Intel® Core™ 2 Duo 1066MHz FSB Socket T with Dual Core technology XD, EM64T, 2MB and up to 4MB L2 cache, EIST and VT (E6000 series)

Intel® Pentium® D 800MHz FSB Socket T with Dual Core technology XD, EM64T, 2x2MB L2 cache, EIST, and VT on 950/960 (900 series)

Intel® Pentium® D 800MHz FSB Socket T with Dual Core technology XD, EM64T, 2x1MB L2 cache (800 series)

Intel® Pentium® 4 800MHz FSB Socket T with HT, XD, EM64T, and 1MB L2 cache (500 series)

Intel® Celeron® D 533 MHz FSB Socket T with XD and EM64T (300 series)

Chipset       Intel® Q965 (ICH8) Express Chipset

Memory       4 x DDR2 1.8V 533/667/800 MHz non-ECC, un-buffered memory (Max. 8GB)

Steckplätze       2x PCI, 1x PCI-Express x1, 1x PCI-Express x16

VGA       Intel® Graphics Media Accelerator 3000. Uses up to 256MB shared with system memory.

Audio       ADI 1983 High Definition Audio; 20-bit analog-to-digital; 20-bit digital-to-analog

LAN       Broadcom® 5754 Gigabit Ethernet LAN solution 10/100/1000 Ethernet with Remote Wake Up and PXE support

Anschlüsse Intern

4 x SATA II 3Gb/s Connectors

1 x Floppy Connector

1 x Serial2 Port Connector

1 x Internal Speaker Connector

1 x Buzzer

1 x Intruder Header

1 x Internal USB Header

1 x Dell spezifisch 5-Pin CPU FAN Connector

1 x PSWD Jumper

1 x RTCRST CMOS Jumper

1 x Front Panel Connector

1 x 24-pin Mainboard Power Connector

1 x 4-pin 12V CPU Power Connector

Anschlüsse Extern       6 x USB2.0, 1 x RJ-45 LAN, 1 x VGA, 1 x Seriell (COM); 1 x Parallel, Audio Anschlüsse 2x 3,5 mm Klinke

Formfaktor       Dell Optiplex 745 MT

Lieferumfang

Nur das Dell Mainboard * ohne weiteres Zubehör * gebraucht *

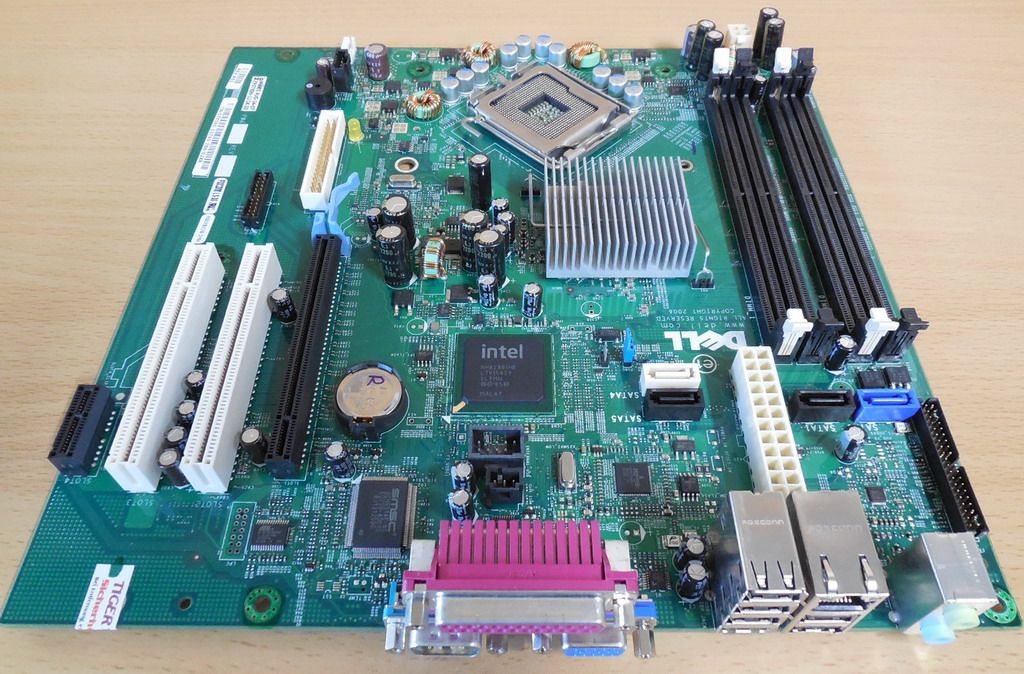

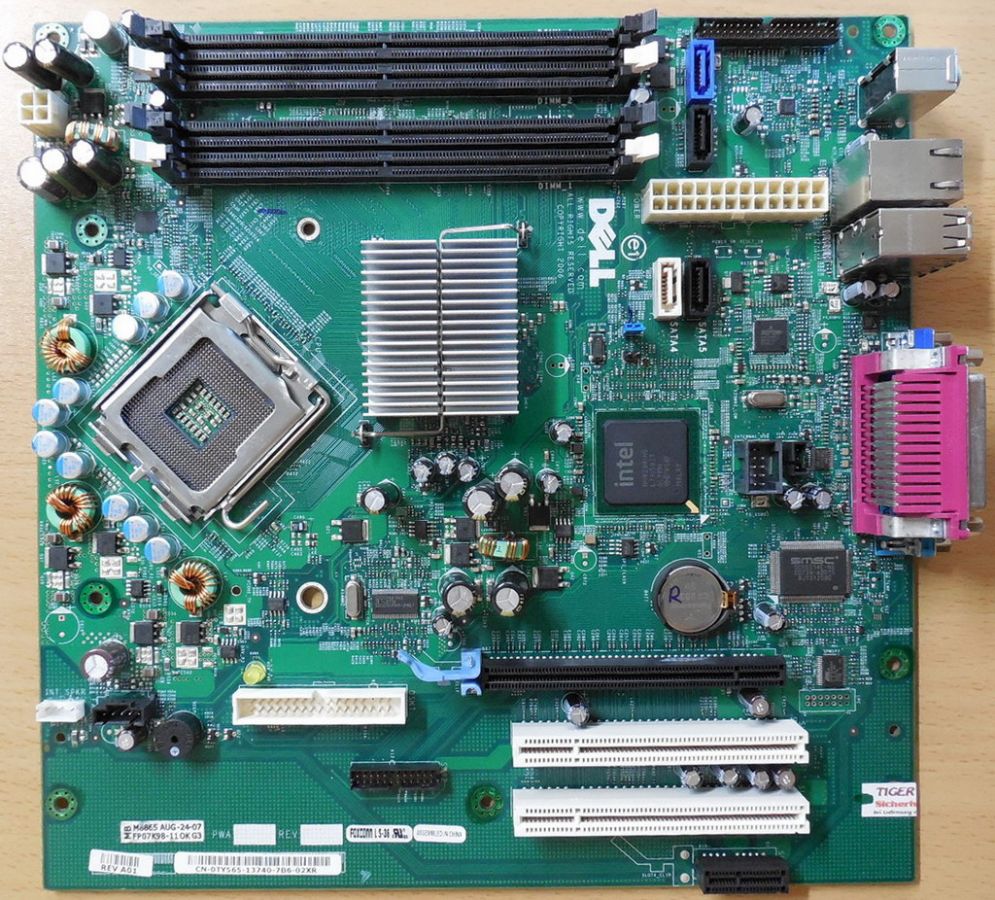

Abbildung ähnlich
