FSC D2156-A11 GS 5 Mainboard + Blende FSB1066 PCIe

Products description

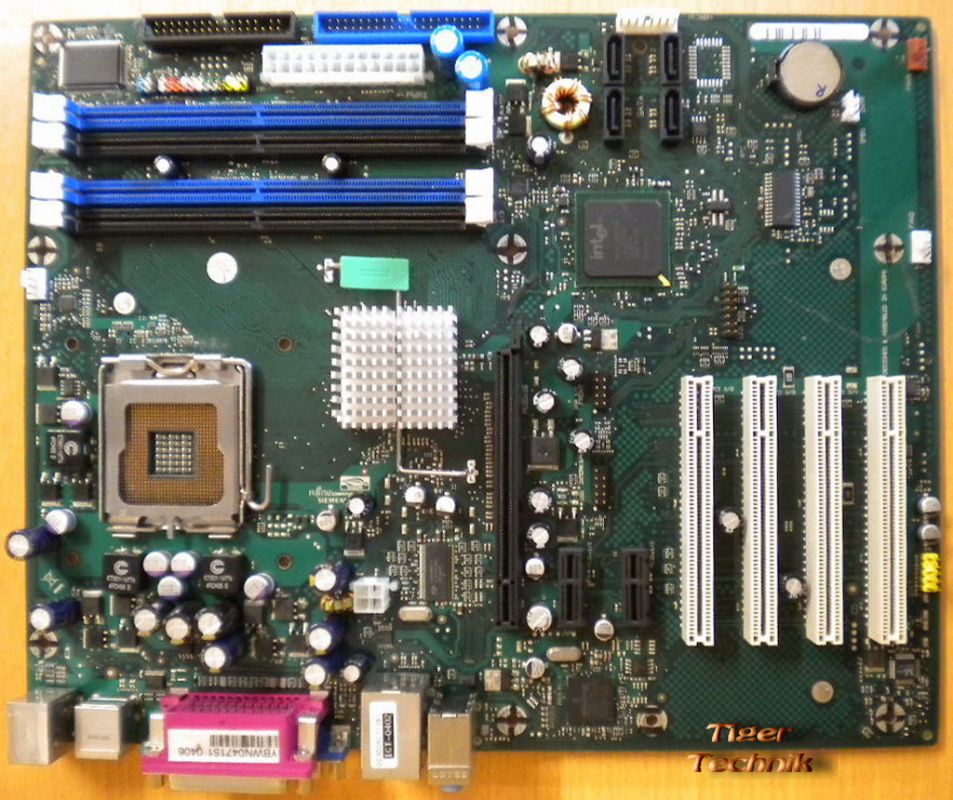

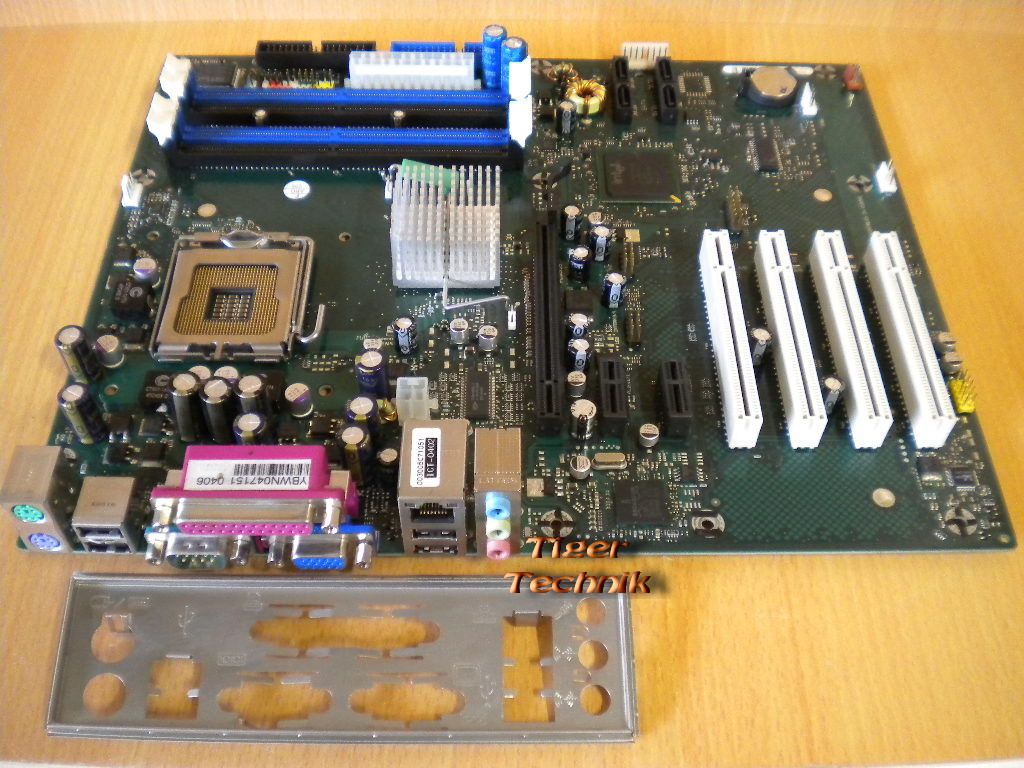

FSC D2156-A11 GS 5 Mainboard + Blende

Technische Daten

Processors

Intel® Pentium® D Processors, LGA775, 1066/ 800/ 533 MHz FSB,

Intel® Pentium® 4 Processors, LGA775, 1066/ 800/ 533 MHz FSB,

Intel® Celeron® D Processors, LGA775, 533 MHz FSB

Support for Hyper-Threading Technology

Compatible with Intel® 05B and 05A processors

(For details on processors supported, please refer to our website)

Chipset Intel® 945G

Board Size ATX: 12“ x 9.6“ (304.8 x 243.8 mm)

Buzzer / int. Speaker Support nein/ja

FireWire™ / USB 2.0 nein/ja

FAN monitored PSU**/CPU/AUX1/AUX2/AUX3 ja/ja/ja/ja/ja

FAN controlled PSU**/CPU/AUX1/AUX2/AUX3 ja/ja/ja/ja/ja

TEMP monitored CPU/ONB1/ONB2/HDD ja/ja/ja/ja

Internal Connectors

DIMM Sockets (DDR2 667 SDRAM) 4 DIMM Sockets (1,8V)

256 MB - 4 GB, Single or Dual Channel, DDR2 667/533/400 SDRAM, unbuffered, no ECC

(For details on recommended RAM, please refer to our website)

PCI Express x16 1

PCI Slots (32Bit, 33 MHz, 5 V and 3.3 V) PCI Rev. 2.3 4

PCI Express x1 2

Frontpanel Audio (9 Pin, Azalia Pinning) 1

USB * (2.0, ~480 MB/s) 4

FAN PSU**/CPU/AUX1/AUX2/AUX2 1 / 1 / 1 / 1 / 1

Intrusion * (Case Open) 1

Power BTX(ATX supported) / ATX12V / AGP Pro 1 / 1 / -

External Connectors

VGA 1

Audio Mic. In / Line in / Line out 1 / 1 / 1

LAN (RJ-45) 1

PS/2 Mouse / Keyboard 1 / 1

USB (2.0, ~480MB/s) 4

Serial (RS232, FIFO, 16550 compatible) 1

Parallel (EPP/ECP) 1

* for use with internal devices or optional Front- or Rearpanel

** not supported by standard Power Supplies

Graphics

Intel® GMA950 Graphics Controller, 333 MHz core frequency, 256-bit 2-D and 32-bit 3-D engine, Motion video acceleration, up to 2048 x 1536 at 75 Hz refresh, Integrated 24-bit 400 MHz RAMDAC, Dynamic Video Memory Technology, upgradeable with PCI Express x16 Graphics Card or ADD2 Cards to support digital displays or TV Out, DDC 2B Support for Monitor Detection

Audio

Realtek ALC260 (HD Audio), HW 3D Stereo Enhancement, SW Wavetable Synthesis Support

LAN

Broadcom BCM5751 controller with 10/100/1000 Mbit/s via PCI Express, Alert Standard Format (ASF), Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, bootix® PXE Support

IDE

1 ATA 100 Interface, up to 2 Drives,

4 Serial ATA II 300 Interfaces (up to 3 GBit), up to 4 Drives

Power Specification

BTX12V (24 Pin) or ATX12V (20 Pin) Power Supply required

Support for Soft-Off Power Supplies

5V and 3.3V Supply Voltage on PCI Slots (PCI Rev. 2.3)

3.3 V Auxiliary Supply Voltage on PCI Slots (Wake-Up Function)

On board CPU Voltage Regulator, 5V / 2A Auxiliary Power required for USB Wake-Up from Save-to-RAM, Save-to-Disk

BIOS

Phoenix cME FirstBIOS Desktop Pro Version V5.00 modified and adapted by Fujitsu Siemens Computers; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update via disk (stable user settings), Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCI Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3 (Save-to-RAM), ACPI S4 (Save-to-Disk), Wake on time from S5

Security Features

Recovery BIOS, System and BIOS Password, Boot and/or Write Protection for Floppy Disk Drive, Boot Sequence Control for each Floppy and IDE Drive, Serial and Parallel Port Access Protection, Boot Sector Virus Warning, Write Protection for Flash BIOS

Special Features

Silent Fan

Independent temperature related processor and fan supervision and control

System Guard

View and adjust Silent Fan

Silent Drives

Noise reduction for optical and hard disk drives

Safe Standby

Prevents data loss in S3 (save-to-RAM)

Recovery BIOS

Restores a corrupted BIOS

Desk Update
