Products description

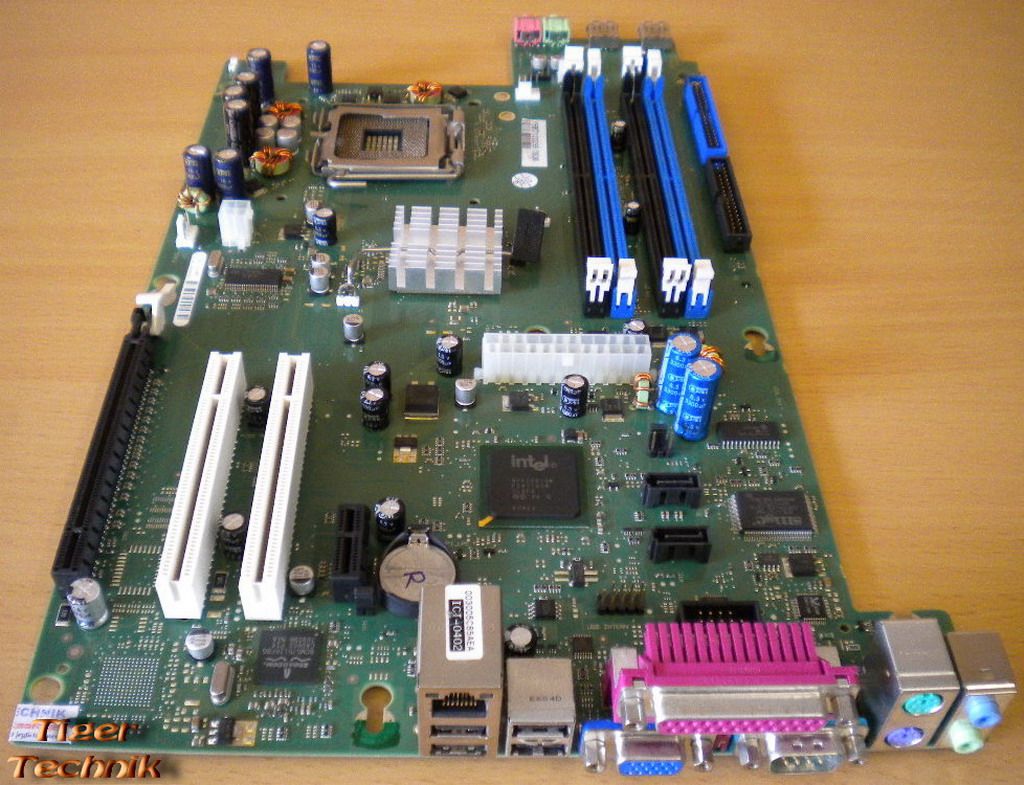

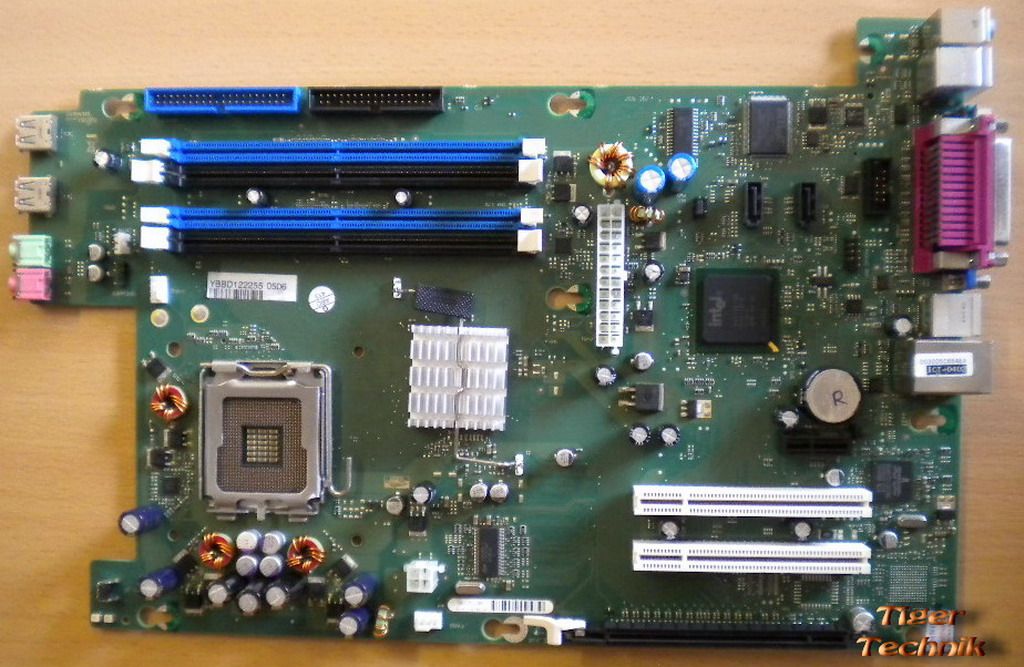

FSC D2164-A11 GS 5 Mainboard
z.B. für Esprimo E5905 oder baugleich
Technische Daten
Chipset Intel® 945G
Board size Proprietary
VGA ja
DDR2 400/DDR2 533/DDR2 667 Steckplätze 4
Audio/6-channel/S/PDIF ja/nein/nein
Buzzer/int. Speaker Support nein/ja
LAN 1 Gbit/100 Mbit/10 Mbit/Broadcom/Intel ja/ja/ja/ja/nein
LAN ASF/AoL/WoL/Boot ja/nein/ja/ja
Serial ATA2/ATA/RAID ja/ja/nein
FireWireTM/USB 2.0 nein/ja
FAN monitored PSU**/CPU(FAN1)/AUX1(FAN2)/AUX2(FAN3) ja/ja/ja/nein
FAN controlled PSU**/CPU(FAN1)/AUX1(FAN2)/AUX2(FAN3) ja/ja/ja/nein
TEMP monitored CPU/ONB1/ONB2/HDD ja/ja/ja/ja
SmartCard SystemLock (USB/serial) ja/nein
FSC Keyboard Power Button Support ja
** not supported by standard Power Supplies
Special Features
Green Edition
Halogen-free and lead-reduced product
Silent Fan
Independent temperature related processor and fan supervision and control
System Guard
View and adjust Silent Fan
Silent Drives
Noise reduction for optical and hard disk drives
Safe Standby
Prevents data loss in S3 (Save-to-RAM)
Recovery BIOS
Restores a disrupted BIOS
Desk Update
Simple driver update with Drivers&Utilities CD
Multi Boot
Comfortable boot from any boot device
HDD Password
Access protection for ATA5/ATAPI5 hard disk drives
USB Security
Access protection with Memory Bird from Fujitsu Siemens Computers
Logo boot
Intel On Screen Branding
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
