Products description

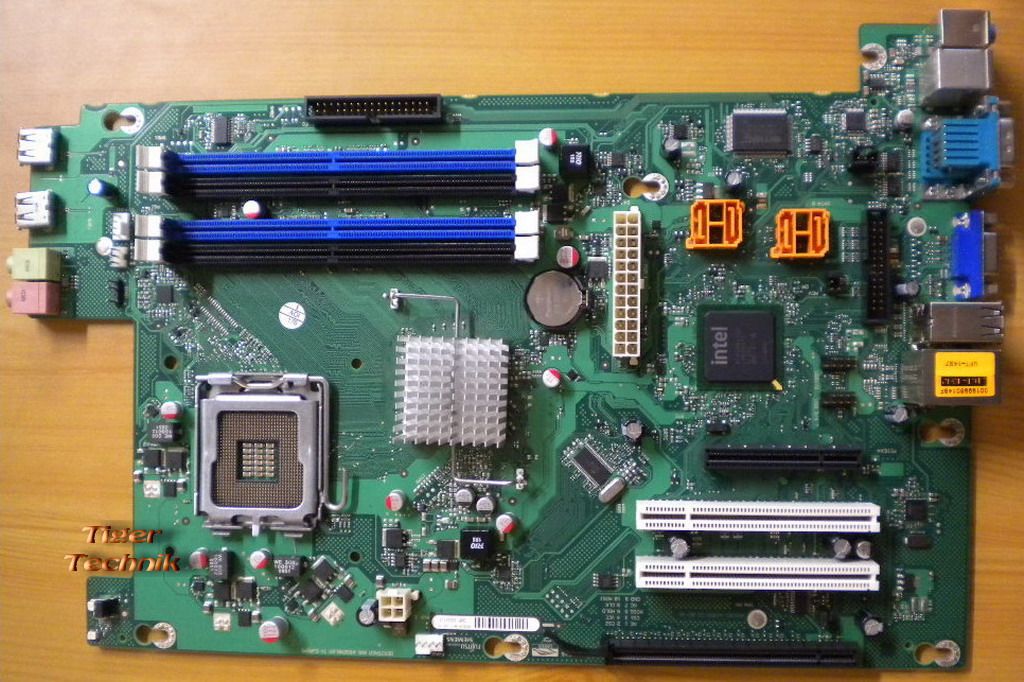

FSC D2828-A11 GS 3 Mainboard
z.B. für Esprimo E7935 oder baugleich
Technische Daten
Chipset Intel® iQ45
Board size SFF
VGA ja
DDR2 667/DDR2 800 Steckplätze 4 (max. 16GB)
Audio/8-channel/S/PDIF ja/nein/ja
Buzzer/int. Speaker Support nein/ja
LAN 1 Gbit/100 Mbit/10 Mbit ja/ja/ja
LAN ASF/AoL/WoL/Boot/iAMT ja/nein/ja/ja/ja
Serial ATA2/ATA/RAID ja/nein/ja
FireWireTM/USB 2.0 nein/ja
FAN monitored PSU*/CPU(FAN1)/System(FAN2) ja/ja/ja
FAN controlled PSU*/CPU(FAN1)/System(FAN2) ja/ja/ja
TEMP monitored CPU/ONB1/ONB2/HDD ja/ja/ja/nein
SmartCard SystemLock (USB/serial) ja/nein
FSC Keyboard Power Button Support ja
* not supported by standard Power Supplies
Special Features
Green Edition
Halogen-free and lead-reduced product
Silent Fan
Independent temperature related processor and fan supervision and control
System Guard
View and adjust Silent Fan
Silent Drives
Noise reduction for optical and hard disk drives
Safe Standby
Prevents data loss in S3 (Save-to-RAM)
Recovery BIOS
Restores a disrupted BIOS
Desk Update
Simple driver update with Drivers&Utilities CD
Multi Boot
Comfortable boot from any boot device
HDD Password
Access protection for ATA5/ATAPI5 hard disk drives
Logo boot
Intel On Screen Branding
Lieferumfang

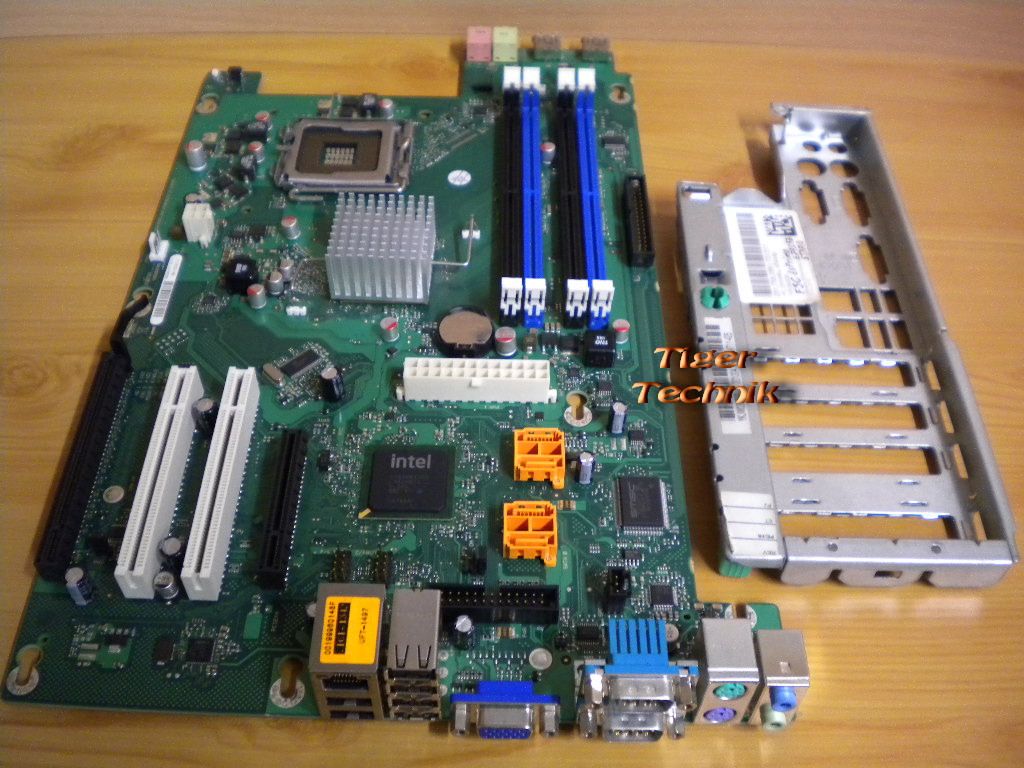

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
