Products description

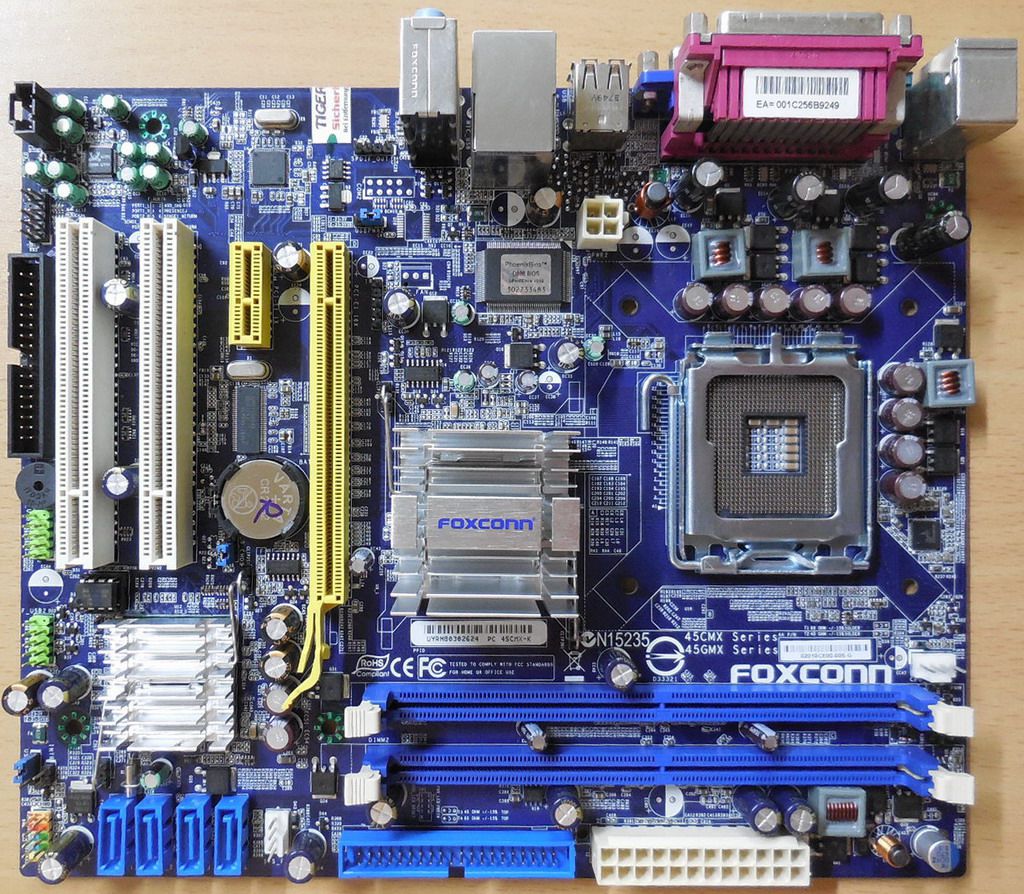

Foxconn 45CMX-K Rev 1.0 Mainboard + Blende Sockel 775 DDR2 PCIe GbE LAN VGA
Technische Daten
CPU
Support LGA775 socket Intel® CoreTM 2 Duo / Pentium® 4 Extreme Edition / Pentium® 4 / Pentium® D / Celeron® D / Celeron® processors
Front Side Bus
1333(Overclock*)/1066/800/533MHz FSB
Chipset
Intel® 945GC/945G Chipset (North Bridge) + Intel® ICH7 (South Bridge)
Memory
2 x 240-pin DDR2 DIMM sockets
Support up to 4GB of system memory
Dual channel DDR2 667/533/400MHz architecture
Graphics
Integrated Intel GMA 950 Graphics
Audio
Realtek ALC662 6-channel High Definition Audio chip
2/4/5.1-channel
Support for S/PDIF out; Jack-Sensing function
LAN
Realtek RTL8111B 10/100/1000Mb/s Gigabit Ethernet LAN
Expansion Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
Storage
4 x SATA connectors; 300MB/s data transfer rate
Support hot plug and NCQ (Native Command Queuing)
1 x IDE UltraDMA 133/100/66 connector for up to 2 IDE devices
USB
Support up to 8 x USB 2.0 ports (4 rear panel ports, 2 onboard USB headers supporting 4 extra ports)
Support USB 2.0 protocol up to 480Mb/s
Support hot plug
Internal Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x IDE connector
4 x SATA connectors
1 x Floppy Disk Drive connector
2 x USB 2.0 connectors (supporting 4 x USB devices)
1 x CPU Fan header (4-pin)
1 x System Fan header (4-pin)
1 x Front Panel connector
1 x CD_IN connector
1 x Buzzer
1 x Front Audio connector
1 x IrDA connector
1 x Chassis Intrusion alarm header (INTR)
1 x S/PDIF_OUT Connector
1 x CMOS Jumper
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x Serial Port
1 x Parallel port
1 x VGA port
4 x USB 2.0 ports
1 x RJ-45 LAN port
6-channel Audio ports
Hardware Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
System voltage warning
CPU/System overheating shutdown
CPU/System fan speed control
PCI Express x1
Support 250MB/s (500MB/s concurrent) bandwidth; Low power consumption and power management features
PCI Express x16
Support 4GB/s (8GB/s concurrent) bandwidth; Low power consumption and power management features
Green Function
Support ACPI (Advanced Confguration and Power Interface)
Support S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4 (suspend to disk), and S5 (soft - off)
Form Factor
Micro ATX Form Factor, 9.6 inches x 8.0 inches (24.4cm x 20.3cm)
Lieferumfang

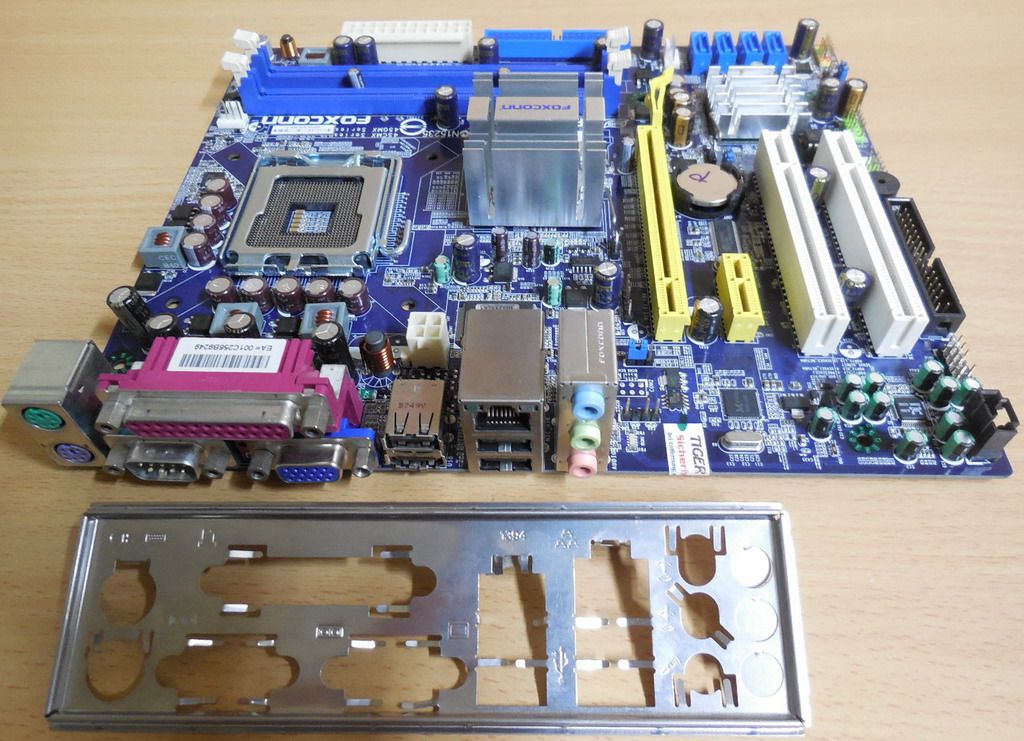

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
