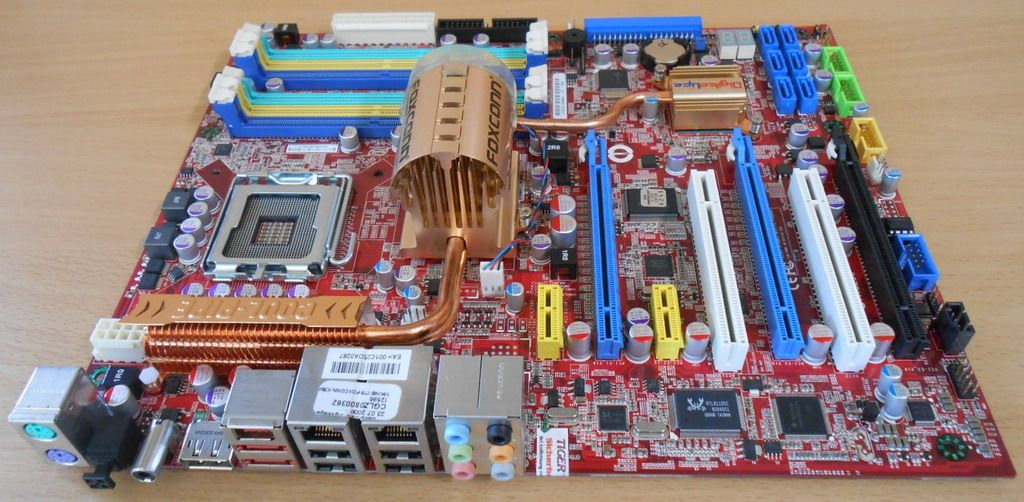

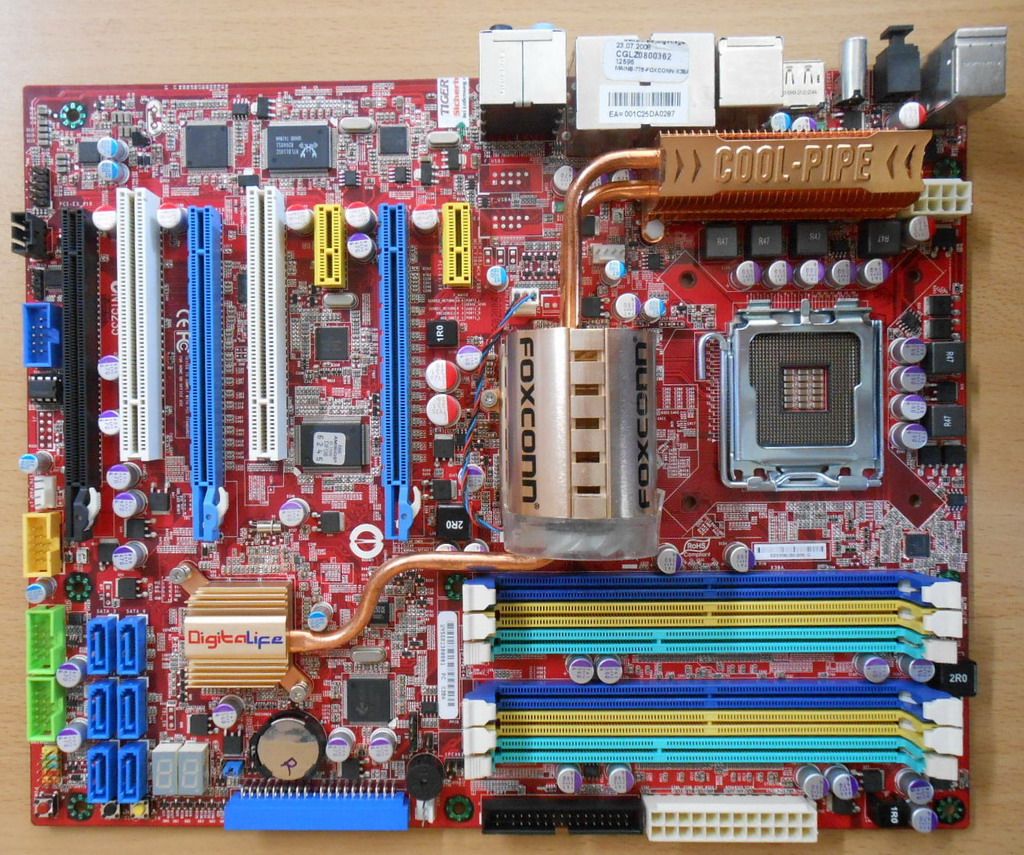

Foxconn X38A Mainboard Sockel 775
Intel X38 DDR2 DDR3 PCIe Dual GBLAN RAID
Technische Daten
CPU
Socket T (LGA775)
Intel® Core™2 Quad, Core™2 Extreme, Core™2 Duo, Pentium® Dual-Core processors
Supports Intel® next generation 45nm Multi-Core processors
Chipset
Intel® X38 + ICH9R
Front Side Bus
1333 / 1066 / 800 MHz (FSB)
Memory
Dual channel DDR2 1066(oc**)/800/667 x 4 DIMMs (Max. 8GB)
or DDR3 1333/1066/800 x 2 DIMMs (Max. 4GB)
Expansion Slots
3 x PCI-E x16
2 x PCI-E x1
2 x PCI
Supports PCIe Gen2.0 for increased bandwidth between system and PCIe cards; Supports future VGA cards
Storage/SATA/RAID
1 x UltraDMA 133/100/66/33
6 x SATAII + 2 x eSATA w / RAID 0, 1, 5, 10 and Intel® Matrix storage technology
Audio
Audio 7.1 channel, Realtek® ALC888
LAN
Dual GbE LAN, Realtek® RTL8111B and RTL8110SC
IEEE1394
2 x 1394a
USB
8 x USB 2.0 ports
Back Panel I/O Ports
1 x SPDIF Coaxial
1 x SPDIF Optical
1 x PS/2 Keyboard
1 x PS/2 Mouse
2 x e-SATA
1 x Foxconn Digital Connector
2 x RJ45
4 x USB2.0
1 x 7.1 channel Audio jacks set (6 jacks)
1 x IEEE1394 Firewire
Internal I/O Connectors
2 x USB2.0 connectors support additional 4 USB ports
24-pin ATX Power connector
8-pin ATX 12V Power connector
CD-in connector
CPU / System / Chipset FAN connectors
Front panel audio connector
1 x S/PDIF Out connector
1 x Floppy connector
1 x Front Panel connector
6 x SATAII connectors
1 x COM header
1 x on-board power_LED
1 x IEEE1394 connector supports additional one port
1 x Intruder
1 x IDE connector
1 x IRDA
BIOS
8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Manageability
PCI 2.3, USB2.0, DMI 2.5
Form Factor
ATX, 12" in x 9.6" in
Lieferumfang
Nur das Mainboard - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
