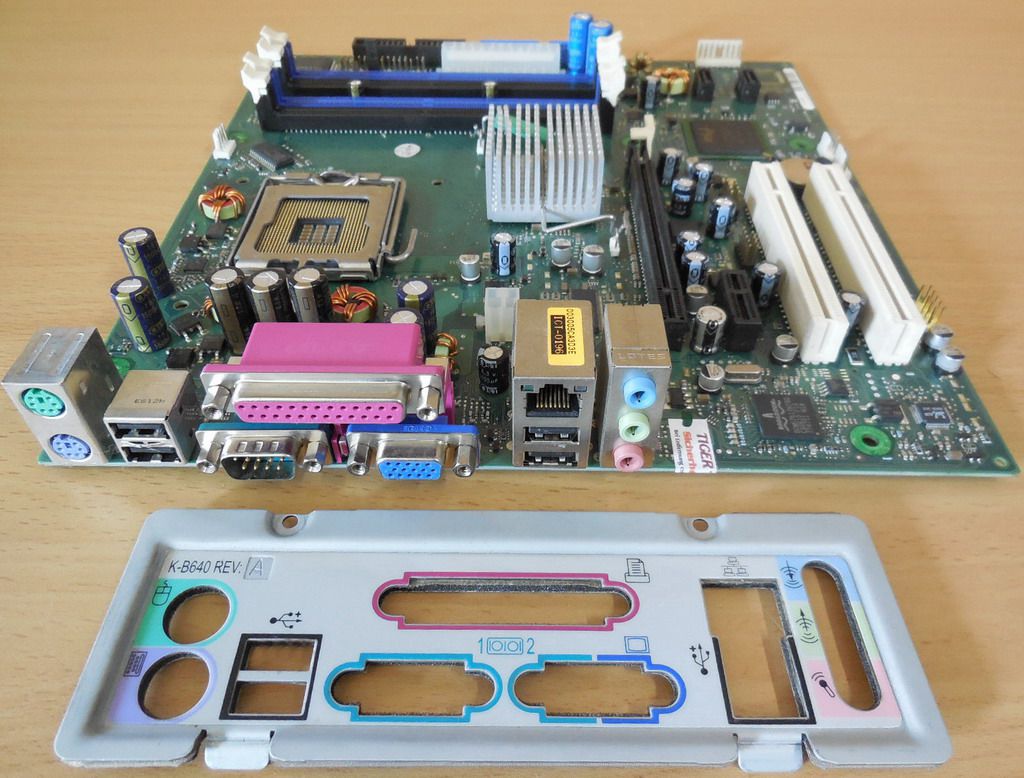

Fujitsu D2151-A11 GS7 Mainboard + Blende Sockel 775 PCIe DDR2 Esprimo P5905
Technische Daten
Hersteller: Fujitsu
Model: D2151-A11 GS7
CPU-Unterstützung: Intel ® Pentium ® D Processors, LGA775 with 800 MHz FSB
Intel ® Pentium ® 4 Processors, LGA775 with 1066/800/533 MHz FSB
Intel ® Celeron ® D Processors, LGA775 with 533 MHz FSB
Support for Hyper-Threading Technology
Compatible with Intel ® 05A processors
Sockel: Intel 775
Chipsatz: Intel ® 945G / ICH7
RAM: 4 x DIMM Sockets 240-Pin (1.8 V), 256MB - 4GB, Single or Dual Channel, DDR2 667/533/400 SDRAM (PC2-5300/PC2-4200/PC2-3200), unbuffered, no ECC
Graphics: Intel® GMA950 Graphics Controller, shared memory (up to 224MB), DirectX 9 compliant, 333 MHz core frequency, 256-bit 2-D and 32-bit 3-D engine, Motion video acceleration, up to 2048 x 1536 at 75 Hz refresh, integrated 24-bit 400 MHz RAMDAC
upgradeable with PCI Express x16 Graphics Card or ADD2 Cards to add support for digital displays or TV Out
LAN: Broadcom BCM5751 Gigabit LAN Controller with 10/100/1000 Mbit/s via PCI Express, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, bootix® PXE Support
Audio: Realtek ALC260 (HD Audio), HW 3D Stereo Enhancement, SW Wavetable Synthesis Support
Erweiterungssteckplätze: 1 x PCIe x16; 1 x PCIe x1; 2 x PCI (Rev2.3; 32Bit; 33MHz; 5V and 3.3V)
Intern: Echtzeituhr/Kalender mit Batteriepufferung
2 x SATA2 (3GBits) Interfaces up to 2 Drives
1 x ATA100 Interface up to 2 IDE Drives
1 x Diskettenlaufwerksschnittstelle (Floppy Interface up to 2.88MB)
1 x 4-pin CPU FAN Connector
1 x 4-pin FAN2 Connector
2 x USB2.0-Anschluss Header für 4 weitere USB2.0 Ports, z.B. via Blende
1 x 24-pin Power Connector
1 x 4-pin 12V Processor Supply Connector
1 x Interner Speaker Anschluss
1 x Front System Panel Connector
1 x Front Audio Panel Connector
1 x Chassis Intruder Connector
1 x PC2004 Connector
Externe Anschlüsse: 1x VGA Sub-D; 1x PS/2 Maus, 1x PS/2 Tastatur, 1x Parallel; 1x Seriell, 1x LAN, 4x USB2.0, 1x Line-In, 1x Line-Out, 1x Mic
Phoenix cME FirstBIOS: V5.00 modified and adapted by Fujitsu Siemens Computers; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update via disk (stable user settings), Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCI Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3 (Save-to-RAM), ACPI S4 (Save-to-Disk), Wake on time from S5
Security Features
Recovery BIOS, System and BIOS Password, Boot and/or Write Protection for Floppy Disk Drive, Boot Sequence Control for each Floppy and IDE Drive, Serial and Parallel Port Access Protection, Boot Sector Virus Warning, Write Protection for Flash BIOS
Special Features
Silent Fan Independent temperature related processor and fan supervision and control
System Guard View and adjust Silent Fan
Silent Drives Noise reduction for optical and hard disk drives
Safe Standby Prevents data loss in S3 (save-to-RAM)
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with DU CD
Multi Boot Comfortable boot from any boot device
HDD Password Access protection for ATA5/ATAPI5 disk drives
Formfaktor: μATX ca. 243.8 mm x 243.8 mm
Lieferumfang
Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
