Products description

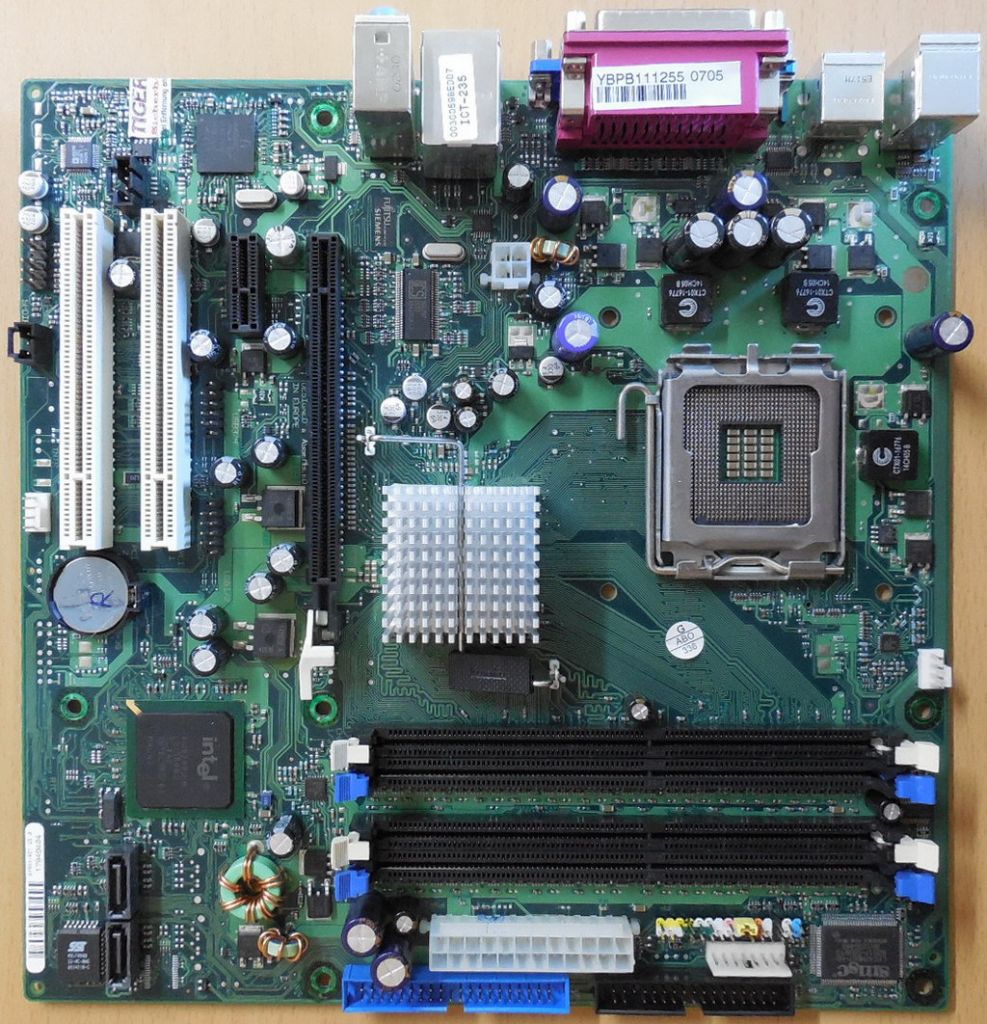

Fujitsu Siemens Computers D1931-A21 GS 3 Mainboard + Blende Sockel 775 Intel 915G Scenic P320
Technische Daten
CPU support
Intel® Pentium 4 with 533 or 800 MHz front side bus in the LGA775 design
Intel® Celeron with 800 MHz Front Side Bus in the LGA775 design
(For details on supported processors please refer to the Fujitsu website)
Chipset
Intel® 915G Chipset
Memory
4 x DIMM Sockets (2.5V), 1GB - 4GB, Single Channel or Dual Channel DDR1-333 / DDR1-400 SDRAM, unbuffered, no ECC
Expansion Slots
1 x PCI Express x16 Steckplatz
1 x PCI Express x1 Steckplatz
2 x PCI-Steckplätze (32-bit, 33MHz, 5V & 3.3V)
Graphics
Intel® GMA 900 Graphics
Audio
Analog Devices AD1986 AC´97 Audio Codec
LAN
Broadcom BCM5751KFB Ethernet Controller with 10/100/1000 MBit/s, Wake-on-LAN (WoL), Boot
Features
FAN controlled CPU(FAN1)
TEMP monitored CPU
External Connectors
1 x PS/2 Maus
1 x PS/2 Tastatur
1 x LAN (RJ-45)
1 x VGA
1 x Parallel (EPP/ECP)
1 x Seriell (RS232, FIFO, 16550 kompatibel)
4 x USB2.0
Audio Mic. In / Line in / Line out (or driver configuration)
Internal Connectors
2 x SATA I (150Mbyte/s) ports
1 x IDE connector (ATA100)
1 x FDD Floppy connector
1 x System Panel
1 x Audio Frontpanel connector
1 x Audio In connector
1 x SPDIF connector
2 x USB2.0 connectors
1 x FAN1 connector
1 x FAN2 connector
1 x 24-pin Main Power connector
1 x 4-pin (12V processor supply)
1 x Stromversorgungsüberwachung connector
BIOS modified and adapted by Fujitsu Siemens Computers
Board size μATX
Others USB SmartCard Reader Support; Fujitsu Siemens Computers Keyboard Power Button Support
Special Features
Silent Fan LT Independent temperature related processor fan and system fan control
Silent Drives Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with Driver&Utilities DVD
Multi Boot Comfortable boot from any boot device
Safe Standby The Content of the main memory is saved to the hard disk when Standby mode
USB Security protection against unauthorised access
Intel On Screen Branding
Lieferumfang

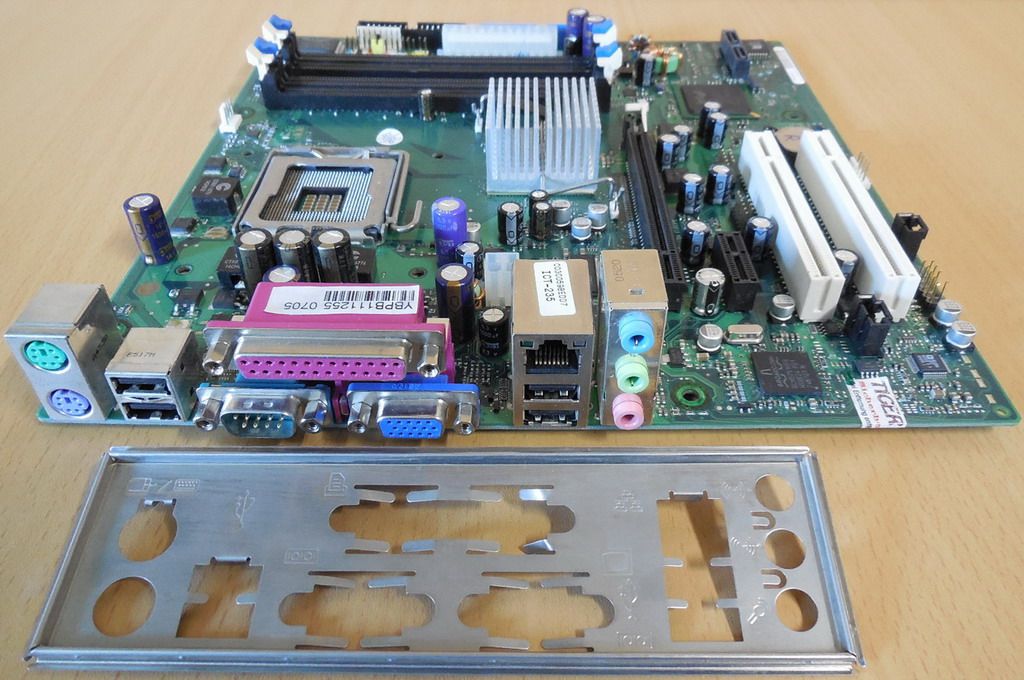

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
