Products description

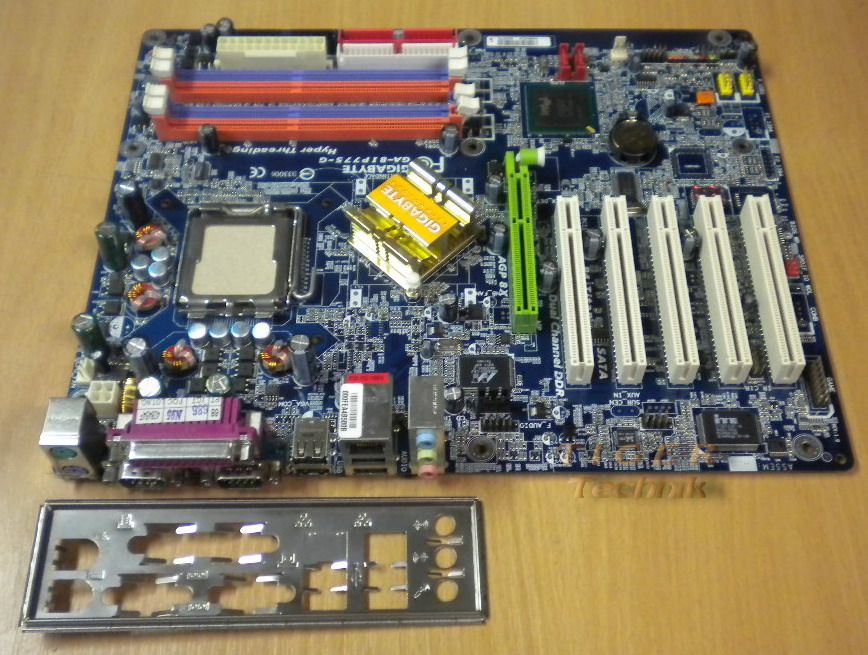

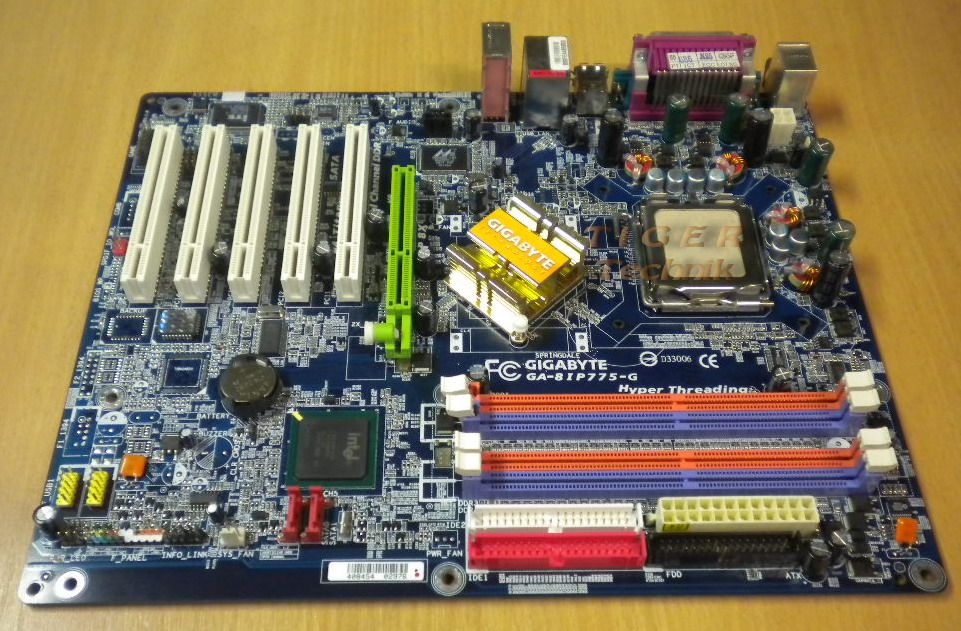

Gigabyte GA-8IP775-G Sockel 775 Mainboard mit Blende
Technische Daten:
Prozessor
LGA775 for Intel® Pentium® 4 processor.
Chipsatz
North Bridge : Intel® 865P MCH
South Bridge : Intel® ICH5
Integrated Peripherals :
Marvell Gigabit Ethernet Controller
Realtek ALC850 CODEC
Front Side Bus
800 / 533/400 MHz FSB
Arbeitsspeicher
Type: Dual Channel DDR 400 / 333 / 266 support
Max capacity: 4 GB (Please read FAQ for further information)
DIMM slots: 4
Interne I/O Anschlüsse
2 x Serial ATA ports
2 x UltraDMA 100/66 Bus Master IDE
1 x FDD
2 x USB 2.0 (supports 4 ports by cable)
CD/AUX in
1 x Game port pin header
Erweiterungssteckplätze
1 x AGP 8x slot
5 x PCI slots (PCI 2.3 compliant)
Rückseite I/O Panel
4 x USB 2.0 ports
1 x RJ45 Lan port
1 x LPT port
2 x COM ports
3 x Audio ports (Line-in / Line-out / MIC)
2 x PS/2 ports (Keyboard/Mouse)
Form Factor
ATX
30.5cm x 24.4cm
H/W Überwachung
ITE 8712F
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
BIOS
3M bit flash ROM, Award BIOS
Hier gehts zum Handbuch ---> http://www.gigabyte.de/products/product-page.aspx?pid=1821#ov
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
