Products description

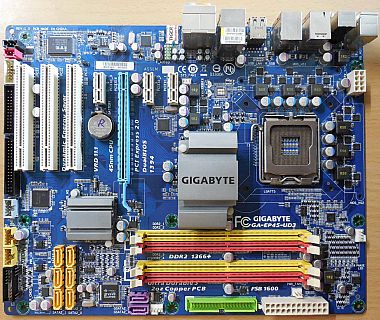

Gigabyte GA-EP45-UD3 Rev 1.0 Mainboard + Blende Sockel 775 P45 FSB1600 DDR2 PCIe
Technische Daten
CPU
Support for an Intel Core™ 2 Extreme processor / Intel® Core™ 2 Quad processor / Intel Core™ 2 Duo processor / Intel® Pentium® processor Extreme Edition / Intel® Pentium® D processor / Intel® Pentium® 4 processor Extreme Edition / Intel® Pentium® 4 processor / Intel® Celeron® processor in the LGA 775 package
L2 cache varies with CPU
(Refer to CPU support list for more information)
Front Side Bus
1600/1333/1066/800 MHz FSB
Chipsatz
North Bridge: Intel P45 Express Chipset; South Bridge: Intel ICH10
Arbeitsspeicher
4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR2 1366+*/1066/800/667 MHz memory modules
*Refer to Memory Support List for more information.
Audio
Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out; CD-In
Gigabit LAN
1 x Realtek 8111C chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (conforms to PCI Express 2.0 standard)
3 x PCI Express x1 slot
3 x PCI slots
Storage Interface
by South Bridge:
6x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
by GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices; Support for SATA RAID 0, RAID 1 and JBOD
by iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
IEEE 1394a by T.I. TSB43AB23
Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
8 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x parallel port header
1 x serial port header
1 x power LED header
1 x chassis intrusion header
Rückseite I/O Panel
1 x PS/2 mouse port
1 x PS/2 keyboard/mouse port
1 x optical S/PDIF Out connector
1 x coaxial S/PDIF Out connector
8 x USB 2.0/1.1 ports
2 x IEEE 1394a ports
1 x RJ-45 ports
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line
I/O
iTE IT8718 chip
H/W Überwachung
System voltage detection; CPU/System temperature detection; CPU/System/Power fan speed detection; CPU overheating warning; CPU/System/Power fan fail warning; CPU/System fan speed control
BIOS
2 x 8 Mbit flash; Use of licensed AWARD BIOS; Support for Dual BIOS; PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS; Q-Flash; Dual BIOS; Download Center; Xpress Install; Xpress Recovery2; EasyTune 6; Dynamic Energy Saver Advanced; Time Repair; Q-Share
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Lieferumfang
Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
