Gigabyte GA-EQ45M-S2 Rev 2.0 Mainboard + Blende
Sockel 775 PCIe x16 DVI VGA
Sockel 775 PCIe x16 DVI VGA
Technische Daten
Prozessor
Support for an Intel® Core™ 2 Extreme processor / Intel® Core™ 2 Quad processor / Intel® Core™ 2 Duo processor / Intel® Pentium® Dual-Core processor / Intel® Celeron® processor in the LGA 775 package
L2 cache varies with CPU
Front Side Bus
1333/1066/800 MHz FSB
Chipsatz
North Bridge: Intel® Q45 Chipset
South Bridge: Intel® ICH10DO
Arbeitsspeicher
4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1) (Note 2)
Dual channel memory architecture
Support for DDR2 800/667 MHz memory modules (Go to GIGABYTE's website for the latest memory support list.)
Onboard Grafik
1 x D-Sub port
1 x DVI-D port (Note 3) (Note 4)
Audio
Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN
Intel 82567LM chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (Go to GIGABYTE's website for the graphics card support list.)
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5 and RAID 10.
JMicron 368 chip
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8720 chip
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Integrated in the chipset
Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
3 x USB 2.0/1.1 headers
2 x serial port header
1 x debug card header (Note 5)
1 x jumper for enabling Intel Management Engine Feature
1 x clearing CMOS jumper
1 x power LED header
1 x chassis intrusion header
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x D-Sub port
1 x DVI-D port (Note 3) (Note 4)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line out/Microphone)
I/O
iTE IT8720 chip
H/W Überwachung
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 6)
BIOS
2 x 16 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS; Support for Q-Flash; Support for Virtual Dual BIOS; Support for Download Center; Support for Xpress Install; Support for Xpress Recovery2; Support for Dynamic Energy Saver Advanced; Support for Ultra TPM; Support for Time Repair; Support for Q-Share
Betriebssystem
Support for Microsoft® Windows 7/Vista/XP
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Hinweis
(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Before enabling Intel Management Engine, make sure DDR2_1 socket in Channel 0 is populated.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) Simultaneous output for PCI Express x16 and DVI-D is not supported.
(Note 5) Whether this feature is supported depends on the product being received.
(Note 6) Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.
Aufgrund der unterschiedlichen Bedingung Linux-Unterstützung von der Chipsatzhersteller, bitte Linux -Treiber von Chipsatzhersteller Website oder 3rd-Party- Website herunterladen.
Die meisten Hardware / Software-Anbieter mehr kann keine Treiber bieten Win9x / ME / 2000 / XP SP1 / SP2 zu unterstützen.
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2.
Intel® Core™ 2 multi-core
Prozessor
Support for an Intel® Core™ 2 Extreme processor / Intel® Core™ 2 Quad processor / Intel® Core™ 2 Duo processor / Intel® Pentium® Dual-Core processor / Intel® Celeron® processor in the LGA 775 package
L2 cache varies with CPU
Front Side Bus
1333/1066/800 MHz FSB
Chipsatz
North Bridge: Intel® Q45 Chipset
South Bridge: Intel® ICH10DO
Arbeitsspeicher
4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1) (Note 2)
Dual channel memory architecture
Support for DDR2 800/667 MHz memory modules (Go to GIGABYTE's website for the latest memory support list.)
Onboard Grafik
1 x D-Sub port
1 x DVI-D port (Note 3) (Note 4)
Audio
Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN
Intel 82567LM chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (Go to GIGABYTE's website for the graphics card support list.)
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5 and RAID 10.
JMicron 368 chip
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8720 chip
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Integrated in the chipset
Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
3 x USB 2.0/1.1 headers
2 x serial port header
1 x debug card header (Note 5)
1 x jumper for enabling Intel Management Engine Feature
1 x clearing CMOS jumper
1 x power LED header
1 x chassis intrusion header
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x D-Sub port
1 x DVI-D port (Note 3) (Note 4)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line out/Microphone)
I/O
iTE IT8720 chip
H/W Überwachung
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 6)
BIOS
2 x 16 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS; Support for Q-Flash; Support for Virtual Dual BIOS; Support for Download Center; Support for Xpress Install; Support for Xpress Recovery2; Support for Dynamic Energy Saver Advanced; Support for Ultra TPM; Support for Time Repair; Support for Q-Share
Betriebssystem
Support for Microsoft® Windows 7/Vista/XP
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Hinweis
(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Before enabling Intel Management Engine, make sure DDR2_1 socket in Channel 0 is populated.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) Simultaneous output for PCI Express x16 and DVI-D is not supported.
(Note 5) Whether this feature is supported depends on the product being received.
(Note 6) Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.
Aufgrund der unterschiedlichen Bedingung Linux-Unterstützung von der Chipsatzhersteller, bitte Linux -Treiber von Chipsatzhersteller Website oder 3rd-Party- Website herunterladen.
Die meisten Hardware / Software-Anbieter mehr kann keine Treiber bieten Win9x / ME / 2000 / XP SP1 / SP2 zu unterstützen.
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2.
Intel® Core™ 2 multi-core
GA-EQ45M-S2 supports Intel latest high performance CPU delivers the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel multi-core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform.
Windows® 7 WHQL Certified
The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards.
Intel® IT Director
• A simple dashboard utility for non-technical Small Business owners
• Improves security and data protection with Intel platform technologies
• Improves efficiency through central monitoring of key alerts
• Expanded support for Intel® vPro platforms to maximize value for your customer
• A simple dashboard utility for non-technical Small Business owners
• Improves security and data protection with Intel platform technologies
• Improves efficiency through central monitoring of key alerts
• Expanded support for Intel® vPro platforms to maximize value for your customer
Dynamic Energy Saver Advanced
GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching on GA-EQ45M-S2. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 2 Gear phase switching during idle, allowing for a dramatic increase in power savings
GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
Intel Q45 Chipset
Based on the Intel® Q45 Express Chipset, GA-EQ45M-S2 supports the latest multi-core and next generation 45nm processors. Featuring Intel® vPro™ technology, Intel® Graphics Media Accelerator 4500, Intel matrix Storage Technology, and Intel® Fast Memory Access, GA-EQ45M-S2 creates a powerful business platform with hardware-based security, enhanced maintenance and manageability…more Intel® vPro™ info
Dual Channel DDR2 800
Experience the advanced technology of DDR2 800 memory by overclocking, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications
PCI-E 2.0 Graphics Interface
PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCI-E 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
Supports TPM
TPM function is optional due to different regional policy
TPM (Trusted Platform Module) can enhance data and network security, from your personal drive, E-mails, file system to the client-server environment. TPM improve your data flow security by hardware and software.
TPM (Trusted Platform Module) can enhance data and network security, from your personal drive, E-mails, file system to the client-server environment. TPM improve your data flow security by hardware and software.
Intel Active Management Technology
Intel® Active Management Technology provides IT departments with remote client manageability, out-of-band (OOB) diagnostics and assets tracking which remotely manage platforms regardless of system power or OS state to help reduce TCO and improve productivity.
Intel® Matrix Storage Technology
Intel® Matrix Storage Technology, can deliver up to 80% faster storage performance with PCs equipped with two hard drives using RAID 0 data striping. Using RAID 1 data mirroring can protect against a hard drive failure by mirroring all data among two hard drives. In addition RAID 5 offers the fault-tolerant capability to automatically back up your most important files, while also providing faster disk access and adding storage capacity.
SATA 3Gb/s storage interface
SATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.
Gigabit LAN connectivity
Lieferumfang
Das Mainboard inkl. Blende + 2x SATA Daten Kabel * ohne weiteres Zubehör * gebraucht *

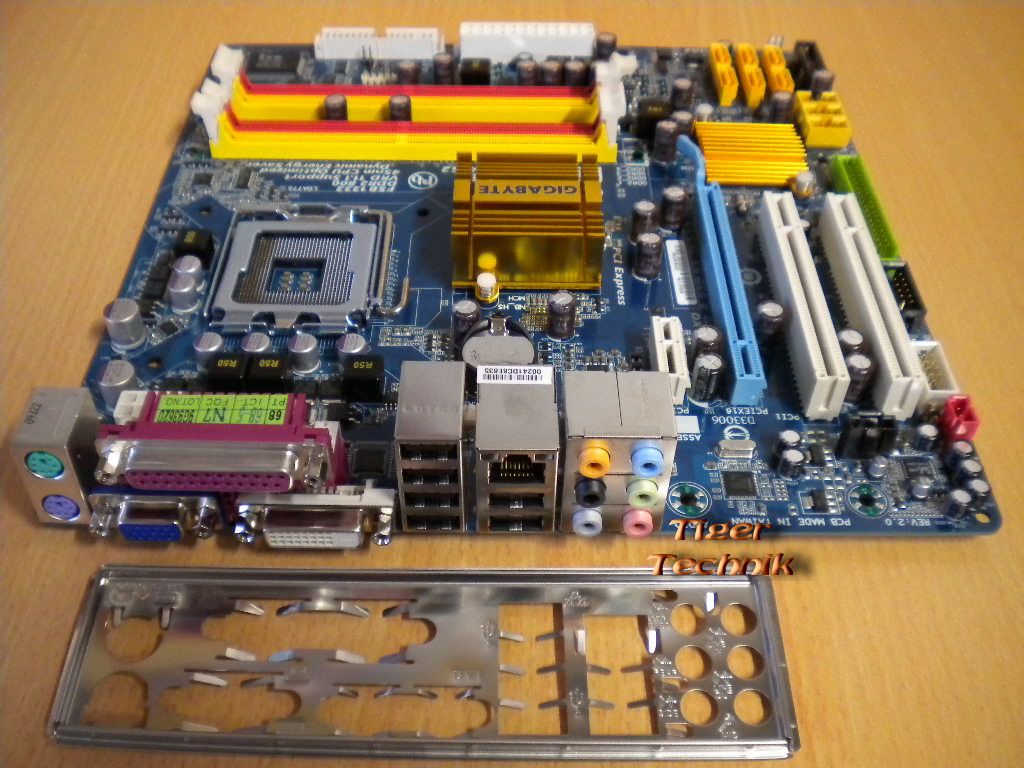

Abbildung ähnlich
Das Mainboard inkl. Blende + 2x SATA Daten Kabel * ohne weiteres Zubehör * gebraucht *

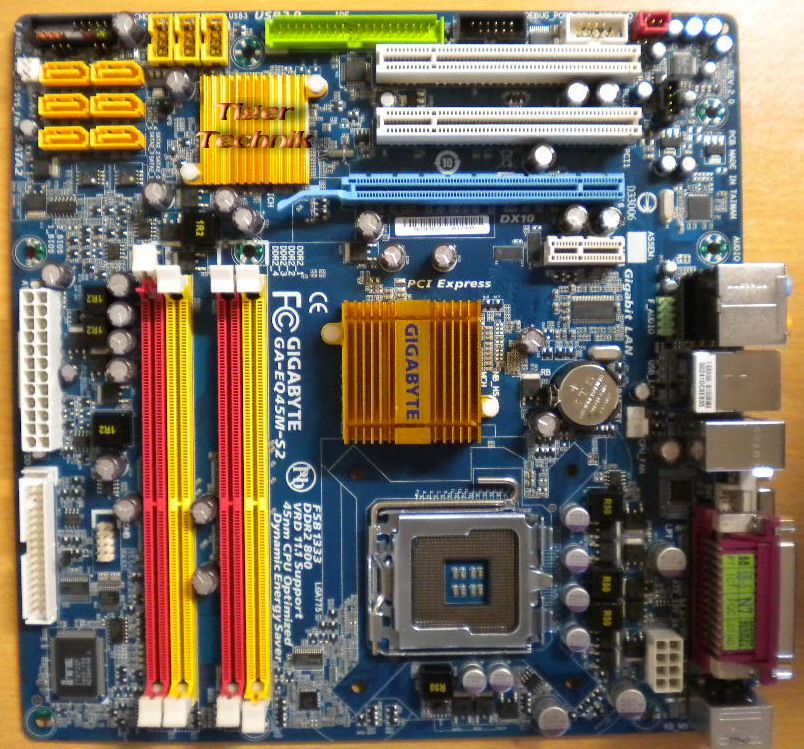

Abbildung ähnlich
