Products description

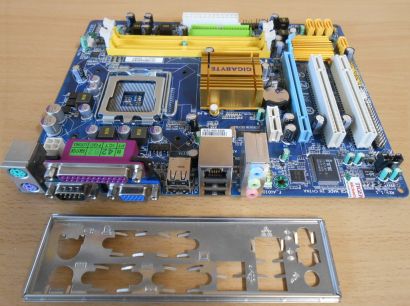

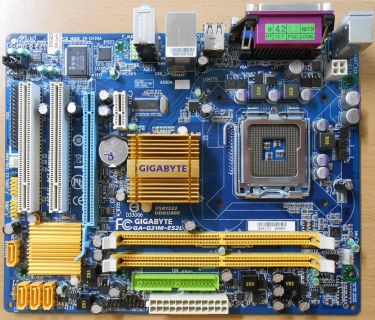

Gigabyte GA-G31M-ES2L Rev 1.1 Mainboard + Blende Sockel 775 DDR2 PCIe GBLAN
Technische Daten
Prozessor
Support for an Intel® Core™ 2 Extreme processor / Intel® Core™ 2 Quad processor / Intel® Core™ 2 Duo processor / Intel® Pentium® processor Extreme Edition / Intel® Pentium® D processor / Intel® Pentium® 4 processor Extreme Edition / Intel® Pentium® 4 processor / Intel® Celeron® processor in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
L2 cache varies with CPU
Front Side Bus
1600(O.C.)/1333/1066/800 MHz FSB
Chipsatz
Intel® G31 Express Chipset North Bridge + Intel® ICH7 South Bridge
Arbeitsspeicher
2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
Dual channel memory architecture
Support for DDR2 1066(O.C.)/800/667 MHz memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Integrated Intel Graphics Media Accelerator 3100 (Intel GMA 3100)
Intel Graphics Media Accelerator 3100 support Microsoft DirectX 9.0 and Windows Vista Aero experience. The 3D enhancement of GMA 3100 highly improves the realism and graphics performance.
Audio
Realtek ALC883 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out; Support for CD In
Note: To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.
LAN
RTL 8111C chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface
1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x 4-pin CPU fan header
1 x 3-pin System fan header
1 x Front panel header
1 x Front panel audio header
1 x CD In connector
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x chassis intrusion header
1 x power LED header
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O
iTE IT8718 chip
H/W Überwachung
System voltage detection
CPU temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU fan speed control
BIOS
2 x 4 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS; Q-Flash; Virtual DualBIOS; Download Center; Xpress Install; Xpress Recovery2; EasyTune; Easy Energy Saver
Betriebssystem
Support for Microsoft® Windows 7 / Vista / XP
Form Factor
Micro ATX form factor; 24.4cm x 19.4cm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
