Products description

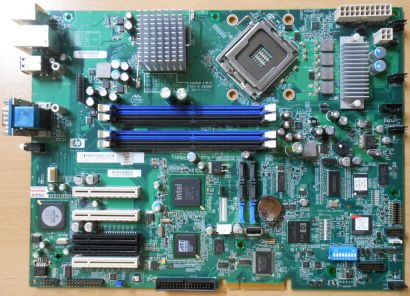

HP A61TR1 Mainboard + Blende
450120-002 518761-001 ProLiant ML310 G5p Sockel 775
Technische Daten
ausgebaut aus einem ProLiant ML310 G5p. Bei entsprechenden Vorraussetzungen auch für andere PC´s geeignet.
CPU
Quad-Core Intel® Xeon® 3000 processor sequence
Dual-Core Intel® Xeon® 3000 processor sequence
Dual-Core Intel® Core™2 E4600 processor
Dual-Core Intel® Pentium® E2160 processor
Single-Core Intel® Celeron® 400 sequence
Dual-Core Intel® Xeon® processor E3000 sequence processor
FSB
1333 MHz Front Side Bus (FSB)
Chipset
Intel® 3210 Chipset
Memory
Up to 8 GB of PC2-6400 800MHz unbuffered DDR2 SDRAM with ECC capabilities and optional interleaving
Expansion slots
1 x PCI Express x8
3 x PCI Express x1
1 x Optional Extender Board for one 64-bit/100MHz PCI-X
Storage
Embedded SATA with integrated SATA RAID 0,1
4 x SATA ports + 2 x ODD ports
LAN
Embedded NC326i Gigabit Server Adapter
VGA
Integrated graphics
Back Panel I/O
1 x Serial
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA port
2 x USB 2.0
2 x RJ-45 Port
USB 2.0 Ports
6 x USB2.0 Total: 2 x front; 2 x rear; 1 x internal; 1 x dedicated internal for tape
Internal I/O Connectors
1 x FAN1 CPU Fan connector
1 x FAN2 connector
1 x FAN3 connector
1 x FAN4 connector
1 x Rear Fan connector
20 pin ATX power connector
4 pin P4 power connector
1 x CN16 Floppy port connector
1 x CN3 connector
1 x Front Panel connector
1 x CN6 connector
1 x RPSU connector
1 x CN13 connector
1 x CN14 TPM connector
1 x CN18 COM2 connector
1 x CN11 connector
1 x CN9 connector
1 x CN17 LPT connector
1 x CN7 connector
1 x JP10 Jumper; 1 x JP4 Jumper; 1 x JP11 Jumper; 1 x JP12 Jumper; 1 x JP2 Jumper; 1 x JP3 Jumper; 1 x JP1 Jumper; 1 x JP6 Jumper; 1 x JP7 Jumper; 1 x JP8 Jumper; 1 x JP9 Jumper
1 x buzzer
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
