Products description

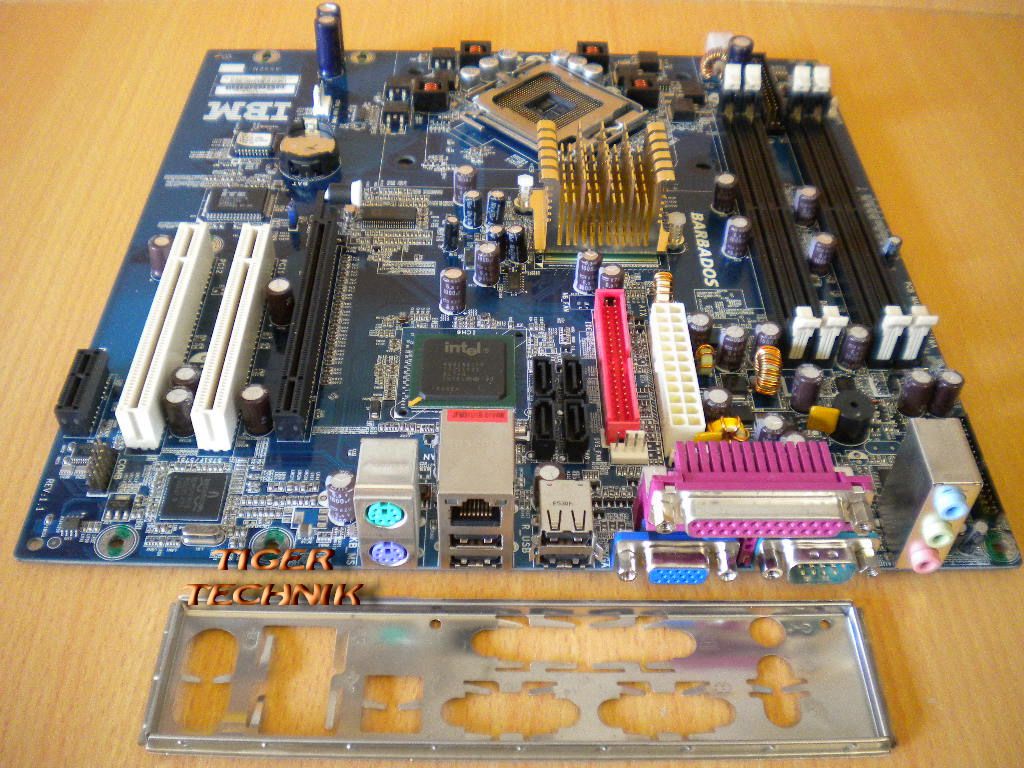

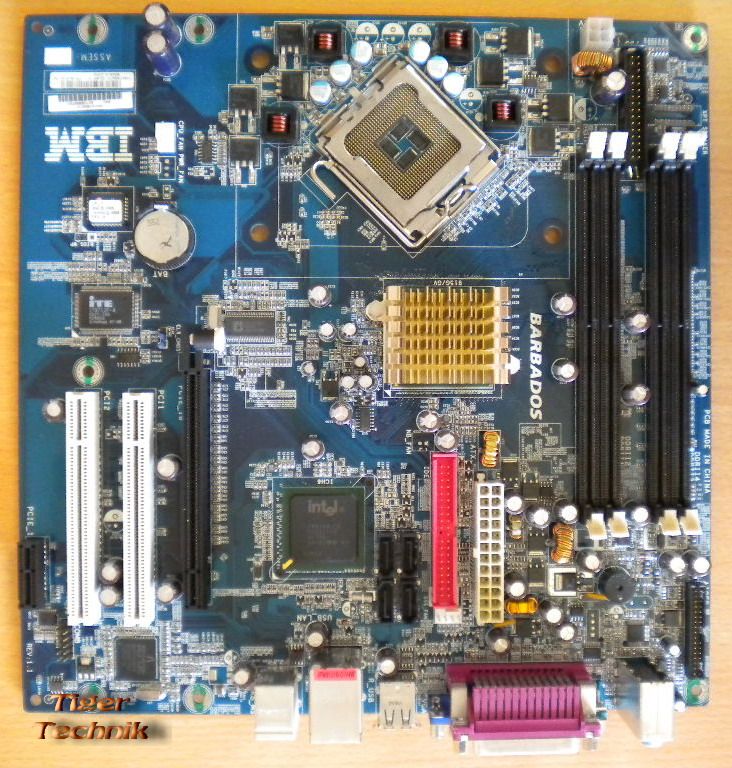

IBM Barbados FRU 39J6196 Rev. 1.1 Mainboard + Blende
Sockel 775 PCI-E VGA LAN Audio
Technische Daten
System board / Form factor
Ultra-small desktop (1x2) with Intel 915GV chipset
Supports Intel Prescott Celeron D processor with 533MHZ FSB and 256KB L2 cache
Supports Intel Prescott Pentium 4 processors with 533MHz or 800MHz FSB and 1MB or 2MB L2 cache
LGA 775 socket
Processor
Intel® Celeron® D Processor 326
Intel® Celeron® D Processor 336
Intel® Celeron® D Processor 346
Intel® Pentium® 4 Processor 505
Intel® Pentium® 4 Processor 515
Intel® Pentium® 4 Processor 531 with HT Technology
Intel® Pentium® 4 Processor 541 with HT Technology
Intel® Pentium® 4 Processor 551 with HT Technology
Intel® Pentium® 4 Processor 630 with HT Technology
Intel® Pentium® 4 Processor 640 with HT Technology
Intel® Pentium® 4 Processor 650 with HT Technology
Cache
256KB cache - Celeron processors
1MB cache - Pentium 4 processors
2MB cache - Pentium 4 processors
Chipsets
Intel 915G or 915GV chipset
Integrated Intel Graphics Media Accelerator 900
I/O Controller Hub (ICH6)
AC '97 2.3 Digital controller
IDE controller
Supports up to two IDE devices
SATA controller
Supports up to four SATA devices
Memory
4x 240 pin DDR2 SDRAM DIMM sockets
Supports a maximum memory up to 4.0GB
ECC or parity memory is not supported
Audio
Integrated PCI AC'97 2.3 compliant CODEC
Front - Microphone-in, Headphones out
Rear - Line-in, line-out, and microphone input
Jack sensing, jack retasking - software will automatically detect which jack the microphone is using.
Mono microphone output
Software-based audio (done by processor and ICH8)
External stereo speakers (select models)
Keyboard and mouse
1x PS/2 Keyboard
Networking
Integrated 10/100/1000 (Gigabit) Ethernet with Wake on LAN
External ports
Six USB ( two in front, four in back) [Ver 2.0]
One Ethernet RJ-45
One serial 9-pin 16550 compatible
One parallel 25-pin (EPP, ECP), IEEE 1284
Keyboard, monitor, and mouse ports
Audio line in, headphone out, and microphone in jacks
Slots
Slot 1: Full height, half length PCI
Power management
APM 1.2 and ACPI 1.0b compliant
Security
Power-on password
Configuration password (administrator password)
Hard disk password (user and master)
Boot sequence control
Diskette boot inhibit
Boot without keyboard, mouse, or diskette
Diskette I/O control
Serial port I/O control
Parallel port I/O control
Operating system
Microsoft Windows XP Home
Microsoft Windows XP Professional
Video
Intel Graphics Media Accelerator 900
15-pin VGA output on planar
Uses Intel Dynamic Video Memory Technology (DVMT)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
