Products description

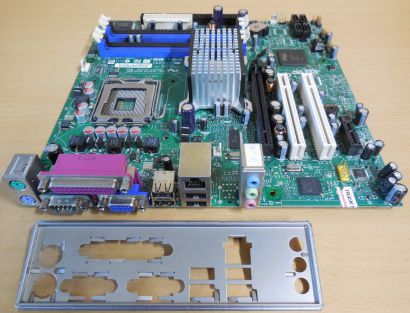

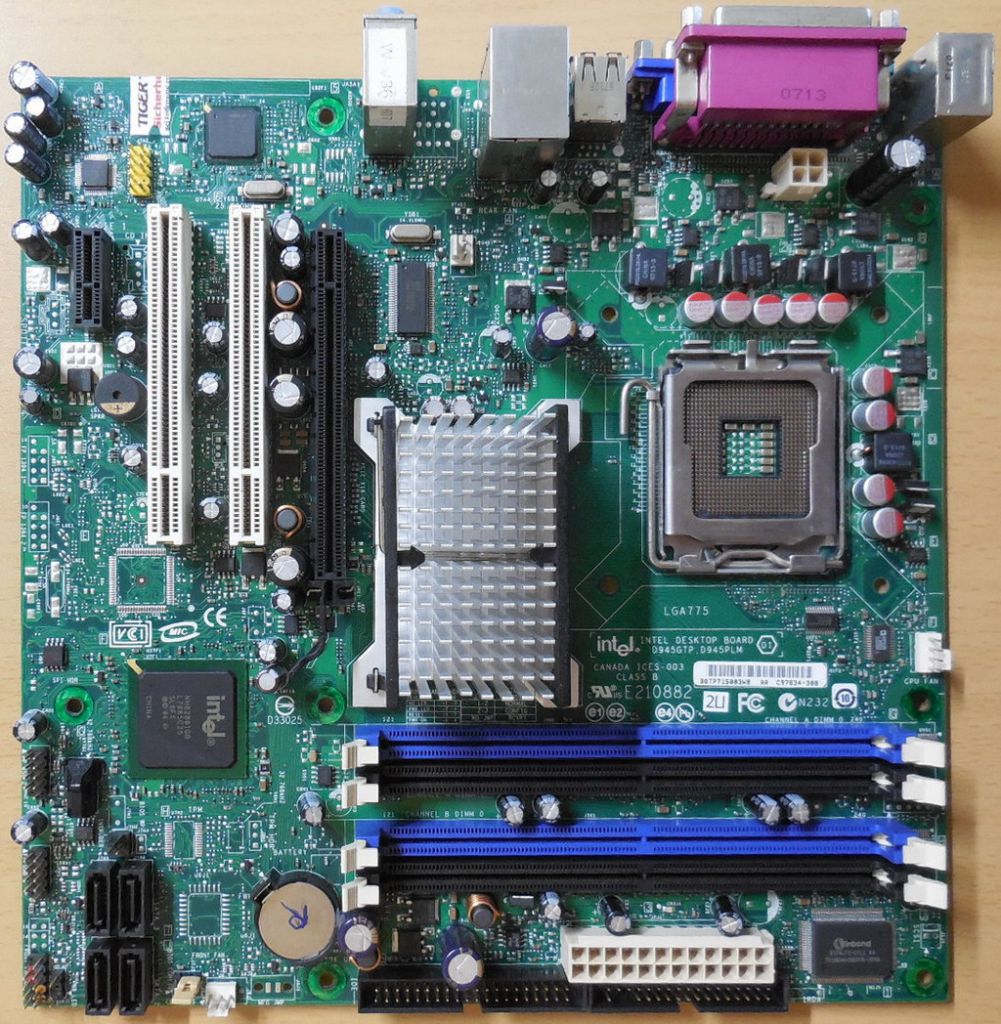

Intel D945GTP D945PLM Mainboard + Blende Sockel 775 PCIe x16 DDR2 Audio VGA LAN
Technische Daten
Processor
Supports Intel® Pentium® D, Intel® Pentium® 4 and Intel® Celeron® D processors in an LGA775 socket with a 1066, 800, or 533 MHz system bus (Please visit the Intel Website for CPU Support list)
Chipset
Intel® 82945G Graphics Memory Controller Hub (GMCH) + Intel® 82801G I/O Controller Hub (ICH7)
Memory
4 x 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 667, DDR2 533, or DDR2 400 MHz DIMMs
Support for up to 4 GB of system memory
Expansion Capabilities
2 x PCI Conventional bus connectors
1 x PCI Express x1 bus add-in card connector
1 x PCI Express x16 bus add-in card connector
Video
Intel® GMA950 onboard graphics subsystem
Audio
6-channel (5.1) audio subsystem with three analog audio outputs using the Sigmatel 9220 audio codec
Legacy I/O Control
Legacy I/O controller for diskette drive, serial, parallel, and PS/2* ports
USB
Support for max. 8 USB2.0 devices
LAN
10/100 Mbits/sec LAN subsystem using the Intel® 82562GZ Platform LAN Connect (PLC) device
SATA RAID
Intel® 82801GR I/O Controller Hub (ICH7-R) for RAID support (levels 0,1, 0+1, and 5) on the SATA interface
Internal I/O
4 x SATA Connectors
1 x IDE Connector
1 x FDD Floppy Disk Connector
2 x Front USB2.0 Connectors
1 x Buzzer
1 x 4-Pin CPU FAN Connector
1 x 3-Pin Front Chassis FAN Connector
1 x 3-Pin Rear Chassis FAN Connector
1 x Chassis Intrusion Connector
1 x BIOS Config Jumper
1 x Front Audio Panel Connector
1 x Front Panel Connector
1 x Power LED Connector
1 x 24-pin ATX Mainboard Power Connector
1 x 4-pin 12V CPU Power Connector
Rear I/O
1 x PS/2 Keyboard
1 x PS/2 Mouse
4 x USB2.0
1 x LAN
1 x VGA
1 x Seriell (COM)
1 x Parallel
3 x 3,5 mm Klinke Audio Anschlüsse (Line-IN/OUT, Microphone)
Instantly Available PC Technology
Support for PCI Local Bus Specification Revision 2.3
Support for PCI Express Revision 1.0a
Suspend to RAM support
Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
Hardware Monitor Subsystem
Hardware monitoring and fan control ASIC
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
Three fan connectors
Three fan sense inputs used to monitor fan activity
Fan speed control
BIOS
Intel® BIOS (resident in the SPI Flash device)
Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Form Factor
microATX (9.60 inches by 9.60 inches); ca. 243.84 mm x 243.84 mm
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
