Products description

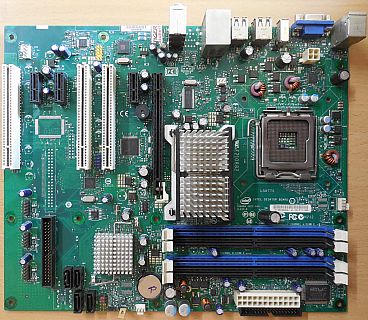

Intel DG33FB Rev D81072-306 Mainboard Sockel 775 DDR2 VGA PCIe IEEE1394
Technische Daten
CPU
Intel® Xeon® X3360, X3350, X3230, X3220, X3210 processor in an LGA775 socket
Intel® Core™2 Quad processor in an LGA775 socket
Intel® Core™2 Duo processor in an LGA775 socket
Intel® Pentium® Dual-Core processor in an LGA775 socket
Intel® Celeron® Dual-Core processor in an LGA775 socket
Chipset
Intel G33 Express Chipset Graphics and Memory Controller Hub (GMCH) + Intel® 82801IH I/O Controller Hub (ICH9DH)
Memory
4 x 240-pin DDR2 1.8V (only) SDRAM Dual Inline Memory Module (DIMM) sockets
800/667 MHz single or dual channel DDR2 SDRAM interface
Support for up to 8 GB of system memory
Expansion Capabilities
1 x PCI Express x16 connector
3 x PCI Express x1 connectors
3 x PCI connectors
Storage
4 x SATA 3.0 Gb/s ports via ICH9DH
1 x IDE interface with ATA-66/100 support for upto two devices
Video
Intel® Graphics Media Accelerator 3100 (Intel® GMA 3100) onboard graphics subsystem
LAN Support
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82566DC Gigabit Ethernet Controller
Audio
6-channel (5.1) onboard subsystem Realtek ALC888 audio codec
USB
12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
IEEE1394 Firewire
2 x IEEE1394 ports (1 port at mid-board, 1 port at back panel)
Legacy I/O Control
One diskette drive interface
One serial port header
PS/2 keyboard and mouse ports
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x IEEE1394 Firewire
1 x VGA Sub-D
1 x RJ45 port
6 x USB 2.0/1.1
5.1-channel Audio I/O
Internal I/O Connectors
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x CPU Fan connector (4pin)
3 x Chassis Fan connector (2 x 3-pin; 1 x 4-pin)
1 x Front Audio Panel connector
1 x System Panel connector
1 x IEEE1394 Firewire connector
3 x USB connectors support additional 6 USB ports
1 x Serial port connector (COM)
4 x SATA connectors
1 x IDE connector
1 x Chassis Intrusion connector
1 x Bios Configuration Jumper Block
1 x Alternate front panel power LED connector
BIOS
Intel® Platform Innovation Framework for extensible firmware interface
8 Mbit symmetrical flash memory device
Support for SMBIOS
Intel® Rapid BIOS Boot
Intel® Express BIOS Update
Power Management
Support for Advanced Configuration and Power Interface (ACPI)
Suspend to RAM (STR)
Wake on USB, PCI Express, PS/2, LAN, and front panel
ENERGY STAR* qualified desktop board
Hardware Management
Three fan sensing inputs used to monitor fan activity
Intel® Quiet System Technology fan speed control
Voltage sensing to detect out of range values
Form Factor
ATX 11.60 inches x 9.60 inches (320.04 mm x 243.84 mm)
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
