Products description

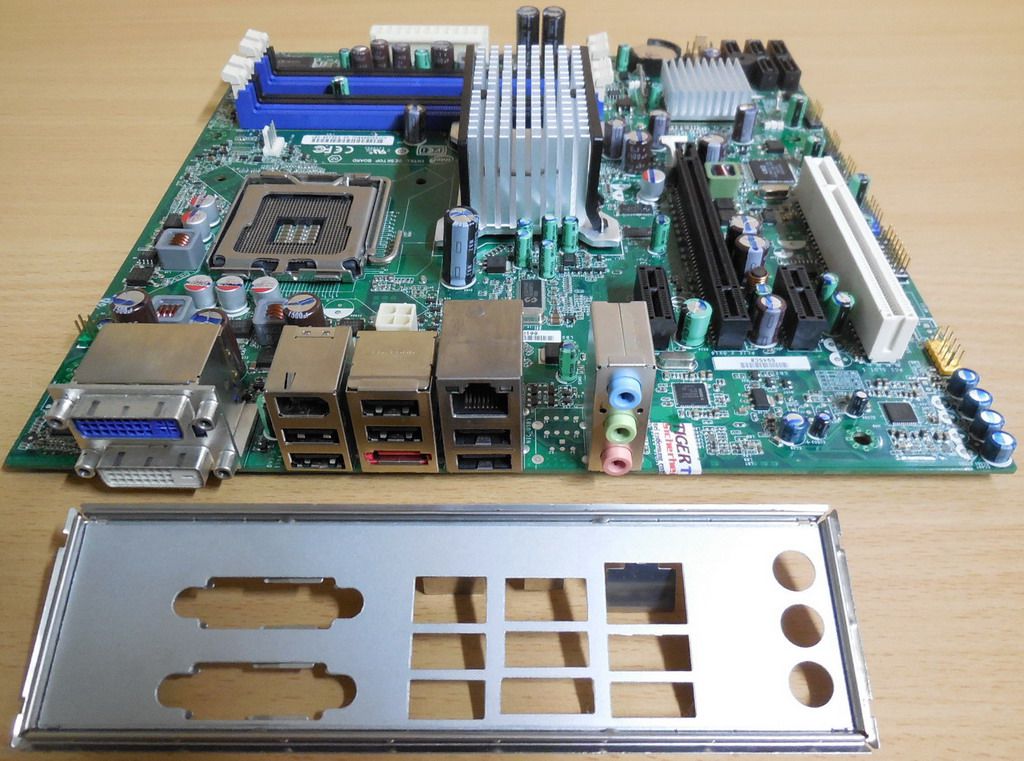

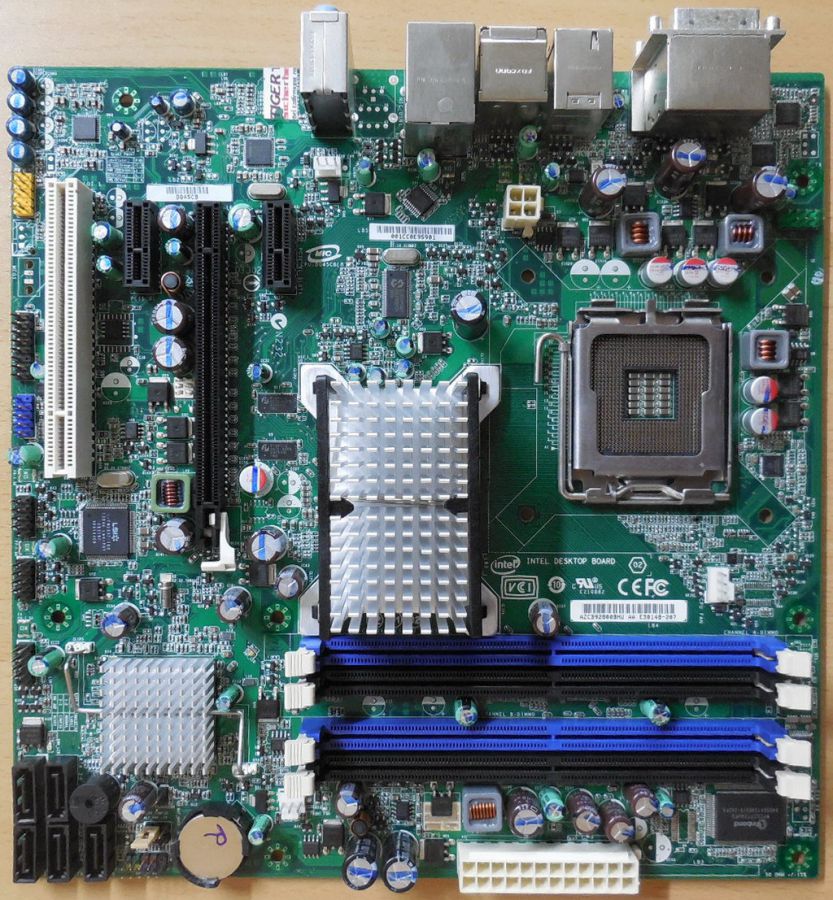

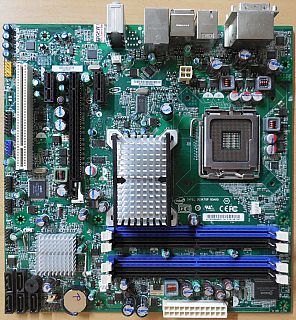

Intel DQ45CB Rev E30148-207 Mainboard + Blende Sockel 775 DDR2 VGA DVI PCIe
Technische Daten
CPU
Intel® Core™2 Quad processor in an LGA775 socket
Intel® Core™2 Duo processor in an LGA775 socket
Intel® Pentium® Dual-Core processor in an LGA775 socket
Intel® Celeron® Dual-Core processor in an LGA775 socket
Intel® Celeron® processor 400 Sequence in an LGA775 socket
Chipset
Intel® 82Q45 Graphics and Memory Controller Hub (GMCH) + Intel® 82801JDO I/O Controller Hub (ICH10DO)
Memory
4 x 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets (non-ECC)
Support for DDR2 800 MHz or DDR2 667 MHz DIMMs
Support for up to 8 GB of system memory using DDR2 800 MHz or DDR2 667 MHz DIMMs
Expansion Capabilities
1 x PCI Express x16 2.0 bus add-in card connector
2 x PCI Express x1 bus add-in card connectors
1 x PCI Conventional bus connector
Storage
5 x SATA 3.0 Gb/s ports (0,1,5,10 Intel Matrix Storage Technology Support RAID)
1 x External SATA 3Gb/s port
Video
Intel® Graphics Media Accelerator 4500 (Intel® GMA 4500) onboard graphics subsystem
LAN Support
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel®82567LM Gigabit Ethernet Controller
Audio
5.1-channel audio subsystem using the ADI AD1882 high definition audio codec
USB
12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
IEEE1394 Firewire
2 x Firewire ports (1 port at mid-board, 1 port at back panel)
Legacy I/O Control
Legacy I/O controller for serial port header
Back Panel I/O Ports
1 x DVI-I (blau)
1 x DVI-D (weiß)
1 x IEEE1394 Firewire
1 x External SATA
1 x RJ45 port
6 x USB 2.0/1.1
5.1-channel Audio I/O
Internal I/O Connectors
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x CPU Fan connector (4pin)
2 x Chassis Fan connector (3-pin)
1 x Front panel audio connector
1 x Front panel HD audio connector
1 x System Panel connector
1 x IEEE1394 Firewire connector
3 x USB connectors support additional 6 USB ports
1 x Serial port connector (COM)
5 x SATA connectors
1 x CMOS Jumper
BIOS
Intel® BIOS (resident in the SPI Flash device)
Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Instantly Available PC Technology
Support for PCI* Local Bus Specification Revision 2.3
Support for PCI Express* Revision 1.0a
Suspend to RAM support
Wake on PCI, RS-232, front panel, USB ports, LAN
Hardware Monitor Subsystem
Intel® Quiet System Technology implemented through the Intel® Management Engine (Intel® ME) in ICH10DO
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
Three fan headers
Three fan sense inputs used to monitor fan activity
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d); Intel® vPro™ Platform Eligibility; Intel® ME Firmware Version 5; Intel® Remote PC Assist Technology; Intel® CIRA Technology; TPM; Intel® Quiet System Technology; Intel® HD Audio Technology; Intel® Matrix Storage Technology
Form Factor
Micro-ATX 9.60 inches x 9.60 inches (243.84 mm x 243.84 mm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
