Products description

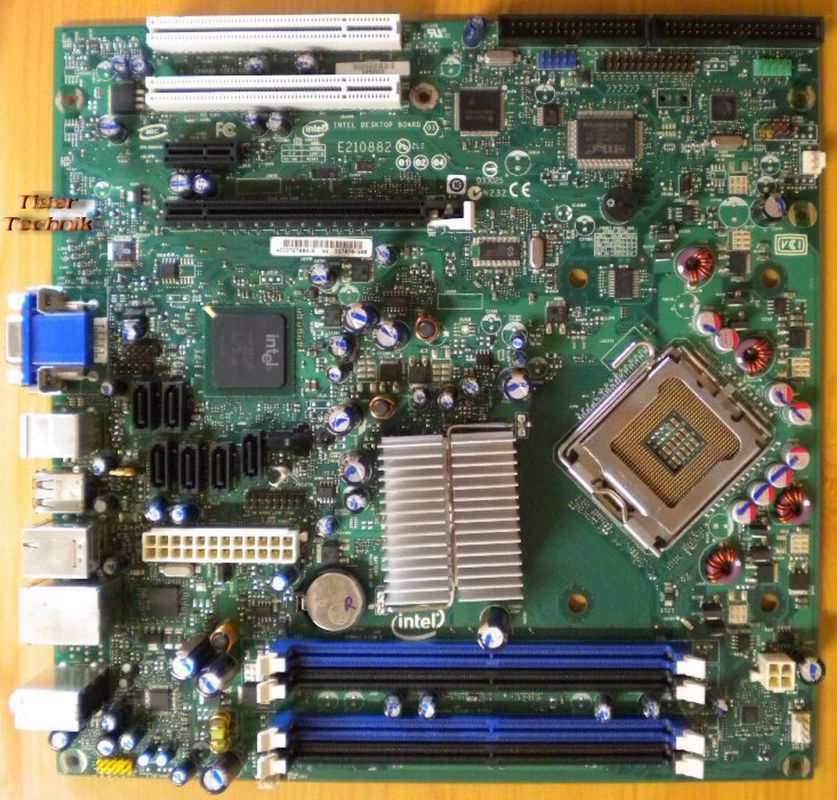

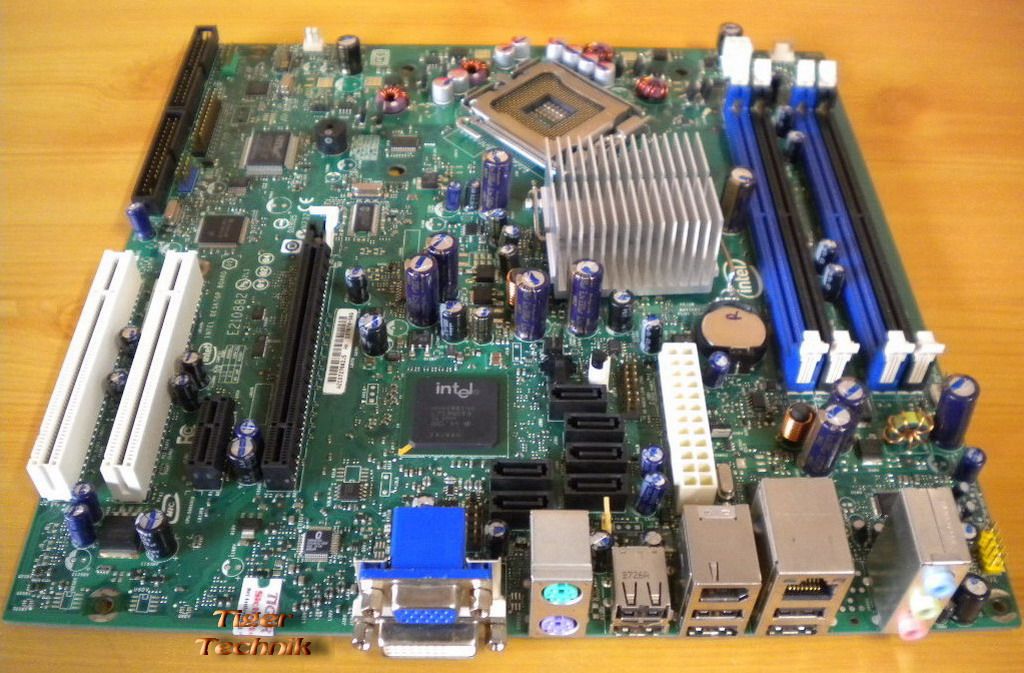

Intel DQ965C0 Mainboard + Blende D37070-506
BTX Sockel 775 PCIe x16 SATA DVI
Technische Daten
Form Factor
microBTX Form Factor 10.40 inches x 10.50 inches (264.16 mm x 266.70 mm)
Processor Support for the following:
Intel® Core™2 Duo processor in an LGA775 socket with a 1066 or 800 MHz system bus
Intel® Pentium® D processor in an LGA775 socket with an 800 or 533 MHz system bus
Intel® Pentium® 4 processor in an LGA775 socket with an 800 or 533 MHz system bus
Intel® Celeron® D processor in an LGA775 socket with a 533 MHz system bus
Memory
Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 800, DDR2 667, or DDR2 533 MHz DIMMs
Support for up to 8 GB of system memory using DDR2 667 or DDR2 533 DIMMs
Support for up to 4 GB of system memory using DDR2 800 DIMMs
Chipset
Intel® Q965 Express Chipset, consisting of:
Intel® 82Q965 Graphics Memory Controller Hub (GMCH)
Intel® 82801HO I/O Controller Hub (ICH8DO)
Video
Intel® GMA 3000 onboard graphics subsystem
Audio
6-channel (5.1) audio subsystem using the SigmaTel* STAC9227 audio codec
Legacy I/O Control
Legacy I/O controller for diskette drive, serial, parallel, and optional PS/2* ports
USB
Support for USB 2.0 devices
Peripheral Interfaces
10 USB ports
Two IEEE-1394a interfaces: one back panel connector and one front-panel header
One serial port
One parallel port
Six Serial ATA interfaces
One Parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
One diskette drive interface
LAN Support
Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82566DM Gigabit Ethernet Controller
BIOS
Intel® BIOS (resident in the SPI Flash device)
Support for Advanced Configuration and Power Interface (ACPI), Plug and Play and SMBIOS
Trusted Platform Module (TPM), revision 1.2
A component that enhances platform security
Instantly Available PC Technology
Support for PCI Local Bus Specification Revision 2.3
Support for PCI Express* Revision 1.0a
Suspend to RAM support
Wake on PCI, RS-232, front panel, PS/2 devices, and USB ports
Expansion Capabilities
Two PCI Conventional* bus connectors
One PCI Express x1 bus add-in card connector
One PCI Express x16 bus add-in card connector
Hardware Monitor Subsystem
Intel® Quiet System Technology implemented through the ICH8 Manageability Engine
Voltage sense to detect out of range power supply voltages
Thermal sense to detect out of range thermal values
Three fan headers •
Three fan sense inputs used to monitor fan activity
Intel® vPro™ Technology support
Provides remote management, improved security, and energy-efficient performance
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
