Products description
Intel Entry Server SE7221BK1-E Mainboard
Sockel 775 E7221 DDR2 PCIe in OVP
Technische Daten
Form Factor
ATX (12 inches by 9.6 inches)
Support for the following processors:
Support for One Boxed Intel Pentium 4 Processor (Hyper-Threading supported) with an LGA775 Socket. (Siehe bitte Liste auf der Seite von Intel)
Main Memory
Four DIMM Sockets Supporting Unbuffered DDR2 400/533 SDRAM
Error Correcting Code (ECC)-Capable
Chipset
Intel® E7221
VGA
Intel GMA Graphics integriert
PCI Adapter Card Support
PCI, PCI-X and PCI Express
1U System - One Adapter Card Slot on Riser (Riser Card nicht im Lieferumfang)
Pedestal System - Four Adapter Card Slots
Integrated High-Quality Components
Two Intel Pro/1000 Server Network Connections
Single-Channel ATA 100 Supporting Up to Two IDE Devices
Quad-Channel SATA Supporting RAID 0, 1 and 10
Peripheral Interfaces
Two serial ports (One via header onboard)
Four Universal Serial Bus (USB2.0) ports (Two via header onboard)
One IDE interfaces for up to 2 Devices
One diskette drive interface
Expansion capabilities
(1x) One PCI-E x8
(2x) Two PCI-X
(1x) One PCI
Other connectors
8x System Fan Connectors; 1x CPU Fan Connector; 1x USB_3-4 header; 1x CPU Power connector; 1x Main Power connector; 4x SATA connectors; 1x IDE connector; 1x Floppy port connector; 1x Front Panel connector; 1x Serial_B header; 1x Chassis Intruder; 1x Speaker; 1x Speaker connector; CMOS Clear; PSWD Clear; RCVR Boot; HDD LED; Bios_Sel_0
Others
Designed for the Intel Entry Server Platform SR1425BK1-E (1U-Rack) and Intel Entry Server Chassis SC5250-E.
Also compatible with a Number of Third-Party Reference Chassis
Lieferumfang

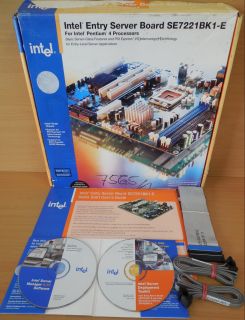

Das Mainboard, die Blende, 2x SATA Datenkabel, 1x IDE Datenkabel, Quick Start User Guide, Board-Configuration Label, Intel Server Management 8 CD Pack * ohne weiteres Zubehör * gebraucht in OVP *
Abbildung ähnlich
