Products description

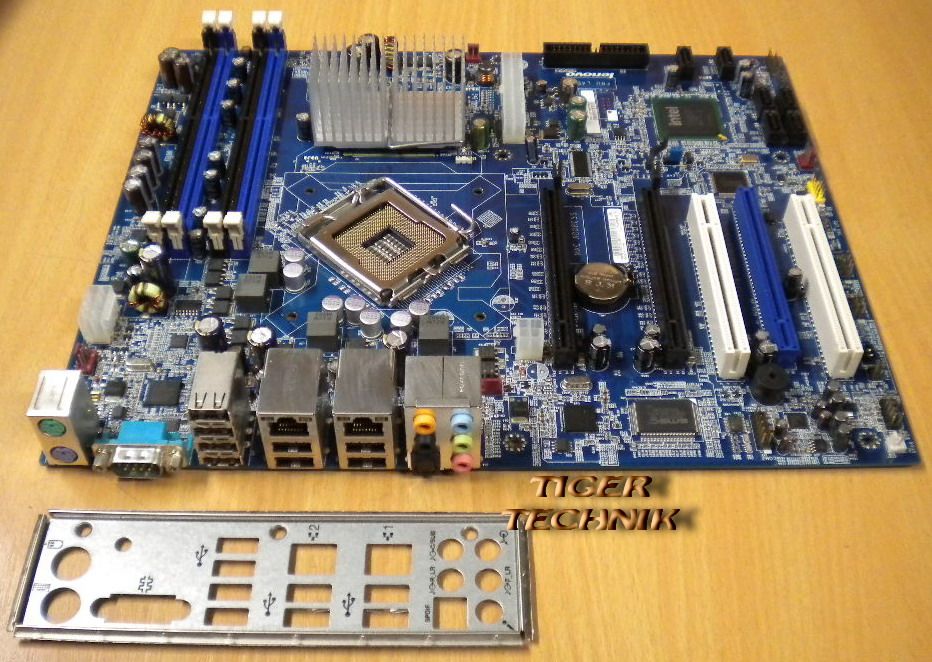

Lenovo 46R2579 Mainboard
Original Ersatzteil für den Lenovo Think Station S10
Technische Daten:
System board / Form factor
Tower (5x6) with Intel X38 chipset
Supports Intel Core™ 2 Quad™ processor with up to 8MB L2 cache
Supports Intel Core™ 2 Duo™ processor with 4MB L2 cache
Supports Intel Core™ 2 Extreme™ processor with up to 8MB L2 cache
Supports I/O bus speeds of 1067 & 1333 MHz
Processor
Intel Core™ 2 Duo processor
Intel Core™ 2 Quad processor
Intel Core™ 2 Extreme processor
Cache
8MB cache - Intel Core™ 2 Quad
4MB & 8MB cache - Intel Core™ 2 Extreme
4MB cache - Intel Core™ 2 Duo
Chipsets
X38 North Bridge - Intel 82Q35 Graphics and Memory Controller Hub (GMCH)
ICH9 South Bridge - 82801IO ICH9DO I/O Controller Hub
SMSC SCH5027D Super IO
Winbond TPM
Storage connector
6 Serial ATA Connector
1 Floppy Drive Connector
Memory
1067 MHz DDR3 ECC UDIMM
PC3-8500 memory supported
Four 1.8V, 240-pin DDR3 SDRAM UDIMM sockets
Support for up to 8 GB of DDR3 SDRAM
Use 512MB, 1GB, or 2GB memory modules in any combination up to a maximum of 8.0GB
Audio
Integrated Audio
Creative Labs X-Fi (some model)
Front - Microphone-in, Headphone-in
Rear - Line-in, line-out, Microphone-in
Keyboard and mouse
Preferred Pro USB full-size keyboard
USB Optical Wheel mouse
Networking
Integrated Broadcom 5786 Gigabit Ethernet Controller
10/100/1000
PCIe x1
External ports
9-pin serial connector
Ten USB connectors (two on front panel and eight on rear panel)
Standard mouse connector
Standard keyboard connector
Ethernet connector
VGA monitor connector
Five audio connectors (line in, line out sub/center,line out front , line out rear and microphone) on rear panel
Two audio connectors (microphone and headphone) on front panel
Slots
Two full-length, full height, PCI Express x16
One full-length, full-height, PCI Express x4
One full-length, full-height, PCI
One half-length, full-height, PCI
Lieferumfang
Das Mainboard + Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
