Products description

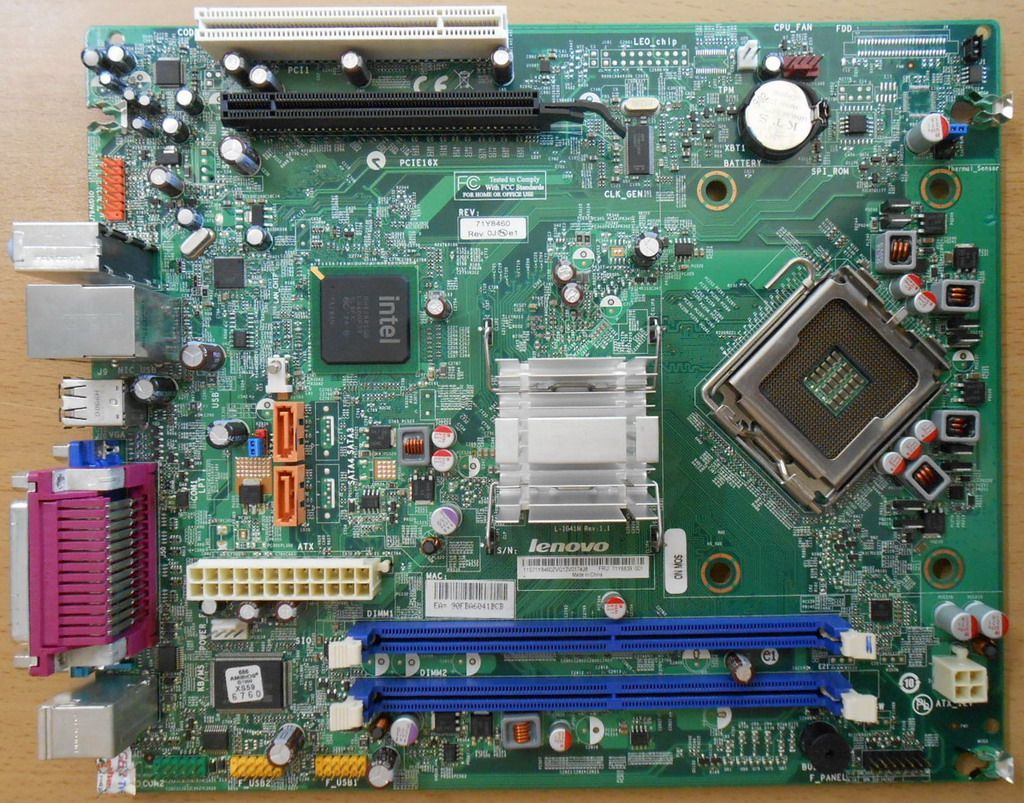

Lenovo L-IG41N Rev 1.1 Mainboard + Blende
FRU 71Y6839 REV 71Y8460 ThinkCentre A58 M58e SFF
Sockel 775 DDR2
Technische Daten
CPU
Supports Intel Celeron with 512KB L2 cache
Supports Intel Core™ 2 Duo™ processor with 3MB, 4MB, 6MB, L2-NON VT/Vpro, L2 cache
Supports Intel Core™ 2 Quad™ processor with 4MB, 6MB, 8MB, 12MB, L2 cache, 4M-non VT/Vpro
Supports Intel Pentium Dual Core™ processor with 1MB, 2MB L2 cache
Supports Intel Celeron® Dual Core™ processor with 800MHZ 512KB
Chipsatz
G41 Northbridge / ICH7 Southbridge
Main Memory
Unterstützt bis zu zwei 800 MHz DDR2 (Double Data Rate) Dual-Channel Speicher
PC2-5300 (667MHz) / PC2-6400 (800MHz) Speichergeschwindigkeiten unterstützt
512 MB, 1 GB oder 2 GB Speichermodule - Total max. 4GB
ECC- oder Parity-Speicher wird nicht unterstützt
Slots
1x PCI Express x16-Anschluss
1x PCI 2.3-Anschluss
On-Board IDE / SATA
• Serial ATA/ATA II controller integrated
- Up to 1.5Gb/sec transfer rate.
- Up to 3Gb/sec transfer rate.
- Can connect up to 2 Serial ATA drives.
Video
Integrated Graphics Adapter (Intel GMA4500)
Integrierte Grafikkarte für einen VGA-Anschluss; PCI-Express-x16-Grafikkartensteckplatz für separate Grafikkarte auf der Systemplatine
Audio
Realtek ALC662 integriert (High Definition (HD) Audio Codec)
LAN
Marvell Gigabit Ethernet
10Mbps, 100Mbps, 1000Mbps Data Rates Supported
RJ45 External Connector Type
Power management
Advanced Configuration and Power Interface (ACPI) support
Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU 4-pin / Power 4-pin
- Clear CMOS jumper
- Serial port connector (COM2)
- Thermal Sensor connector
- 2 x USB 2.0 connector support additional 4 ports
- Front Audio connector
- Front Panel connector
- 2 x Serial ATA device connectors
Back Panel I/O Ports
- 1 x VGA (Sub-D)
- 1 x Audio I/O (3 in 1)
- 4 x USB 2.0
- 1 x RJ45 LAN jack
- 1 x COM1 port
- 1 x Parallel LPT port
- 2 x PS/2
Dimension
Lenovo Small Form Faktor
Lieferumfang

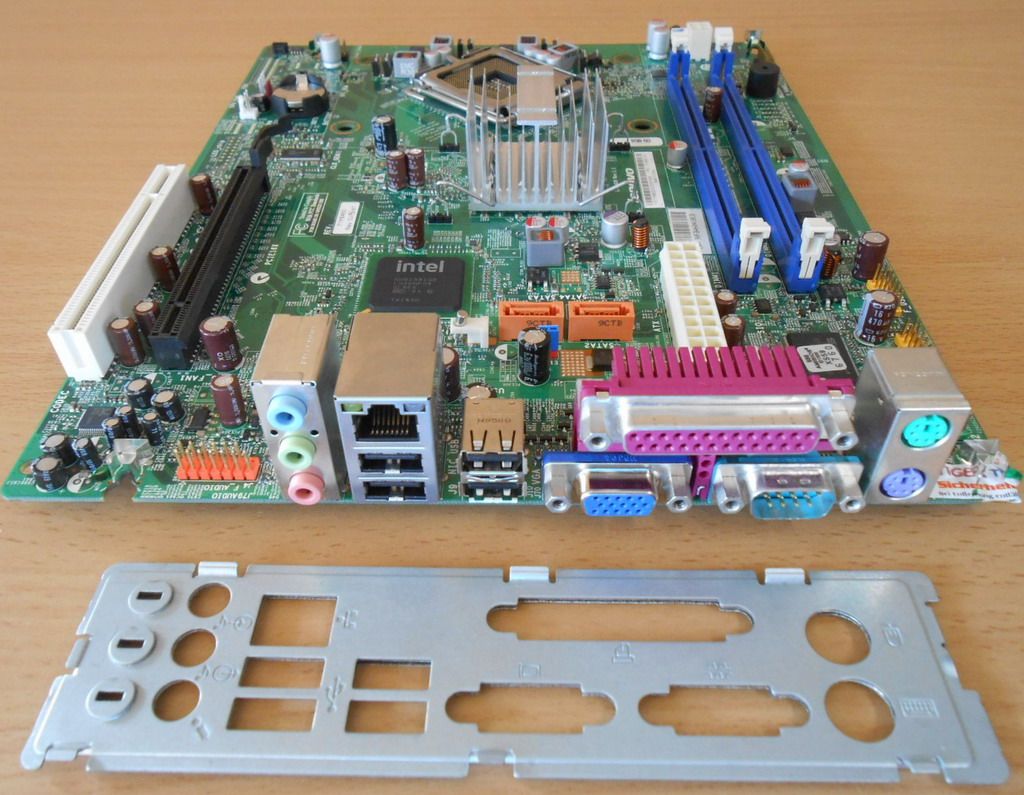

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
