Products description

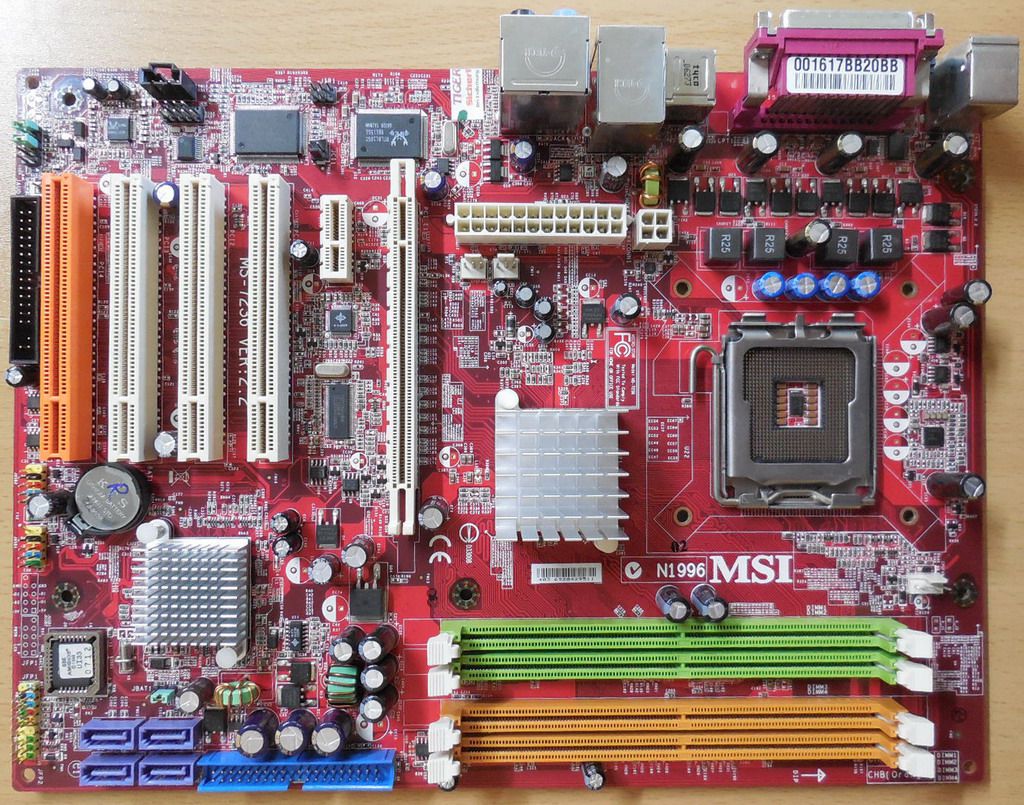

MSI 945P Neo3-F MS-7236 Ver 2.2 Mainboard +Blende Intel Sockel 775 DDR2
Technische Daten
CPU
Supports Socket 775 for Intel® Core 2 Duo, P4 5XX, 6XX, P4EE, Pentium D 8XX, 9XX and Celeron D processors.
Supports FSB 1066/800/533MHz.
Supports EIST technology, Intel® Hyper-Threading technology, Intel® Dual Core Technology to 800MHz and up.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
Intel® 945P Chipset
- Supports FSB 533/800/1066MHz; PCI-Express x16 graphics interface; Supports Dual Channel DDR2 400/533/667 (4GB Maximum)
Intel® ICH7 Chipset
- Hi-Speed USB2.0 controller 480Mb/sec up to 8 ports; 4 x SATAII ports with transfer rate up to 3Gb/s; 1 channel Ultra ATA 100 bus master IDE controller; PCI Master v2.3, I/O APIC; ACPI 2.0 compliant.
Main Memory
Supports four unbuffered DIMM of 1.8 Volt DDRII SDRAM up to 4GB memory size
Supports dual channel DDRII memory architecture
Supports DDRII 667/533/400 memory interface
Slots
One PCI Express x16 slot. (supports PCI Express Bus specification v1.0a compliant)
One PCI Express x1 slot. (support PCI Express Bus specification v1.0a compliant)
Four 32-bit v2.3 master PCI bus slots. (support 3.3v/5v PCI bus interface)
On-Board IDE/SATA
One Ultra DMA 66/100 IDE controllers integrated in ICH7.
- Supports PIO, Bus Master operation modes; Can connect up to two Ultra ATA drives
SATAII controller integrated in ICH7
- Up to 300MB/sec transfer speed; Can connect up to four SATAII devices
Audio
Realtek® ALC850 8 channels audio codec controller integrated in Intel® ICH7 chip.
- Meet PC2001 audio performance requirement; Compliance with AC97 V2.3 spec
LAN
Realtek® RTL8110SC
- Supports 10/100/1000 Mb/s; Compliance with PCI 2.2; Supports ACPI Power Management.
Internal I/O Connectors
ATX 24-Pin power connector
4-pin ATX 12V power connector
CPU 4pin / System 3pin / Power FAN 3pin connectors
CD-in connector
Clear CMOS jumper
Chassis intrusion switch connector
IrDA infrared module header
Serial port connector
Front Panel audio connector
Front Panel connector
2 x USB 2.0 connector support additional 4 ports
1 x Floppy disk drive connector
4 x Serial ATAII connectors
1 x ATA100 connector
Back Panel I/O Ports
1 x Parallel port
1 x Serial port (COM 1)
1 x PS/2 keyboard
1 x PS/2 mouse
1 x 6 in 1 audio jack
4 x USB 2.0 ports
1 x RJ45 LAN jacks
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
30.5cm(L) x 22.5cm(W) ATX Form Factor
Mounting
6 mounting holes.
Lieferumfang

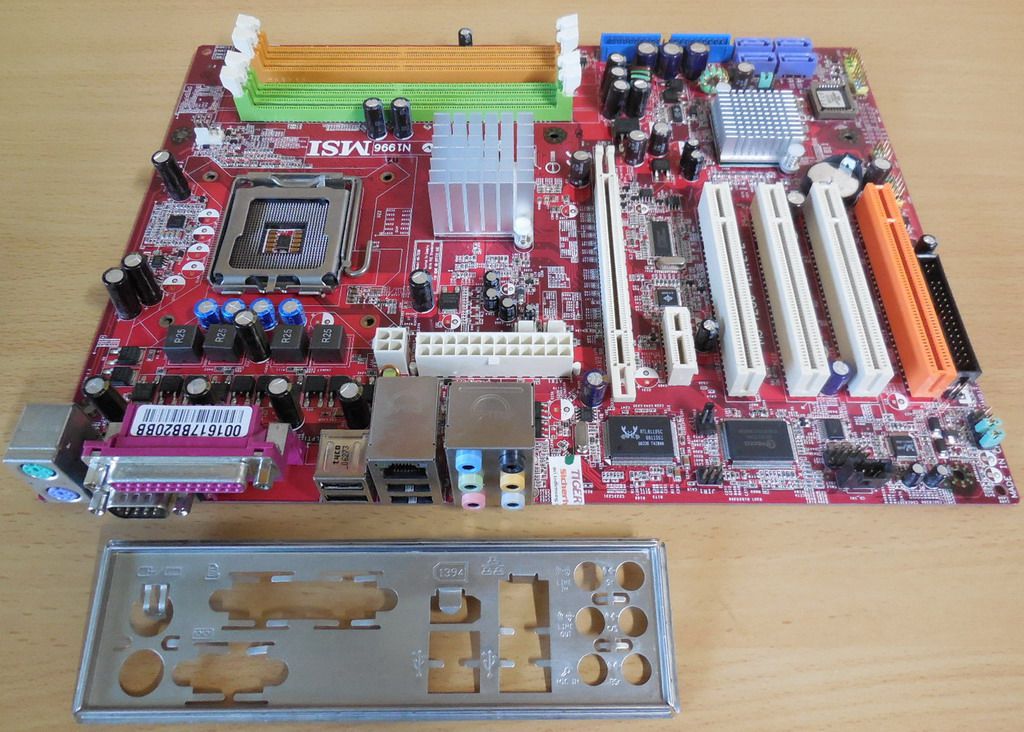

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
