Products description

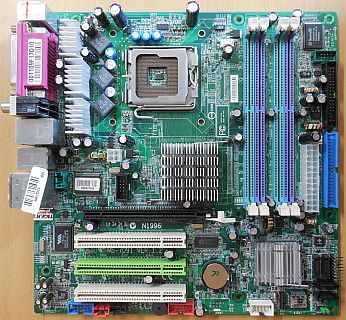

MSI MS-7091 Ver 1.2 Medion 8383XL Mainboard + Blende Sockel 775 PCIe DDR1
Technische Daten
CPU
Supports Intel Pentium 4 Prescott LGA775 processors in LGA775 package
Supports up to Pentium 4 3XX, 5XX sequence processor or higher speed
Supports Intel Hyper-Threading Technology
Chipset
Intel 915P chipset
- Supports FSB 533/800MHz
- Supports DDR 400/333 memory interface
Intel ICH6R chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 6 ports
- 4 Serial ATA ports with transfer rate up to 150 Mbytes/sec
- 1 channel Ultra ATA 100 bus Master IDE controller
- PCI Master v2.3, I/O APIC
- ACPI 2.0 Compliant
- Serial ATA 150 RAID 0, RAID 1 and Matrix RAID
- Integrated AHCI controller
Main Memory
Supports 4 x DDR1 SDRAM memory modules
Supports up to 4GB memory size
Supports Dual channel
Slots
1 x PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)
3 x 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)
The second PCI slot (PCI2, in green color) supports 2 master devices
On-Board IDE & SATA
One Ultra DMA 66/100 IDE controllers integrated in ICH6R
- Supports PIO, Bus Master operation modes
- Can connect up to Two Ultra ATA drives
Serial ATA 150 controller integrated in ICH6R
- Up to 150MB/sec transfer speed
- Can connect up to four Serial ATA devices
On-Board Peripherals
On-Board Peripherals include:
1 x floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
1 x serial port
1 x parallel port supports SPP/EPP/ECP mode
6 x USB 2.0 / 1.1 ports (Rear*4 / Front*2)
1 x RJ45 connector
1 x Rear 1394 port (6 Pins) / 1 x Front 1394 port
1 x Coaxial SPDIF-Out / SPDIF-In, 1 x Optical SPDIF-Out / SPDIF-In
1 x MIC-In
4 x Line-Out
1 x Line-In
LAN
VIA® VT6106L LAN Controller
- 10/100 IEEE 802.3/802.3u 10Base-T & 100Base-T compliant
IEEE 1394
VIA® VT6307 PCI 1394a Integrated Host Controller
Audio
Azalia link controller integrated in Intel ® ICH6R chipset
8-channel audio codec CMedia CMI9880L
BIOS
The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications
Mounting and Dimension
M-ATX Form Factor: 24.38 cm (L) x 24.38 cm (W); 6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
