Products description

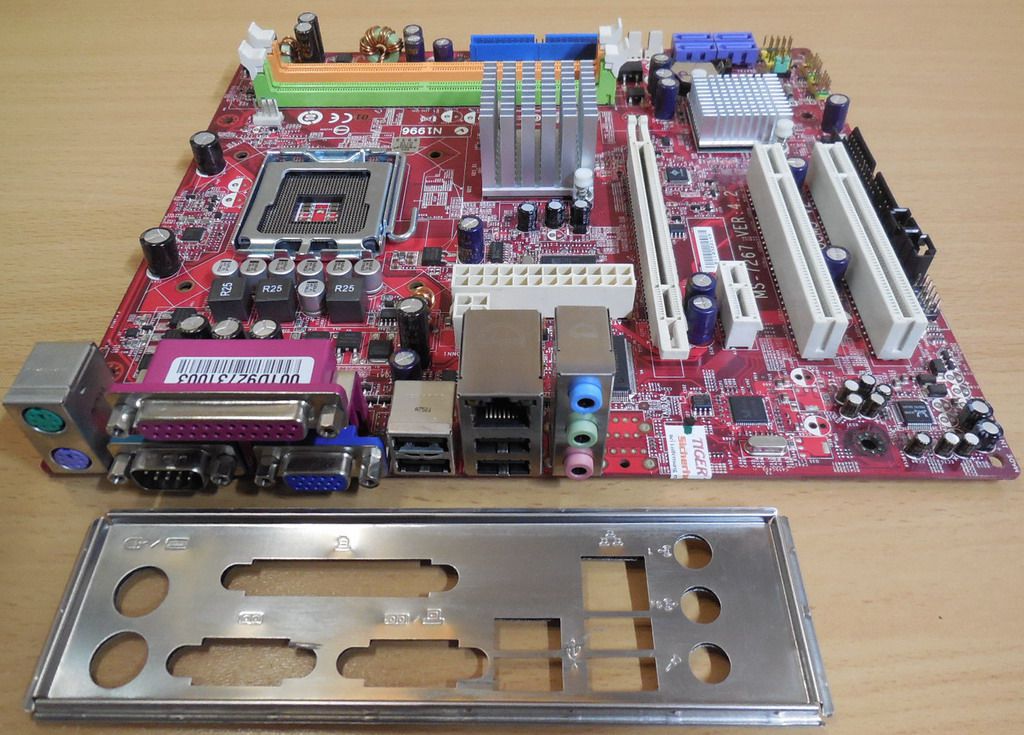

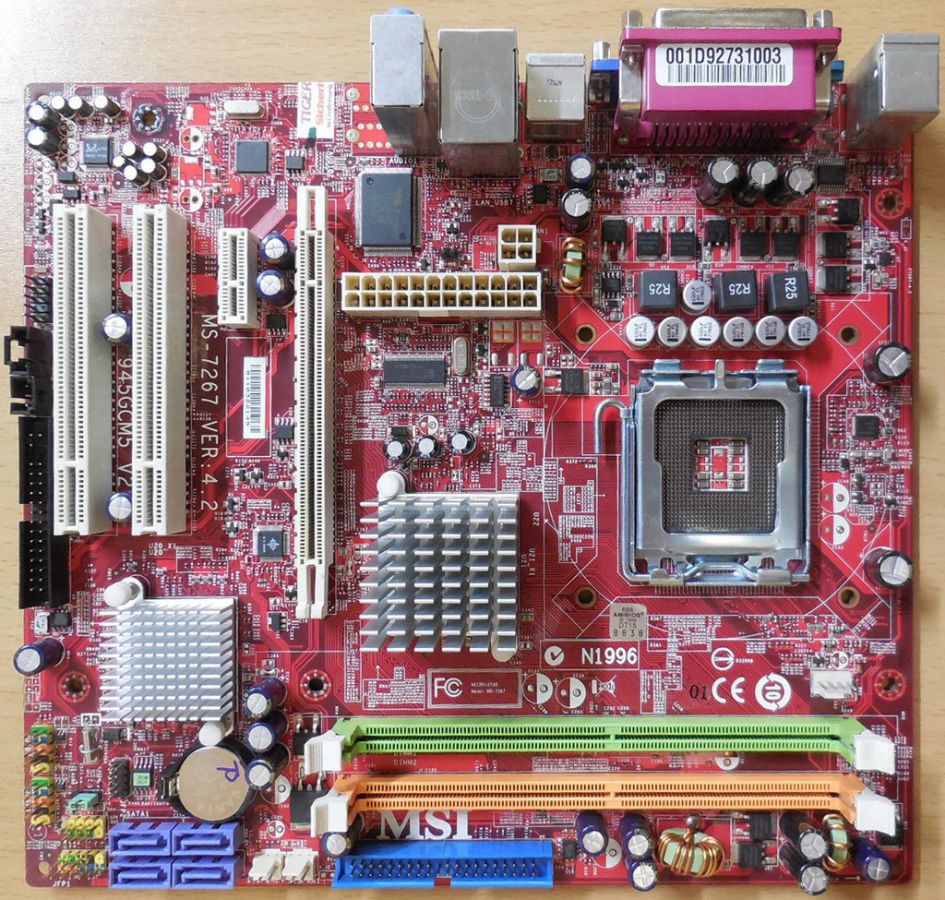

MSI MS-7267 Ver 4.2 945GCM5 V2 Mainboard + Blende Sockel 775 Intel Maxdata OEM
Technische Daten
CPU
Supports Socket 775 for Intel® Core 2 Duo, P4 5XX, 6XX, Pentium D 8XX, 9XX and Celeron D processors.
Supports EIST technology; Intel® Hyper-Threading technology.; Intel® Dual Core Technology to 800MHz and up.
(For the latest information about CPU, please visit the MSI Website)
Chipsatz
Intel® 945GC (NB) + Intel® ICH7 (SB)
Front Side Bus
800 / 533 MHz
Memory
2 x DIMM, max. 4GB, DDR2 667 / 533 / 400 MHz, non-ECC, un-buffered memory
Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI (Supports 3.3V/5V PCI bus interface)
VGA
Integrated Intel Graphics Media Accelerator 950
Max. resolution: 2048x1536 @75Hz, Vertical: 85Hz@ up to 1920x1440
Storage
4 x SATA 3.0 Gb/s ports for up to 4 SATA devices
1 x UltraDMA 100/66 for up to 2 PATA devices; Supports PIO, Bus Master operation modes
1 x Floppy port; Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB
LAN
10/100 Mb/s Fast Ethernet by Realtek RTL 8101E
Audio
Realtek® ALC888, 7.1-channel High-Definition Audio CODEC
Vista Premium compliance; Compliant with Azalia Rev 1.0 spec.
USB
8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA port
1 x Parallel port (SPP/EPP/ECP)
1 x COM Port
1 x RJ45 port
4 x USB 2.0
7.1-channel HD Audio I/O
Internal I/O Connectors
2 x USB2.0 connectors support additional 4 USB2.0 ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x SYS Fan 1 connector
1 x SYS Fan 2 connector
Front panel audio connector
1 x S/PDIF Out Header
CD audio in
24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
System Panel
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Form Factor
uATX Form Factor 24.5cm x 22.5cm; 6 mounting holes
ausgebaut aus einem Maxdata PC
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
