Products description

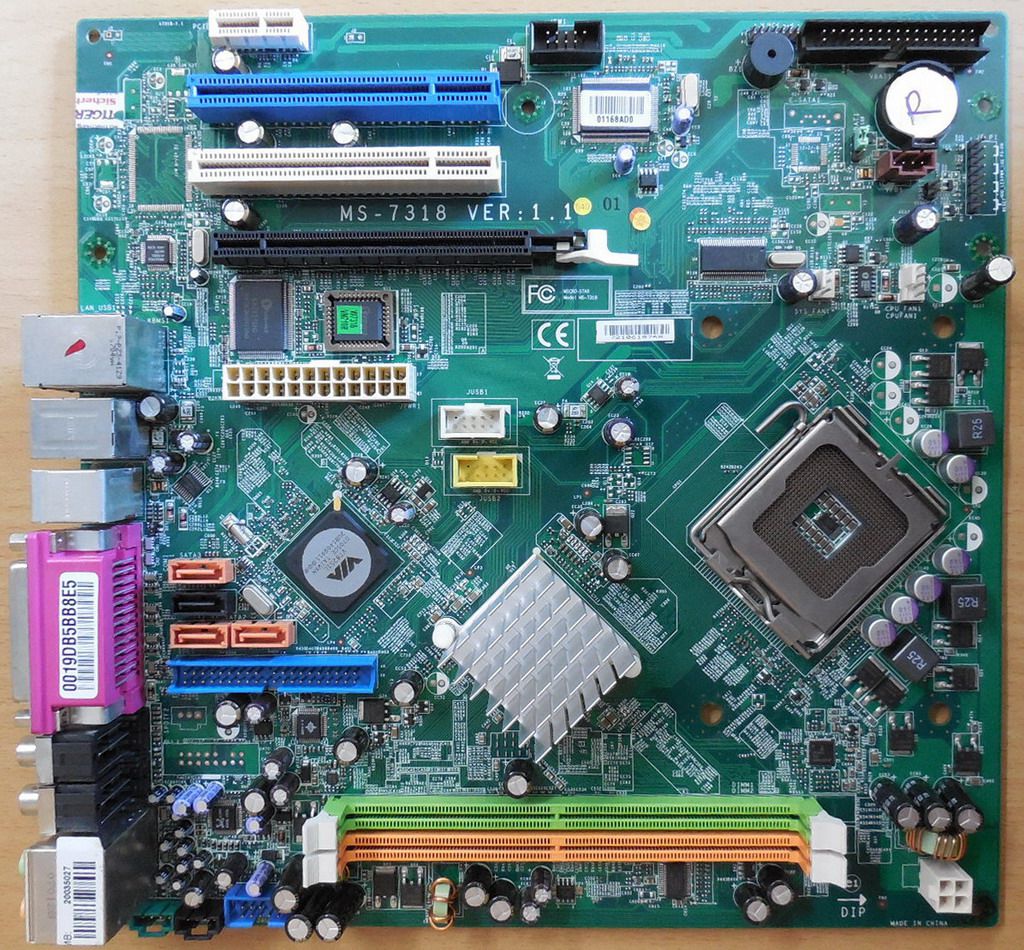

MSI MS-7318 Ver 1.1 Medion MD 8818 8822 Mainboard + Blende Sockel 775 DDR2 PCIe mBTX
Technische Daten
CPU
Supports Intel LGA775
Chipset
VIA PT890CE Northbridge and VT8251L Southbridge Chipset
Main Memory
Supports Single Channel DDR2 533 (240pin / 1.8V)
2 x DDR2 DIMMs slots (2GB Max. memory size)
Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots (1x PCI blau für Medion/Creatix Combo-Karten)
On-Board SATA
4 x SATA ports; Supports storage and data transfers at up to 150MB/s
Audio
8-channel Audio Chipset integrated by Realtek® ALC888
LAN
Supports 10/100 Fast Ethernet by Realtek 82001CL
IEEE1394
Chipset integrated by VT6308P with transfer rates up to 400Mbps
Internal I/O Connectors
1 x ATX 24-pin power connector
1 x ATX 4-pin 12V CPU power connector
1 x CPU connector (4-pin)
1 x System FAN connector (3-pin)
1 x Front Audio Panel connector
1 x Front Line connector
1 x Scart Output connector
1 x Front System Panel connector
1 x Clear CMOS jumper
1 x JSMI1 jumper
1 x Front LCD Panel connector
1 x Buzzer
1 x FWH/LPC Debugging connector
1 x IEEE1394 connector support additional 1 port
2 x USB 2.0 connectors support additional 4 ports
4 x Serial ATA connectors
1 x IDE connector for up to two devices
1 x Floppy/FDD connector
Back Panel I/O Ports
1 x Digital Audio IN SPDIF Coaxial
1 x Digital Audio IN SPDIF Optical
1 x Digital Audio OUT SPDIF Coaxial
1 x Digital Audio OUT SPDIF Optical
5 x Audio jacks (Front, Back surround, Center/Subwoofer, Side Surround, Line-IN)
1 x IEEE1394 Port
4 x USB 2.0 ports
1 x RJ45 LAN jack
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x Serial port (COM)
1 x Parallel port (LPT)
Dimension
ca. 26.7cm(L) x 26.5cm(W); M-BTX Form Factor
Lieferumfang

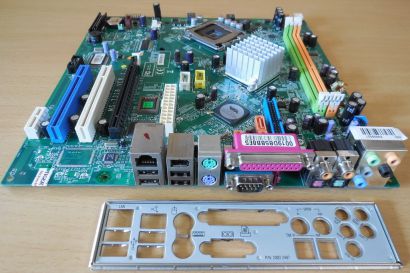

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
