Products description

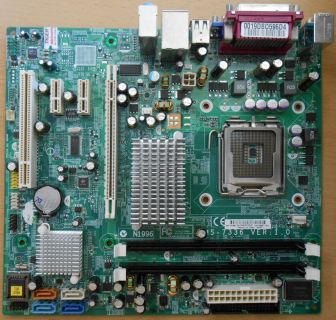

MSI MS-7336 Ver 1.0 HP 441388-001 440567-002
Mainboard Sockel 775 PCIe SATA
Technische Daten
ausgebaut aus einem HP/Compaq dx2300-er Serie PC.
CPU Support
Intel Core 2 Duo (Conroe, Allendale)
Intel Pentium Dual-Core (Allendale)
Intel Pentium D (Smithfield, Presler)
Intel Pentium 4 Extreme Edition (Gallatin, Prescott 2M)
Intel Pentium 4 (Prescott, Prescott 2M, Cedar Mill)
Intel Celeron Dual-Core (Allendale)
Intel Celeron (Conroe-L)
Intel Celeron D (Prescott, Cedar Mill)
Chipset
Intel 946GZ (Lakeport) / ICH7 (82801GB)
NB/SB interconnection via Direct Media Interface with 2 GB/s (4 DMI lanes, 1 GB/s each direction)
Supports FSB 533/800 (133/200 MHz QDR)
Supports 128 bit memory interface (Dual Channel)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Universal Serial Bus (USB 2.0/1.1)
Supports PCI Express (PCIe 1.1)
Supports PCI v2.3
Supports Serial ATA 3.0 Gbit/s
Memory
2 x 240-Pin DIMM sockets supporting DDR2-SDRAM
Supports up to 2 DIMMs DDR2 533/667
Supports up to 2 GB DIMMs
Supports max. 4 GiB RAM
Supports 128 bit memory interface (Dual Channel)
Graphics
Intel GMA 3000 IGP
Supports up to 256 MB shared memory
Supports Pixel Shader Model 2.0
Supports Vertex Shader Model 2.0/3.0 (Software)
Microsoft DirectX 9.0c compliant
OpenGL 1.4 compliant
Audio
ICH7 integrated Intel HD Audio controller
Realtek ALC888 HD Audio codec
Supports High Definition Audio
LAN
ICH7 integrated Intel Pro/100 VE MAC / Intel 82562GT PHY
Supports 10/100M Fast Ethernet
Internal I/O
1 x PCIe x16
2 x PCIe x1
1 x PCI
4 x SATA
1 x Floppy port
2 x USB 2.0/1.1 headers
1 x RS-232 header (COM)
1 x Front Panel audio header
Back Panel I/O
1 x PS/2 keyboard
1 x PS/2 mouse
4 x USB 2.0/1.1 ports
1 x VGA port
1 x RJ45 (LAN)
1 x RS-232 port (COM)
1 x Parallel port (LPT)
Audio connectors (line-out, line-in, mic-in)
BIOS
8 MBit Flash EEPROM (PLCC32)
Phoenix - AwardBIOS v6.00PG
Supports Plug-and-Play (PNP)
Supports Advanced Power Management (APM)
Supports Advanced Configuration and Power Interface (ACPI)
Supports Desktop Management Interface (DMI)
Miscellaneous
Micro-ATX form factor
24 pin ATX power connector
4 pin 12V power connector
Winbond W83627DHG hardware monitoring and Super I/O chip
MSI MS-7G ACPI controller
Silego SLG84516BT clock generator (PLL)
Intersil ISL6312 multiphase PWM controller (2-/3-/4-phase operation)
1 x 4-pin FAN header
1 x 3-pin FAN header
6 mounting holes
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
