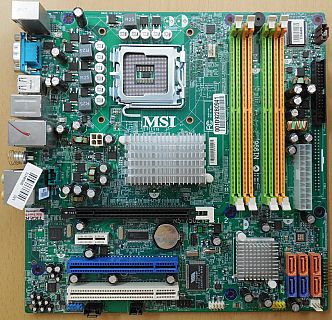

MSI MS-7502 Ver 1.2 Medion MD8828 Mainboard + Blende Sockel 775 Intel G33
Technische Daten
CPU
Intel Core 2 Quad / Core 2 Duo / Dual-Core (E2xxx) processors in the LGA775 package
FSB
1333 / 1066 / 800 MHz
Chipset
Intel G33 chipset Northbridge + Intel ICH9DH chipset Southbridge
Memory Support
4 x DDR2 DIMMs (240pin / 1.8V); DDR2 800 / 667 SDRAM; max. 8GB
Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
1 x PCI white slot support 3.3V/ 5V PCI bus Interface, support 1 device
1 x PCI blue slot, support 3.3V/ 5V PCI bus interface, support 2 devices
LAN
Supports PCIE LAN 10/100 Fast Ethernet by Intel 82562V
Audio
Chip integrated by Realtek ALC888S
Flexible 8-channel audio with jack sensing
Supports 2 SPDIF-out (coaxial & optical)
Compliant with Azalia 1.0 Spec
Meet Microsoft Vista Premium spec
SATA
6 x SATAII ports by ICH9DH
Supports storage and data transfers at up to 300 MB/s
IEEE1394 Firewire
Supports IEEE1394 by VIA VT6308
FDD
1 x floppy port
Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB
Back panel
1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x Serial port
6 x USB 2.0 Ports
1 x IEEE1394 Firewire port
1 x LAN jack (10/100)
5 x flexible audio jacks
1 x Optical SPDIF-Out port
1 x Coaxial SPDIF-Out port
Internal I/O Connectors
ATX 24-pin power connector
ATX 4-pin 12V CPU power connector
1 x CPU FAN connector
1 x SYS FAN connector
3 x USB 2.0 connectors for additional 6 USB2.0 ports
1 x IEEE1394 Firewire connector
1 x SPDIF-out connector
1 x AUX-in connector
1 x Front Audio connector
1 x JVFD connector
1 x SCART-Out connector
1 x Floppy connector
6 x SATAII connectors
1 x JSPI1 connector
1 x JSMI1 connector
1 x Buzzer
Form Factor
Micro-ATX (24.5cm X 24.5cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
