Products description

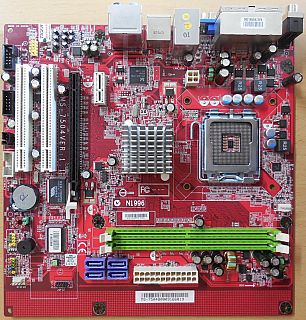

MSI MS-7504 Ver 1.0 Mainboard + Blende Sockel 775 FSC OEM VGA DDR2 LAN Audio
Technische Daten
CPU
Intel® CoreTM 2 Quad, CoreTM 2 Duo, Pentium® and Celeron® processors in the LGA775 package
1333MHz FSB supported
Chipset
NVIDIA® MCP73PV single chipset
Main Memory
DDR2 533 / 667 / 800 SDRAM (240pin / 1.8V); 2 x DDR2 DIMMs (Max. 4GB)
Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots, support 3.3V / 5V PCI bus Interface
Storage
4 x SATA ports by NVIDIA® MCP73PV for up to four SATA devices
Supports storage and data transfers at up to 3Gb/s
SATA1~4 support RAID 0 / 1 / 5 / 0+1 mode
LAN
Supports 10 / 100 / 1000 Gigabit Ethernet LAN by Realtek® RTL 8211BL
IEEE 1394
Chip integrated by VIA® VT6308P; Transfer rate is up to 400Mbps
Audio
Chip integrated by Realtek® ALC888S
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
Interne I/O Anschlüsse Echtzeituhr/Kalender mit Batteriepufferung
4 x SATA2 Connectors for up to 4 SATA Devices
1 x 4-pin CPU FAN Connector
1 x 4-pin System FAN Connector
1 x JSPI2 Flash Connector
1 x JAudio1 Front Audio Connector
1 x JSPD1 SPDIF Connector
1 x JFP1 Front Panel Connector
1 x JFP2 Power LED / Internal Speaker Connector
1 x IEEE1394 Firewire Connector
1 x CMOS Jumper
2 x USB2.0 Connectors für 4 weitere optionale USB Ports
1 x Buzzer
1 x 24-pin ATX Power Connector
1 x 4-pin 12V Processor Power Supply Connector
Rückseite I/O Panel
1 x Optical SPDIF
1 x Coaxial SPDIF
1 x IEEE1394 Firewire
6 x USB2.0
1 x VGA
1 x RJ-45 LAN
8-ch Audio jacks 6 x 3,5 mm Klinke
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. Modified and Adapted AMIBIOS by Fujitsu.
Dimension
Micro ATX Form Factor; ca. 24.4cm x 24.4cm
Mounting
8 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
