Products description

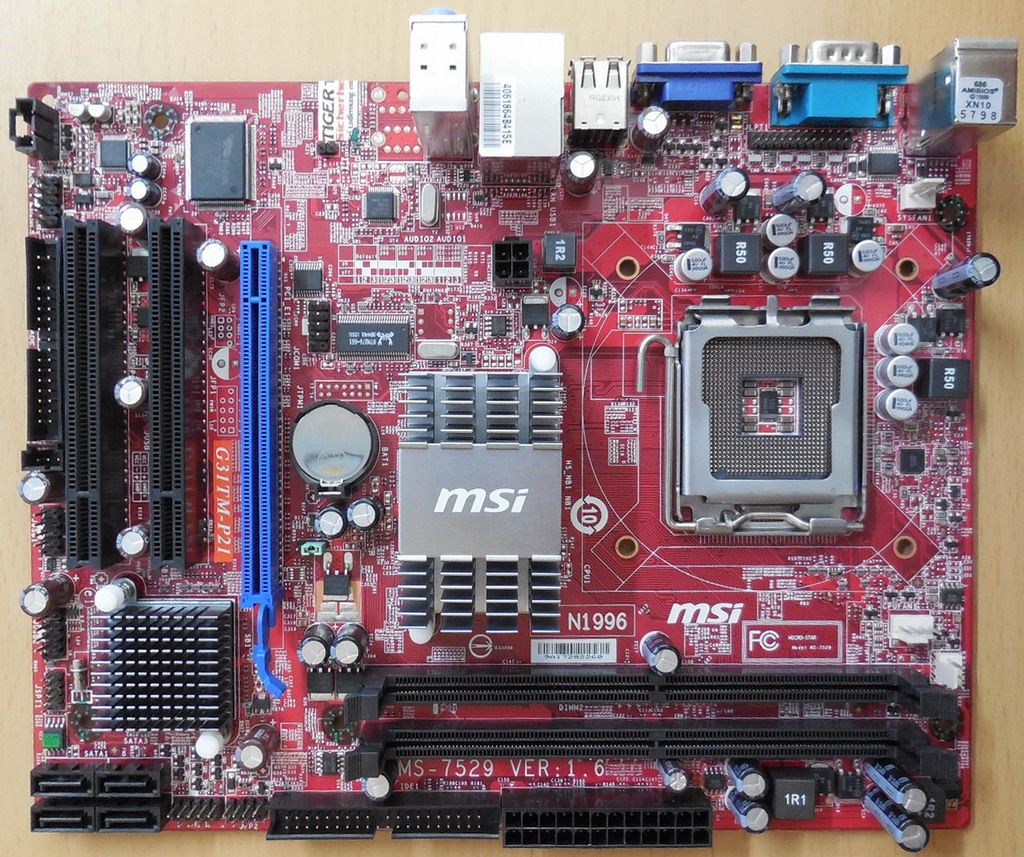

MSI MS-7529 Ver 1.6 G31TM-P21 Mainboard + Blende Intel G31 Sockel 775 VGA LAN Audio PCIe
Technische Daten
CPU
Intel® Core 2 Quad, Core 2 Duo, Pentium and Celeron in the LGA775 package
Please refer to CPU Support List of the MSI Website for compatible CPU; the above description is for reference only
Chipset
Intel® G31 Chipset
- Supports FSB 800/1066/1333/1600* (OC) MHz
- Supports dual channel, DDR2 667/800
- Integrated Intel® Graphics Media Accelerator 3100
- 2048 x 1536 X32bpp Max. resolution; Horizontal 127.5KHz - Vertical 75Hz
Intel® ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports
- 4 SATA ports with transfer rate up to 3Gb/s
- PCI Master v2.3, I/O APIC
Main Memory
Supports two unbuffered DIMM of 1.8 Volt DDR2 DRAM
Supports up to 8GB memory size
Supports dual channel DDR2 memory architecture
Supports DDR2 667/800 memory interface
Due to the limitation of G31 chipsets, dual channel support must meet some requirement in the specification of memory modules. please refer to Test Reports for detailed description
Slots
1 x PCI Express x16 slot (PCI Express Bus SPEC V1.0a compliant)
2 x PCI slots (support 3.3V/ 5V PCI bus Interface)
On-Board IDE/SATA
One Ultra DMA 66/100 IDE controller integrated in ICH7 (Supports PIO, Bus Master operation modes. Can connect up to two Ultra ATA drives.)
SATA controller integrated in ICH7 (Supports four SATA ports up to 3Gb/s transfer speed)
Realtek® ALC888S Audio
Flexible 7.1-channel audio with retasking
Compliant with Azalia 1.0 Spec
Meet Microsoft Vista Premium SPEC
To reach the 8-channel sound effect, the 7th and 8th channels must be output from front panel if you purchase the motherboard with 3 audio jacks.
LAN
PCIe LAN 10/100 Fast Ethernet by Realtek 8103EL
On-Board Pinheaders / Connectors
1 x ATX 24-pin power connector
1 x ATX 4-pin 12V CPU power connector
1 x 4-pin CPU FAN connector
2 x 3-pin System FAN connector
1 x CD-in connector
1 x Front panel audio connector
1 x JFP1 Front panel connector
1 x JFP2 Front panel connector
1 x Chassis intrusion switch connector
2 x USB 2.0 connectors support additional 4 ports
1 x Floppy disk drive connector
4 x Serial ATA II connectors
1 x ATA133 IDE connector
1 x Clear CMOS jumper
1 x JCOM1 Serial port connector
1 x SPDIF-out header
1 x JLPT1 Parellel port connector
1 x JSPI1 Header
Back Panel I/O Ports
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Serial port (COM 1)
1 x Graphics Card port
1 x 3 in 1 audio jack
4 x USB 2.0 ports
1 x RJ45 LAN jack
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications
Dimension
24.4cm(L) x 19.3cm(W); Micro-ATX Form Factor
Mounting
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
