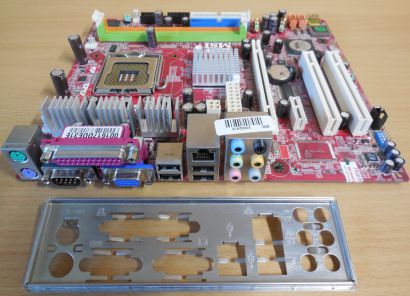

MSI P4M890M MS-7255 Ver 1.2 Mainboard +Blende Sockel 775 PCIe x16 SATA DDR2
Technische Daten
CPU
Supports Socket 775 for Intel® P4 3xx/ 5xx/ 6xx/ Pentium D, Celeron D, Core 2 Duo processors.
Supports FSB 1066/800/533MHz.
Supports 3/4 pin CPU Fan Pin-Header with Fan Speed Control.
Supports EIST Technology
Supports Hyper-Threading (HT) Technology
Supports Intel Dual Core Technology
*we recommend to use processors with 95W power consumption.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
VIA® P4M890 Chipset
Supports P4 processor FSB 1066/800/533MHz
Supports DDR2 533/400 memory
VIA® VT8237A Chipset
Ultra DMA 33/66/100/133 master mode.
ACPI & PC2001 compliant enhanced power management.
Supports USB 2.0 up to 8 ports.
Main Memory
Supports two unbuffered 240-pin DIMM of 1.8 Volt DDR2 SDRAM
Supports up to 2GB memory size.
Supports DDR2 400/533 memory interface.
Slots
One PCI Express x 16 slot
One PCI Express x 1 slot
Two PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).
On-Board IDE
An IDE controller on the VT8237A chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 133/100/66/33 operation modes. Can connect up to four IDE devices.
Serial ATA controller integrated in VT8237A; Up to 1.5Gb/sec transfer rate. (VT8237A); Can connect up to 2 Serial ATA drives.
Audio Chip integrated by VIA® VT1708
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.x HD audio
LAN
Supports 10/100 Fast Ethernet by VIA VT6103L
Internal I/O Connectors
ATX 24-Pin power connector
4-pin ATX 12V power connector
CPU / Power / System fan connectors
CD-in connector
Clear CMOS jumper
2 x USB 2.0 connector support additional 4 ports
Front panel audio connector
Front panel connectors
1 x Floppy disk drive connector (360K, 720K, 1.2M, 1.44M and 2.88Mbytes)
2 x Ultra DMA 133 IDE device connectors
2 x Serial ATA device connectors
Back Panel I/O Ports
1 x Parallel
1 x Serial port (COM 1)
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Audio I/O (6 in 1)
4 x USB 2.0
1 x RJ45 LAN jack
1 x Sub-D Graphics Card port
BIOS
The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications.
Dimension
24.4 cm(L) x 21.0 cm(W) M-ATX Form Factor
Mounting
6 mounting holes.
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
