Products description

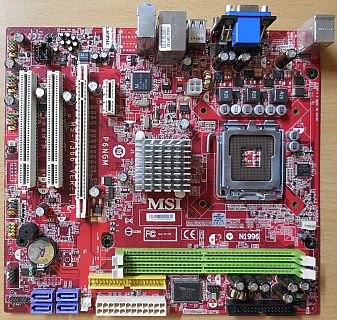

MSI P6NGM MS-7366 Ver 1.0 Mainboard + Blende Sockel 775 DDR2 DVI VGA PCIe
Technische Daten
Model
Hyrican PC PCK03324 OEM (EAN 4045643033240)
Processor Support
Supports Intel® Core 2 Quad, Core 2 Duo, Pentium, Celeron processors in the LGA775 package. (For the latest information about CPU, please visit the MSI Website)
Supported FSB
Supports FSB up to 1333 MHz
Chipset
Nvidia MCP73PV chipset
Memory Support
DDR2 533/667/800 SDRAM (240pin/ non-ECC)
2 x DDR2 DIMMs (Max. 4GB)
(For more information on compatible components, please visit the MSI Website)
LAN
Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL 8211BL
Audio
Chip integrated by Realtek® ALC888
Compliant with Azalia 1.0 Spec
IDE
1 x IDE port by MCP73PV; Supports Ultra DMA 66/100/133, PIO & Bus Master operation mode
SATA
4 x SATAII ports support 4 SATA devices
RAID
SATA1~4 support RAID 0, 1, 5 ,0+1, JBOD
Floppy
1 x Floppy port; Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB
Back Panel
1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x VGA port
1 x DVI port
4 x USB 2.0 Ports
1 x LAN jack
3 x audio jacks
On-Board Pinheaders
3 x USB 2.0 pinheaders
1 x Chassis Intrusion Switch pinheader
1 x Serial port pinheader
1 x SPDIF-Out pinheader
1 x Front Panel Audio pinheader
1 x Front Panel header
1 x CD-In pinheader
1 x TPM pinheader
1 x 4-pin CPU FAN connector
1 x 3-pin System FAN connector
Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots, support 3.3V/ 5V PCI bus Interface
Form Factor
micro-ATX (24.4cm X 22.0cm)
Mounting
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
