Products description

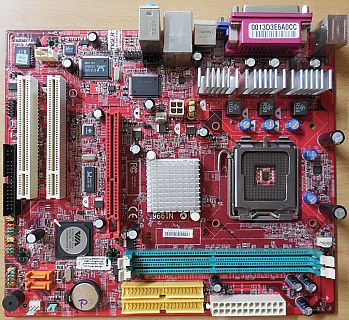

MSI PM8M3-V H MS-7211 Ver 3.0 Mainboard + Blende Sockel 775 AGP 8X SATA 5.1 Audio
Technische Daten
CPU
Supports Intel® Pentium® 4 / Prescott (LGA 775) processor.
FSB @ 800/533MHz.
Supports Intel P4 Prescott CPU up to 3.2GHz, and Intel P4 Prescott Celeron CPU.
(For the latest information about CPU, please visit the MSI Website)
Chipset
VIA® P4M800CE chipset
- P4 processors FSB (800MHz)
- DDR SDRAM memory (333/400MHz)
- AGP 8x
- Supports 8X V-Link
VIA® VT8237R plus chipset
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
- ACPI & PC2001 compliant enhanced power management
- Supports USB2.0 up to 8 ports
Main Memory
Supports two memory banks using two 184-pin DDR DIMM.
Supports up to 2GB PC3200 (DDR400) SDRAMs.
Supports 2.5v DDR SDRAM.
(For the updated supporting memory modules, please visit the MSI Website)
Slots
1 x AGP (Accelerated Graphics Port) 8x slot.
2 x PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE
An IDE controller on the VIA VT8237R plus Chipset provides IDE
HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100/133 operation modes.
Can connect up to four IDE devices.
Audio
AC97 link controller integrated in VT8237R plus.
Realtek® ALC655 6-channel software audio codec.
- Compliance with AC’97 v2.2 spec.
LAN
Realtek® 8100C
- Supports 10Mb/s and 100Mb/s
- Compliance with PCI 2.2.
- Supports ACPI Power Management.
On-Board Peripherals
1 x floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
1 x serial port (COM1)
1 x parallel port supports SPP/EPP/ECP mode
8 x USB 2.0 ports (Rear * 4/ Front * 4)
1 x Audio jacks (Line-In/Line-Out/Mic)
1 x RJ45 LAN jack
1 x VGA port
1 x COM2 pin header
2 x SATA 150 ports
2 x IDE ports (Ultra DMA 66/100/133)
Other Onboard Connectors
1 x 24-pin ATX Power
1 x 4-pin CPU Power
1 x CD_IN
1 x AUX_IN
1 x Chassis Intrusion connector
1 x CMOS Jumper
1 x Bios Flash Protect Jumper
1 x Front Panel connector
1 x Front Audio connector
1 x CPU FAN connector (4-pin)
1 x Power FAN connector (3-pin)
1 x System FAN connector (3-pin)
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
Micro-ATX Form Factor: 245mm x 210mm
Mounting
6 mounting holes.
Lieferumfang
Das Mainboard + Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
