Products description

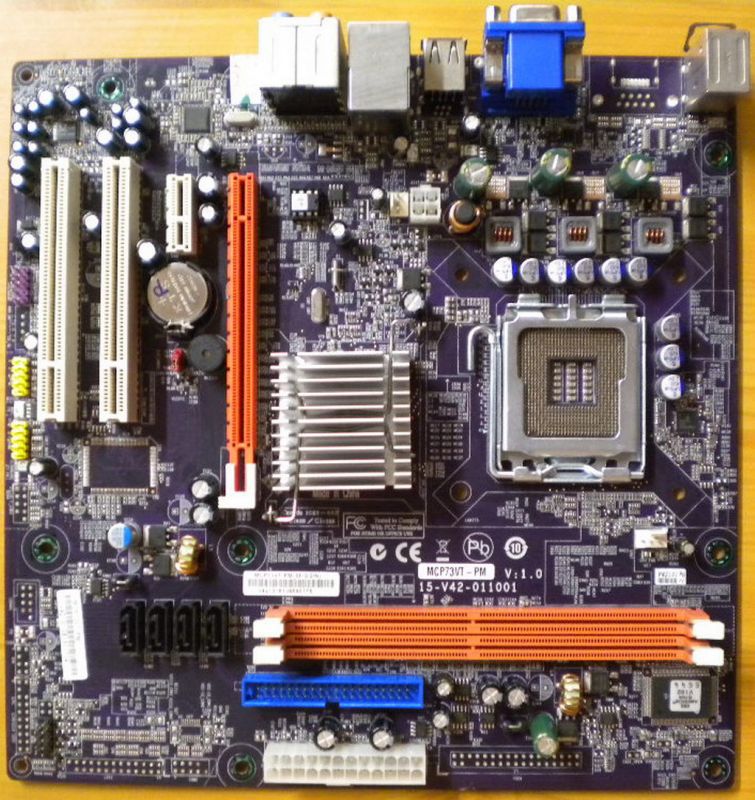

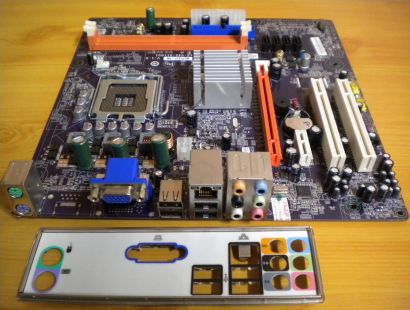

Packard Bell BV MCP73VT-PM V1.0 Mainboard + Blende
Sockel 775 PCIe SATA DDR2
Technische Daten
Processor
Socket LGA775 for Intel Core™ 2 Duo / Pentium® D Processor; Support Hyper-Threading Technology
FSB
1333/1066/800/533 MHz
Chipset
GeForce 7100 / 610i (MCP73V)
Memory
Single-channel DDR2 memory architecture
2 x 240-pin DDR DIMM socket support up to 8 GB
Support DDR2 667/533/400 DDR2 SDRAM
Audio
Realtek ALC888/1200 8-channel HD Audio codec
Compliant with HD audio specification
Storage
Support by NVIDIA GeForce 7050/610I
- 1 x Ultra DMA133/100/66 port
- 4 x Serial ATAII 3.0Gb/s devices
RAID 0, RAID 1 configuration
Internal
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x IDE connector
4 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB ports
1 x Front panel switch/LED header
1 x Front panel audio header
CPUFAN/SYSFAN connectors
External
1 x PS/2 keyboard & PS/2 mouse connectors
1 x VGA port
1 x RJ45 LAN connector
4 x USB ports
1 x Audio port 8 CH 6 JACKS
Expansion Slots
1 x PCI Express x1 slot
1 x PCI Express x16 slot
2 x PCI slots
BIOS
AMI BIOS with 8Mb SPI ROM
Supports Plug and Play , ACPI& DMI
Supports STR(S3)& STD(S4)
Onboard LAN
Realtek RTL8101E Family PCI-E Fast Ethernet NIC
Video
On Chip NVIDIA GeForce 7 Series Graphics Processing Unit (GPU)
Share Memory: Maximum up to 256MB
Form Factor
microATX 9.60 inches x 9.60 inches (244 millimeters x 244 millimeters)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
