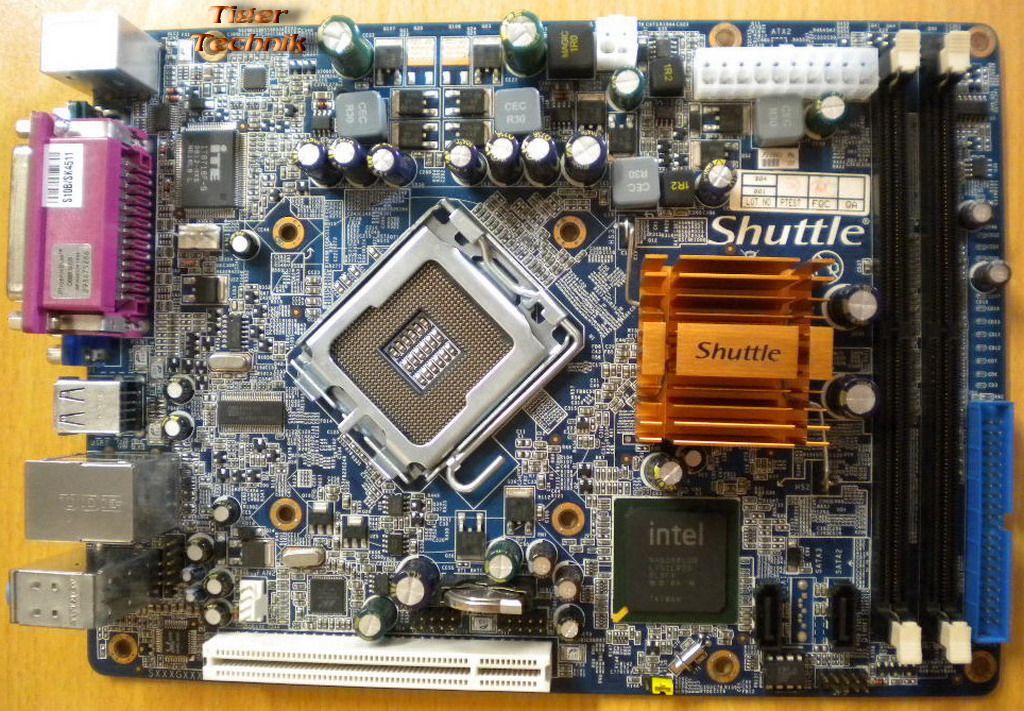

Shuttle KPC K45 Mainboard FM10(S5140) V1.0 + Blend

Products description

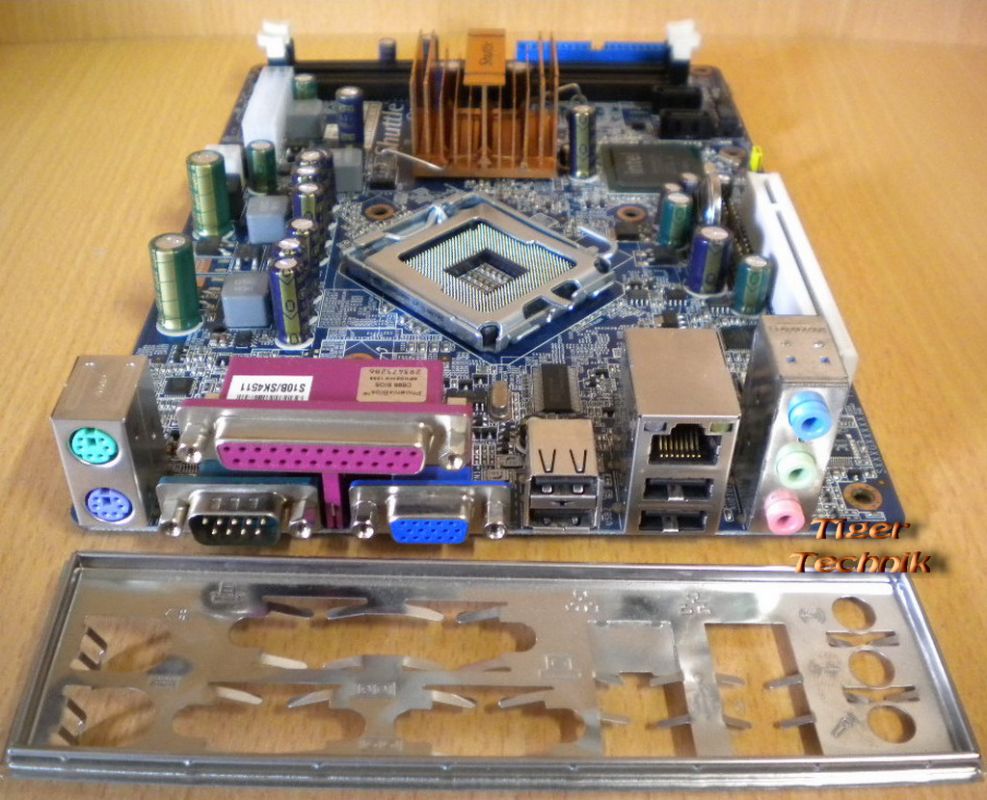

Shuttle KPC K45 Mainboard FM10(S5140) V1.0 + Blende

Sockel 775 DDR2 SATA

Technische Daten

Processor

Intel Core 2 Duo / Intel Dual-Core E2000 series / Celeron D 400 series
Support 533/800/1066 MHz FSB

Chipset

Intel 945GC + ICH7

Onboard VGA

Intel GMA 950 256bit 3D engine with a powerful 400MHz core and DirectX 9 3D hardware acceleration
Dynamic Video Memory Technology(DVMT)3.0 supports up to 224MB of Video memory

Memory

2 x 240 pin DDR2 DIMM Slots, 1GB per DIMM (Max 2GB)
Dual Channel DDR2 533/667MHz supported

Audio

Realtek ALC662 5.1 Channel High Definition audio

Ethernet

Marvell 88E8056
IEEE 802.3u 100Base-T specification compliant
10MB/s,100MB/s,1GB/s
Support Wake-On-LAN function

Storage Interface

UltraDMA100 IDE channel Master from ICH7
On-board SATA

OnBoard Connectors

2 x SATA connectors
1 x ATA100 bus master IDE connector
1 x ATX main power connector
1 x ATX 12V power connector
2 x 4pin fan connectors

Front Panel

Power-On button

Back Panel

1 x PCI slot
1 x PS/2 keyboard
1 x PS/2 Mouse
1 x Gigabit LAN port
1 x Serial port
1 x D-sub port
4 x USB 2.0 ports
1 x Front out connector
1 x Rear Surround out connector
1 x Center / Bass connector
1 x Printer port
1 x Wireless port perforation

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
