Products description

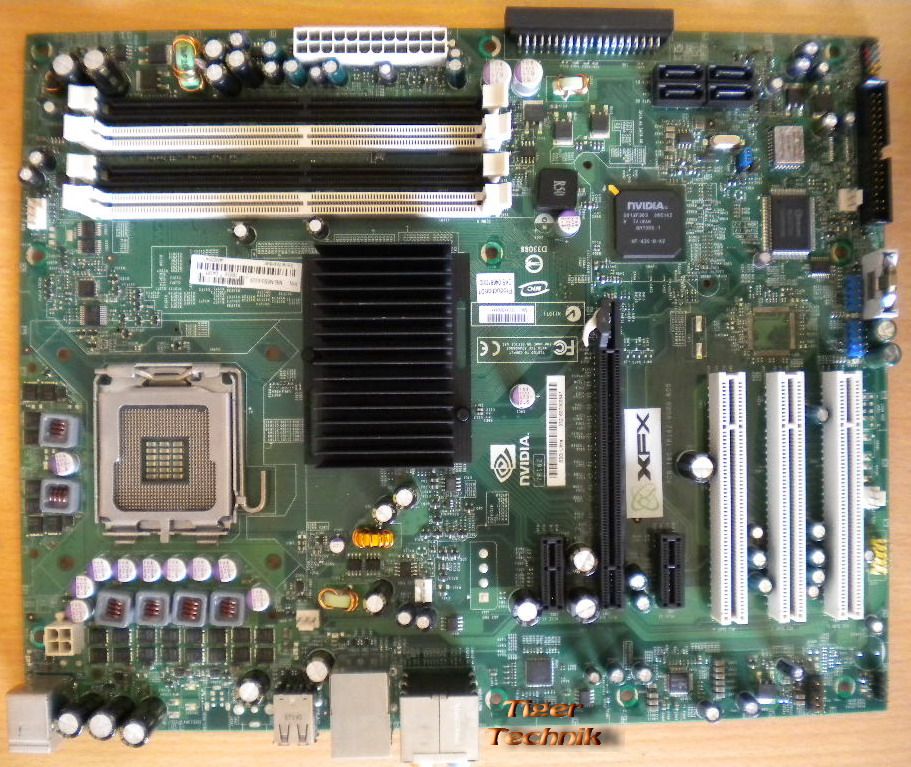

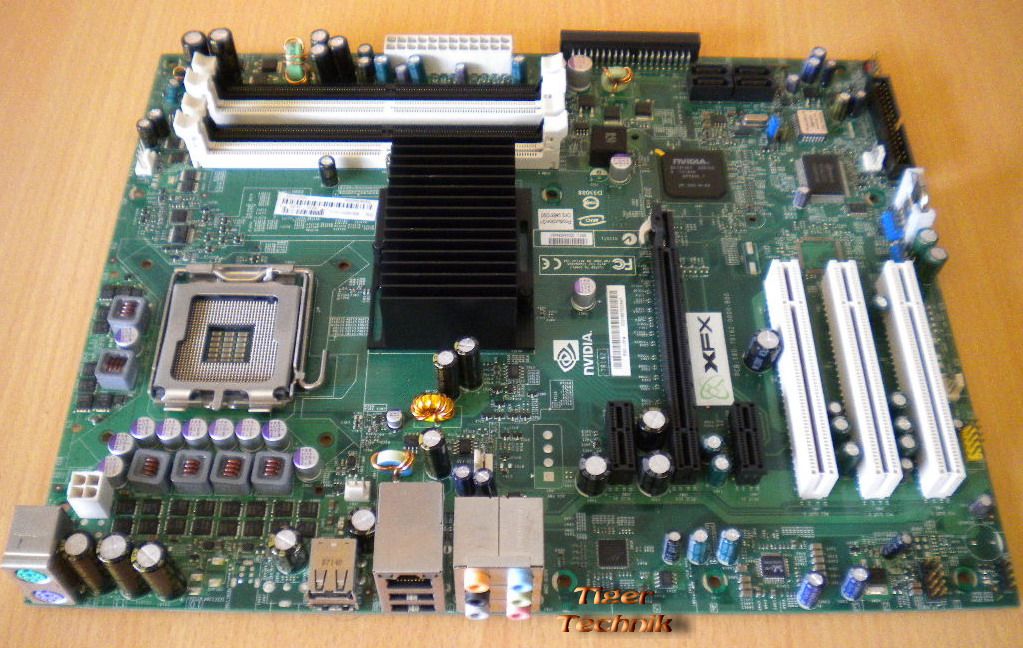

XFX 650i Ultra Mainboard MB-N650-IUL9
Size
ATX form factor of 12 inch x 9.6 inch
Microprocessor support
Intel Core 2 Extreme, Intel Core 2 Quad, Intel Core2 Dual, Pentium
Operating systems:
Supports Windows XP 32bit/64bit and Windows Vista 32bit/64bit or higher
Contains NVIDIA nForce 650i Ultra MCP and SPP
System Memory support
Supports dual channel JEDEC DDR2-800. Supports up to 8 GBs DDR2 memories.
USB 2.0 Ports
Supports hot plug
Eight USB 2.0 ports (four rear panel ports, four onboard USB headers)
Supports wake-up from S1 and S3 mode
Supports USB 2.0 protocol up to 480 Mbps transmission rate
Onboard Serial ATA II
300MBps data transfer rate
Four Serial ATA II connectors
NVIDIA MediaShield RAID with support for RAID 0, RAID 1, RAID 0+1, RAID 5, and JBOD
Supports hot plug and NCQ (Native Command Queuing )
Onboard LAN
Single LAN interface built-in onboard
Supports 10/100/1000 Mbit/sec Ethernet
Audio
Azalia High-Definition audio
Supports 8-channel audio
Supports S/PDIF output
Supports Jack-Sensing function
PCI Express x16 Support
Supports 4 GB/sec (8 GB/sec concurrent) bandwidth
Low power consumption and power management features
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4 (Suspend to disk - depends on OS), and S5 (soft - off)
Expansion Slots
Three PCI slots
Two PCI Express x1 slot
One PCI Express x16 Graphics slot
Lieferumfang
Mainboard ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
