Products description

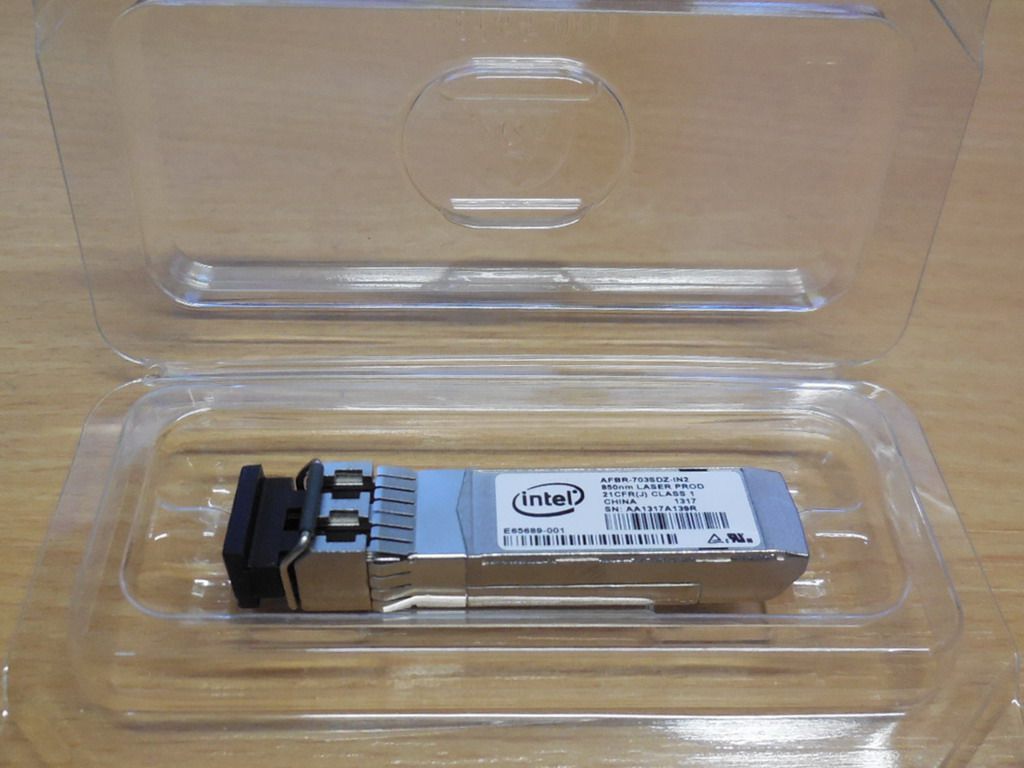

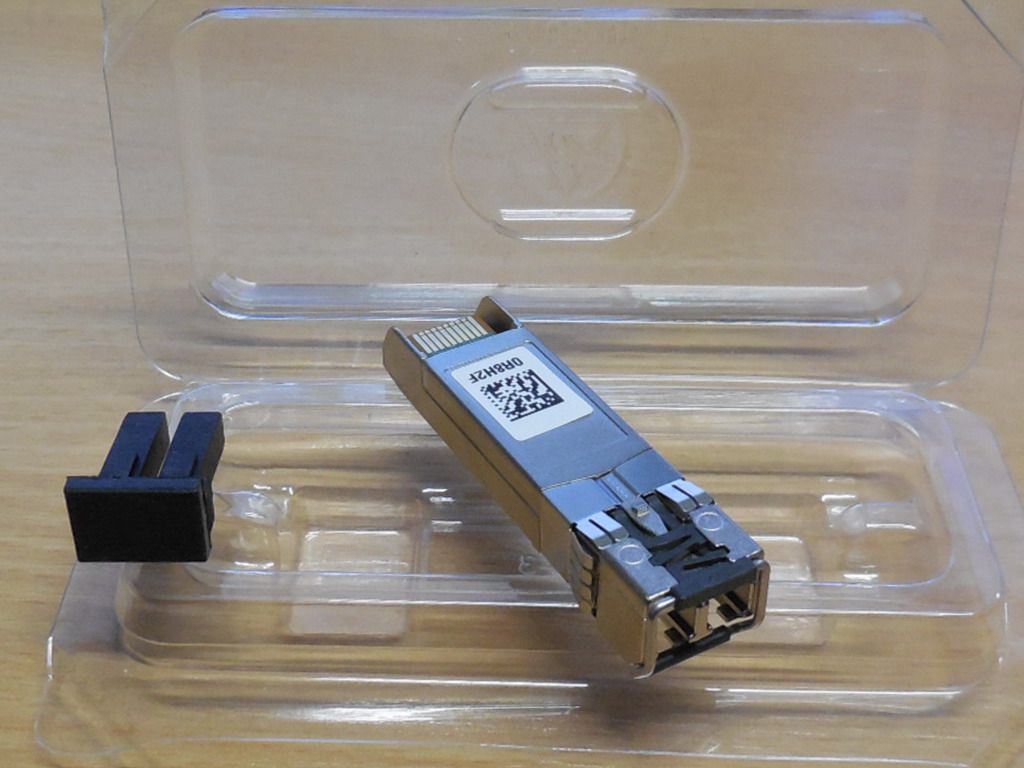

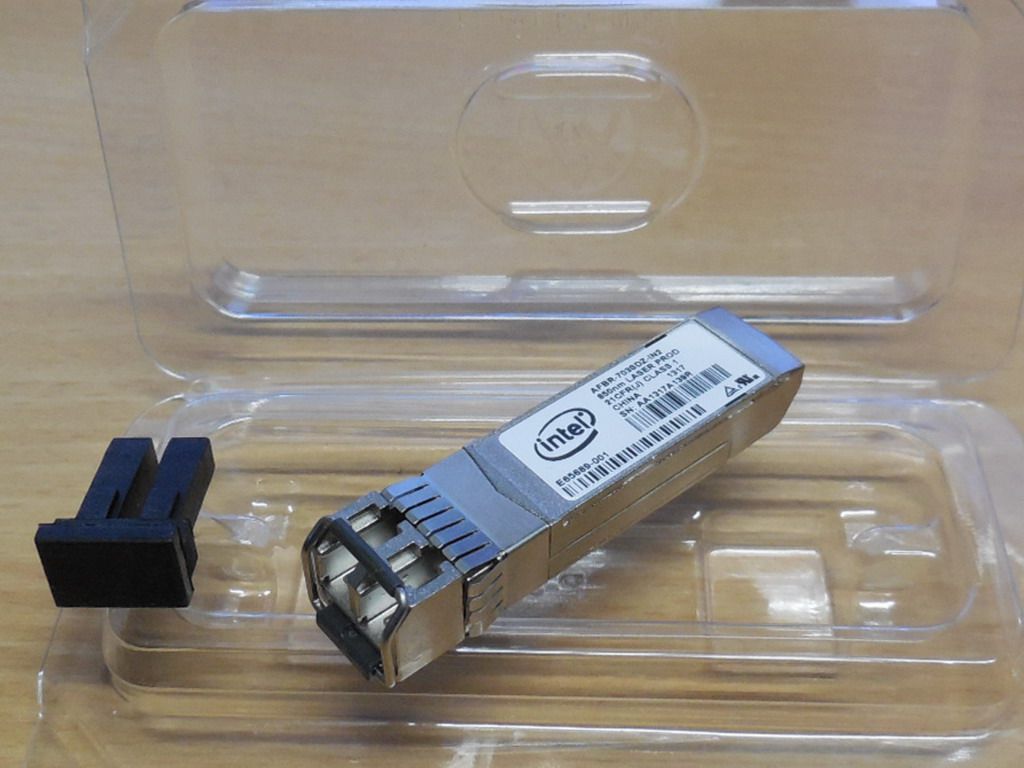

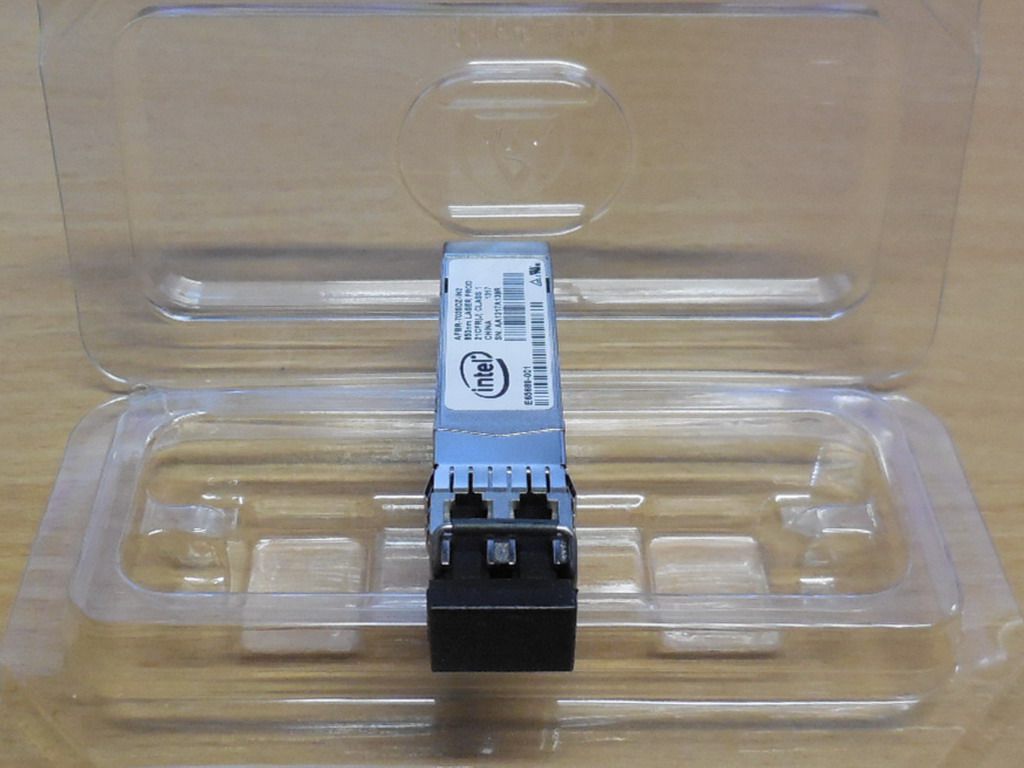

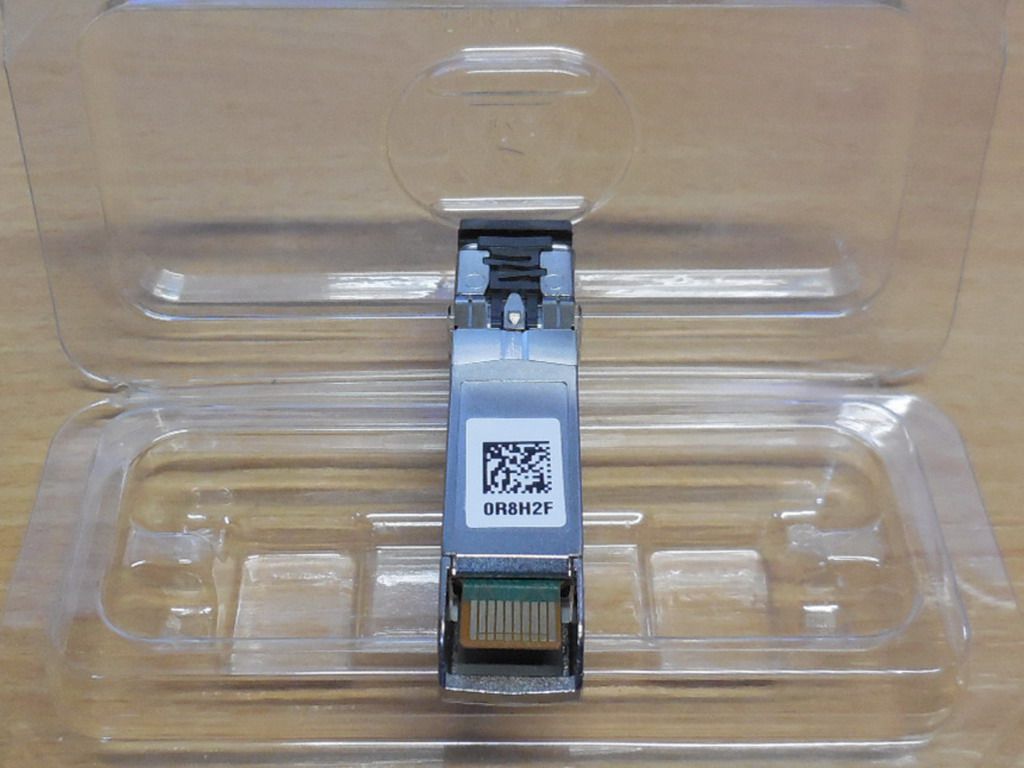

Dell R8H2F 0R8H2F Intel E65689-001 10Gb 850nm Short Wave SFP+ Transceiver Module Neu & OVP
Kurzbeschreibung
Der Dell™ SFP+ Transceiver bietet Glasfaserkonnektivität zur Vergrößerung der Netzwerkreichweite. Dieser Hot-Plug-fähige Transceiver mit SFP+ (Small Form Factor Pluggable) Spezifikation enthält einen SFP+-Anschluss. Der Dell Networking 10 Gb, SFP+ Transceiver bietet 10 Gb Konnektivität.
Technische Daten
Marke Dell
Dell P/N 0R8H2F
Hersteller Intel
Intel P/N E65689-001
Produktart Dell 10Gb Shortwave SFP+ optischer Transceiver
Formfaktor Plug-In-Modul
Datenübertragungsrate 10Gbps
Optische Wellenlänge 850 nm Short Wave
Anschlusstechnik Kabelgebunden
Verdrahtungstyp 10GBase-SR
Data Link Protocol 10 GigE
Reichweite max. 300m
Abmessungen (BxHxT) ca. 15 x 10 x 61 mm
Kompatibel zu
PowerEdge C4130; PowerEdge C4140; PowerEdge C6320; PowerEdge C6320P; PowerEdge C6420; PowerEdge FC430; PowerEdge FC630; PowerEdge FC640; PowerEdge FC830; PowerEdge M420; PowerEdge M520; PowerEdge M620; PowerEdge M640; PowerEdge M640 VRTX; PowerEdge M820; PowerEdge R200; PowerEdge R220; PowerEdge R230; PowerEdge R240; PowerEdge R300; PowerEdge R330; PowerEdge R340; PowerEdge R410; PowerEdge R415; PowerEdge R430; PowerEdge R440; PowerEdge R510; PowerEdge R515; PowerEdge R530; PowerEdge R540; PowerEdge R610; PowerEdge R620; PowerEdge R630; PowerEdge R630XL; PowerEdge R640; PowerEdge R6415; PowerEdge R710; PowerEdge R715; PowerEdge R720; Poweredge R720xd; PowerEdge R730; PowerEdge R730XD; PowerEdge R740; PowerEdge R740XD; PowerEdge R740xd2; PowerEdge R7415; PowerEdge R7425; PowerEdge R805; PowerEdge R810; PowerEdge R815; PowerEdge R820; PowerEdge R840; PowerEdge R900; PowerEdge R905; PowerEdge R910; PowerEdge R920; PowerEdge R930; PowerEdge R940; PowerEdge R940xa; PowerEdge T130; PowerEdge T140; PowerEdge T330; PowerEdge T340; PowerEdge T410; PowerEdge T430; PowerEdge T440; PowerEdge T610; PowerEdge T620; PowerEdge T630; PowerEdge T640; PowerEdge T710; PowerEdge VRTX; PowerEdge XR2; PowerVault DL2100; PowerVault DL2200; PowerVault DR4100; PowerVault NX3000; PowerVault NX3200; PowerVault NX3300; PowerVault NX400; PowerVault NX440; Precision Workstation R7910; Precision Workstation; 7910 XL
Lieferumfang

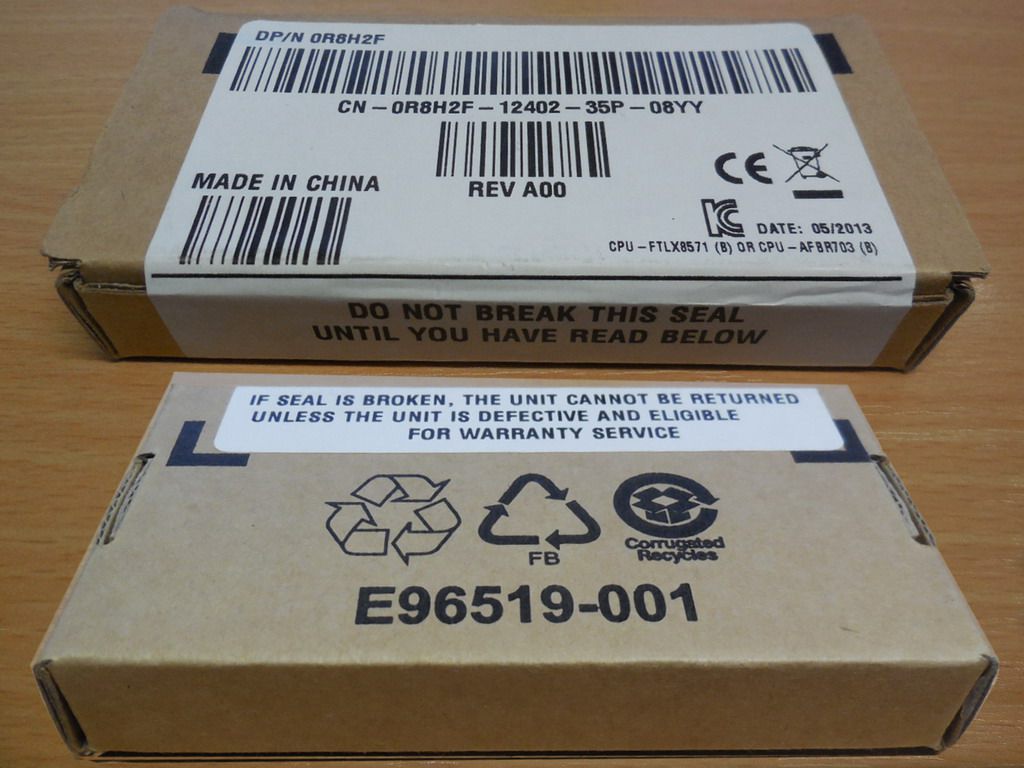

Dell SFP+ Transceiver Module * ohne weiteres Zubehör * Neu & OVP *
Abbildung ähnlich
