Products description

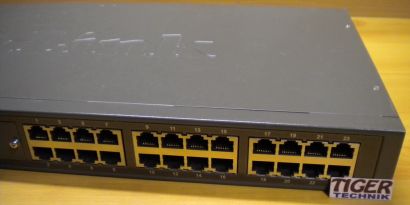

D-Link DES-1024R+ 10 100Mbps 24port
Fast Ethernet Netzwerk Switch
Technische Daten
Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3u 100BASE-FX Fast Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
Protocol
CSMA/CD
Data Transfer Rates
- Ethernet:
10Mbps (half duplex)
20Mbps (full duplex)
- Fast Ethernet:
100Mbps (half duplex)
200Mbps (full duplex)
Topology
Star
Network Cables
- 10BASE-T:
2-pair UTP Cat. 3, 4, 5 (100 m)
EIA/TIA-568 100-ohm STP (100 m)
- 100BASE-TX:
2-pair UTP Cat. 5 (100 m)
EIA/TIA-568 100-ohm STP (100 m)
- 100BASE-FX:
Multi-mode (62.5/125 um or 50/125 um fiber cabling with SC
connector)
Number of Built-in Ports
- DES-1024R+: 10/100Mbps port x 24
Media Interface Exchange
Auto-negotiation of MDI-II/MDI-X for all 10/100Mbps ports
Twisted-pair Rx Reverse Polarity
Auto-correction
LED Report
Per device:
- Power
Per 10/100Mbps port:
- 100Mbps speeds
- Link/activity
Transmission Method
Store-and-forward
MAC Address Table
4K entries per device
Packet Filtering Rates
- Ethernet: 14,880 pps per port (half-duplex)
- Fast Ethernet: 148,800 pps per port (half-duplex)
Packet Forwarding Rates
- Ethernet: 14,880 pps per port (half-duplex)
- Fast Ethernet: 148,800 pps per port (half-duplex)
RAM Buffer
256KB per 8 ports
Flow Control
- IEEE 802.3x flow control per 10/100Mbps port in full duplex
- Back pressure per 10/100Mbps port in half duplex
AC Input
100 - 240 V
AC, 50/60 Hz
Internal universal power supply
Power Consumption
39 watts (max.)
Ventilation
12V - 0.09A DC fan x 1
Operating Temperature
0 - 50 C (32 - 122 F)
Storage Temperature
-30 - 60 C (-22 - 140 F)
Humidity
5% - 95% non-condensing
Dimensions
441 x 207 x 44 mm
(17.4 x 8.15 x 1.732 inches)
19-inch rack-mount width, 1 U height
Weight
2.65 kg (5.84 lb.), 2.7 kg (with DES-102F module)
Emission (EMI)
- FCC Class A
- CE Class A
- C-Tick
- VCCI Class A
- BSMI Class A
Safety
- UL (UL1950)
- CSA (CSA950)
Lieferumfang
Switch - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
