Products description
CPU Prozessor AMD Athlon 700 MHz AMD-K7700MTR51B A
FSB200 512KB Slot A
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon |
CPU part number | AMD-K7700MTR51B A is an OEM/tray microprocessor |
Frequency | 700 MHz |
Bus speed | 200 MHz |
Clock multiplier | 7 |
Package | Card Module |
Socket | Slot A |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Pluto (Model 2) |
Manufacturing process | 0.18 micron |
Die | 102mm2 |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative code cache; 64 KB 2-way set associative data cache |
Level 2 cache size | 512 KB backside cache running at 350 MHz |
Multiprocessing | Uniprocessor |
Features | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow! |
Low power features | Halt state; Stop Grant states; Sleep state; Probe state |
Electrical / Thermal parameters | |
V core | 1.6V ± 0.1V |
Minimum/Maximum operating temperature | 0°C - 70°C |
Minimum/Typical/Maximum power dissipation | 6 Watt (Stop Grant mode) / 34 Watt / 39 Watt |
Notes on AMD Athlon 700 MHz | |
Actual bus frequency is 100 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 200 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *

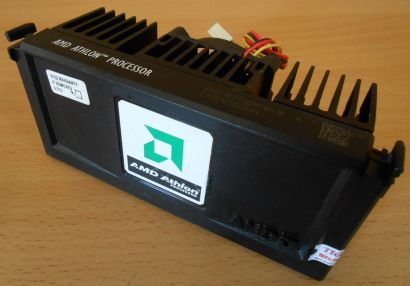

Abbildung ähnlich
