Products description

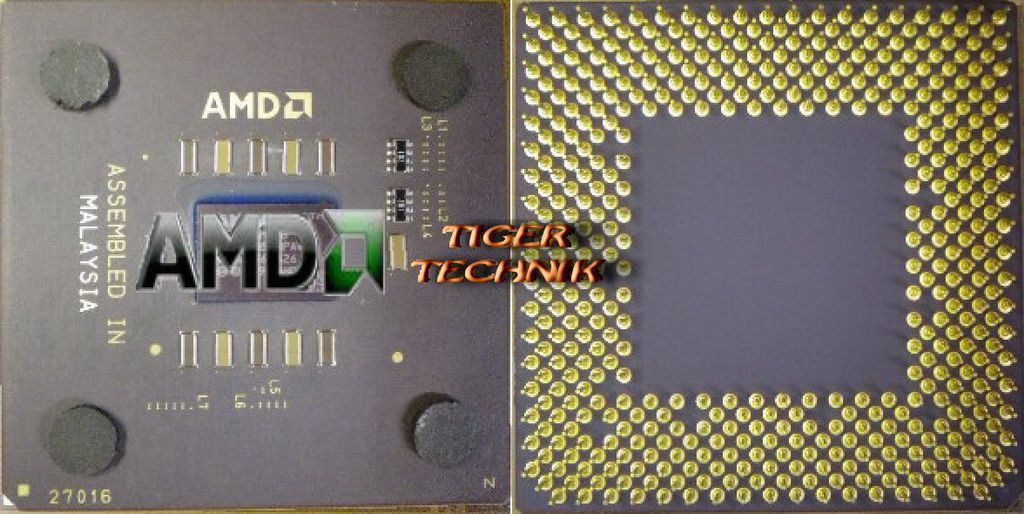

CPU Prozessor AMD Athlon 1200MHz A1200AMS3C FSB266 Sockel A 462 256KB
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon |
CPU part number | A1200AMS3C is an OEM/tray microprocessor |
Stepping codes | AVIA AXHA AXIA AXIAR AYHJA |
Frequency | 1200 MHz |
Bus speed | 266 MHz |
Clock multiplier | 9 |
Package | 453-pin staggered ceramic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package number | 27016 |
Socket | Socket A (Socket 462) |
Introduction date | 17-Oct-00 |
Price at introduction | $612 |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Thunderbird (Model 4) |
Manufacturing process | 0.18 micron; 37 million transistors |
Die | 120mm2 |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative code cache; 64 KB 2-way set associative data cache |
Level 2 cache size | Full-speed on-die 256 KB |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow! |
Low power features | Halt state, Stop Grant states, Sleep state, Probe state |
Electrical / Thermal parameters | |
V core | 1.75V ± 0.1V |
Minimum/Maximum operating temperature | 0°C - 95°C |
Minimum/Typical/Maximum power dissipation | 5 Watt (Stop Grant mode) / 58.9 Watt / 65.7 Watt |
Notes on AMD Athlon 1.2 GHz | |
Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
