Products description

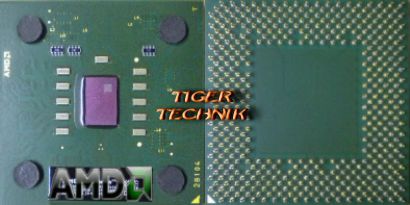

CPU Prozessor AMD Athlon XP 2600+ AXDA2600DKV3D FSB333 Sockel A 462 grün
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon XP |
Model number | 2600+ |
CPU part number | AXDA2600DKV3D is an OEM/tray microprocessor |
Stepping codes | AIUCB AIUGB AIUHB AIUXB AIXHB AIXIB |
Frequency | 2600+ (rated); 2083 MHz (real) |
Bus speed | 333 MHz |
Clock multiplier | 12.5 |
Package | 453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package numbers | 27291, 27648 |
Socket | Socket A (Socket 462) |
Price at introduction | $297 |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Thoroughbred (Model 8) |
Manufacturing process | 0.13 micron copper process |
Die | 80.89mm2 (CPUID 680); 67.35mm2 (CPUID 680 / without L2 cache) |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB code; 64 KB data |
Level 2 cache size | Full-speed on-die 256 KB |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions |
Low power features | Halt state, Stop Grant states, Sleep state, Probe state |
Electrical / Thermal parameters | |
V core | 1.65V |
Minimum/Maximum operating temperature | 0°C - 85°C |
Typical/Maximum power dissipation | 62 Watt / 68.3 Watt |
Notes on AMD Athlon XP 2600+ (333FSB, 1.65V, 256KB) | |
Actual bus frequency is 166 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 333 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
