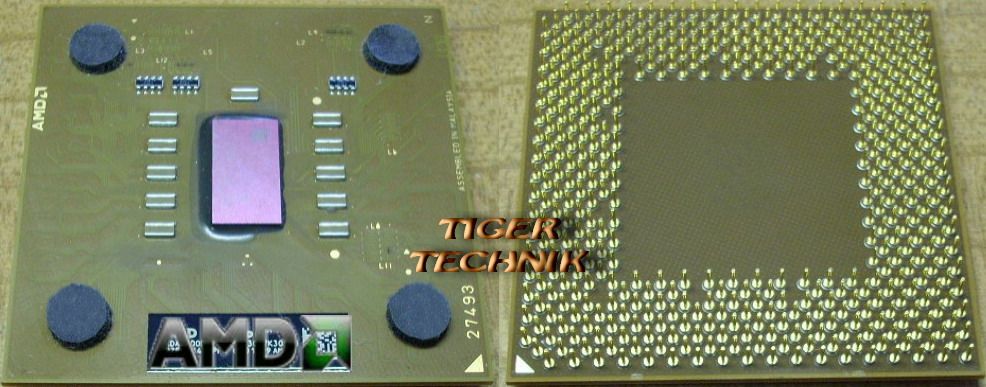

CPU Prozessor AMD Athlon XP 2800+ AXDA2800DKV4D FSB333 Sockel A/462 braun *c143

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon XP

Model number  ?

2800+

CPU part number

• AXDA2800DKV4D is an OEM/tray microprocessor

Stepping codes

ADYHA   AQUCA   AQXCA   AQXDA   AQXEA   AQXFA   AQYHA   AQZEA   AQZFA   IQYHA   KQYHA

Frequency  ?

2800+ (rated)
2083 MHz (real)

Bus speed  ?

333 MHz

Clock multiplier  ?

12.5

Package

453-pin organic PGA
1.95" x 1.95" (4.95 cm x 4.95 cm)

AMD Package numbers

27488, 27493, 28103

Socket

Socket A (Socket 462)

Architecture / Microarchitecture

Microarchitecture

K7

Processor core  ?

Barton (Model 10)

Manufacturing process

0.13 micron copper process

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size  ?

64 KB code
64 KB data

Level 2 cache size  ?

Full-speed exclusive on-die 512 KB

Multiprocessing

Uniprocessor

Features

• MMX instructions
• Extensions to MMX
• 3DNow! technology
• Extensions to 3DNow!
• SSE / Streaming SIMD Extensions

Low power features

• Halt state
• Stop Grant states
• Sleep state  ?
• Probe state

Integrated peripherals / components

Integrated graphics

None

Electrical / Thermal parameters

V core  ?

1.65V

Minimum/Maximum operating temperature  ?

0°C - 85°C

Typical/Maximum power dissipation

53.7 Watt / 68.3 Watt

Notes on AMD Athlon XP 2800+ (333FSB, 512KB)

• Actual bus frequency is 166 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 333 MHz.
