Products description

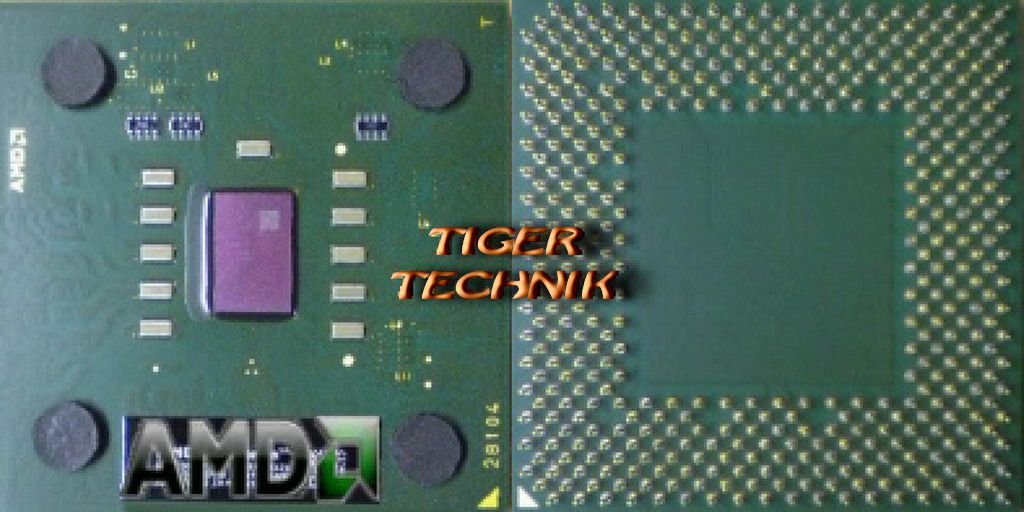

CPU Prozessor AMD Athlon XP 3000+ AXDA3000DKV4D FSB333 Sockel A 462 grün
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Athlon XP |
Model number | 3000+ |
CPU part number | AXDA3000DKV4D is an OEM/tray microprocessor |
Stepping codes | ADYHA AQUCA AQXCA AQXDA AQXEA AQXFA AQYFA AQYHA AQZEA AQZFA IQYHA KQYHA |
Frequency | 3000+ (rated); 2167 MHz (real) |
Bus speed | 333 MHz |
Clock multiplier | 13 |
Package | 453-pin organic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package numbers | 27488, 27493, 28103 |
Socket | Socket A (Socket 462) |
Introduction date | 10-Feb-03 |
Price at introduction | $588 |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Barton (Model 10) |
Core stepping | A2 |
CPUID | 6A0 |
Manufacturing process | 0.13 micron copper process |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache |
Level 2 cache size | Full-speed exclusive on-die 512 KB 16-way set associative cache |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions |
Low power features | Halt state, Stop Grant states, Sleep state, Probe state |
Electrical / Thermal parameters | |
V core | 1.65V |
Minimum/Maximum operating temperature | 0°C - 85°C |
Typical/Maximum power dissipation | 58.4 Watt / 74.3 Watt |
Notes on AMD Athlon XP 3000+ (333FSB) | |
Actual bus frequency is 166 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 333 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
