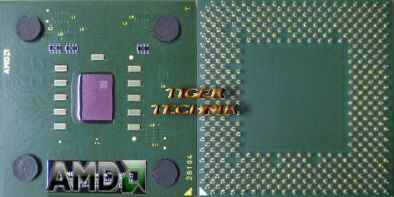

CPU Prozessor AMD Athlon XP-M 2500+ AXMH2500FQQ4C

AMD Athlon XP-M 2500+ AXMH2500FQQ4C

General information
Type	CPU / Microprocessor
Market segment	Mobile
Family	AMD Athlon XP-M
Model number ?	2500+
CPU part number	AXMH2500FQQ4C is an OEM/tray microprocessor
Stepping codes	AQUCA AQXEA AQYHA AQZFA IQYFA IQYHA
Frequency ?	2500+ (rated) 1867 MHz (real)
Bus speed ?	266 MHz
Clock multiplier ?	14
Package	453-pin organic PGA 1.95" x 1.95" (4.95 cm x 4.95 cm)
AMD Package numbers	27488, 27493
Socket	Socket A (Socket 462)
Architecture / Microarchitecture
Microarchitecture	K7
Processor core ?	Barton
Manufacturing process	0.13 micron
Data width	32 bit
The number of CPU cores	1
The number of threads	1
Floating Point Unit	Integrated
Level 1 cache size ?	64 KB code 64 KB data
Level 2 cache size ?	512 KB
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions
Low power features	PowerNow!
Integrated peripherals / components
Integrated graphics	None
Electrical / Thermal parameters
V core ?	1.45V
Minimum/Maximum operating temperature ?	0°C - 100°C
Maximum power dissipation ?	45 Watt
Notes on AMD Athlon XP-M 2500+ (45W)
Actual bus frequency is 133 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 266 MHz.
