Products description

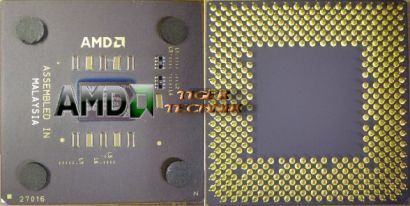

CPU Prozessor AMD Duron 1200MHz DHD1200AMT1B Sockel A 462 FSB200 64KB
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Duron |
CPU part number | DHD1200AMT1B is an OEM/tray microprocessor |
Stepping codes | AHLCA AHLDA |
Frequency | 1200 MHz |
Bus speed | 200 MHz |
Clock multiplier | 12 |
Package | 453-pin staggered ceramic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package number | 27067 |
Socket | Socket A (Socket 462) |
Introduction date | 15-Nov-01 |
Price at introduction | $103 |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Morgan (Model 7) |
Manufacturing process | 0.18 micron; 25.2 million transistors |
Die | 105.68mm2; 99.61mm2 (without L2 cache) |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB 2-way set associative instruction cache; 64 KB 2-way set associative data cache |
Level 2 cache size | On-die 64 KB 16-way set associative exclusive cache |
Multiprocessing | Uniprocessor |
Extensions and Technologies | MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!; SSE / Streaming SIMD Extensions |
Low power features | Halt state; Stop Grant states; Sleep state; Probe state |
Integrated peripherals / components | |
Integrated graphics | None |
Electrical / Thermal parameters | |
V core | 1.75V |
Minimum/Maximum operating temperature | 0°C - 90°C |
Minimum/Typical/Maximum power dissipation | 2 Watt (Sleep state) / 50.3 Watt / 54.7 Watt |
Notes on AMD Duron 1.2 GHz | |
Actual bus frequency is 100 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 200 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
