Products description
CPU Prozessor AMD Duron 1GHz 1000MHz DHD1000AMT1B Sockel A 462 FSB200 64KB
Technische Daten | |
Type | CPU / Microprocessor |
Market segment | Desktop |
Family | AMD Duron |
CPU part number | DHD1000AMT1B is an OEM/tray microprocessor |
Stepping codes | AHHAA AHLCA AHLDA AHNA ARHAA DHLCA |
Frequency | 1000 MHz |
Bus speed | 200 MHz |
Clock multiplier | 10 |
Package | 453-pin staggered ceramic PGA; 1.95" x 1.95" (4.95 cm x 4.95 cm) |
AMD Package number | 27067 |
Socket | Socket A (Socket 462) |
Introduction date | 20-Aug-01 |
Price at introduction | $89 |
Architecture / Microarchitecture | |
Microarchitecture | K7 |
Processor core | Morgan (Model 7) |
CPUID | 670 |
Manufacturing process | 0.18 micron; 25.2 million transistors |
Die | 105.68mm2; 99.61mm2 (without L2 cache) |
Data width | 32 bit |
The number of CPU cores | 1 |
The number of threads | 1 |
Floating Point Unit | Integrated |
Level 1 cache size | 64 KB code; 64 KB data |
Level 2 cache size | on-die 64 KB exclusive cache |
Multiprocessing | Uniprocessor |
Features | MMX instructions, Extensions to MMX, 3DNow! technology, Extensions to 3DNow!, SSE / Streaming SIMD Extensions |
Low power features | Halt state, Stop Grant states, Sleep state, Probe state |
Electrical / Thermal parameters | |
V core | 1.75V |
Minimum/Maximum operating temperature | 0°C - 90°C |
Minimum/Typical/Maximum power dissipation | 2 Watt (Sleep state) / 42.4 Watt / 46.1 Watt |
Notes on AMD Duron 1 GHz | |
Actual bus frequency is 100 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 200 MHz. | |
Lieferumfang
CPU - ohne weiteres Zubehör * gebraucht *

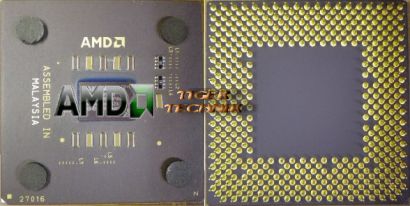

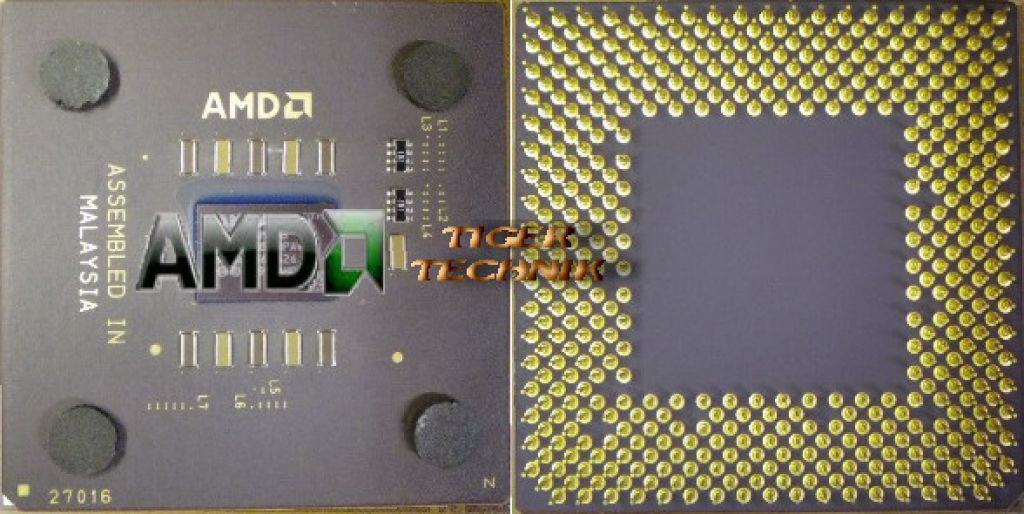

Abbildung ähnlich
