CPU Prozessor AMD Duron 600MHz D600AST1B Sockel 46

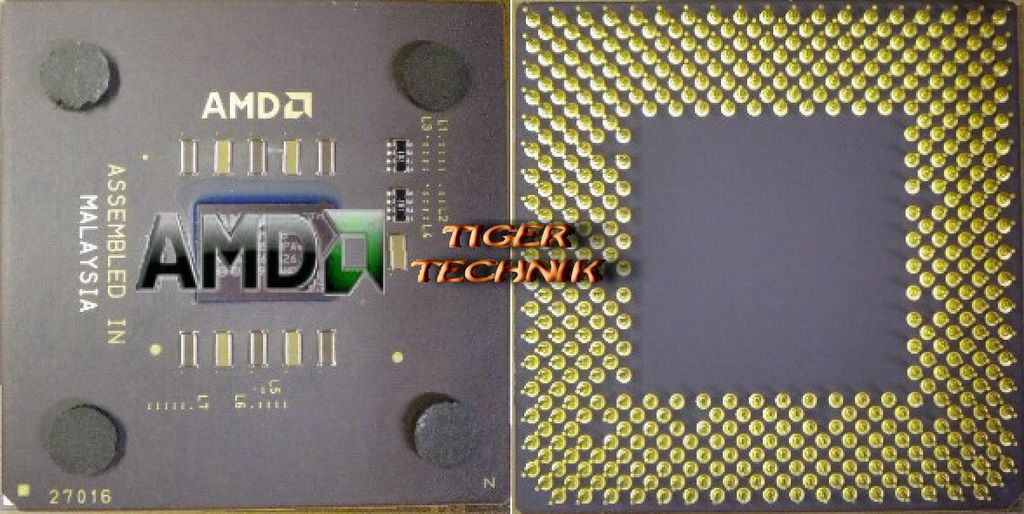

AMD Duron 600MHz D600AST1B

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD Duron
CPU part number	D600AST1B is an OEM/tray microprocessor
Stepping codes	AKAA AKBA
Frequency ?	600 MHz
Bus speed ?	200 MHz
Clock multiplier ?	6
Package	453-pin staggered ceramic PGA 1.95" x 1.95" (4.95 cm x 4.95 cm)
AMD Package number	26822
Socket	Socket A (Socket 462)
Introduction date	19-Jun-00
Price at introduction	$112
Architecture / Microarchitecture
Microarchitecture	K7
Processor core ?	Spitfire (Model 3)
CPUID	630
Manufacturing process	0.18 micron 25 million transistors
Data width	32 bit
The number of CPU cores	1
The number of threads	1
Floating Point Unit	Integrated
Level 1 cache size ?	64 KB 2-way set associative instruction cache 64 KB 2-way set associative data cache
Level 2 cache size ?	On-die 64 KB exclusive cache
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow!
Low power features	Halt state Stop Grant states Sleep state ? Probe state
Integrated peripherals / components
Integrated graphics	None
Electrical / Thermal parameters
V core ?	1.5V
Minimum/Maximum operating temperature ?	0°C - 90°C
Notes on AMD Duron 600 MHz
Actual bus frequency is 100 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 200 MHz.
